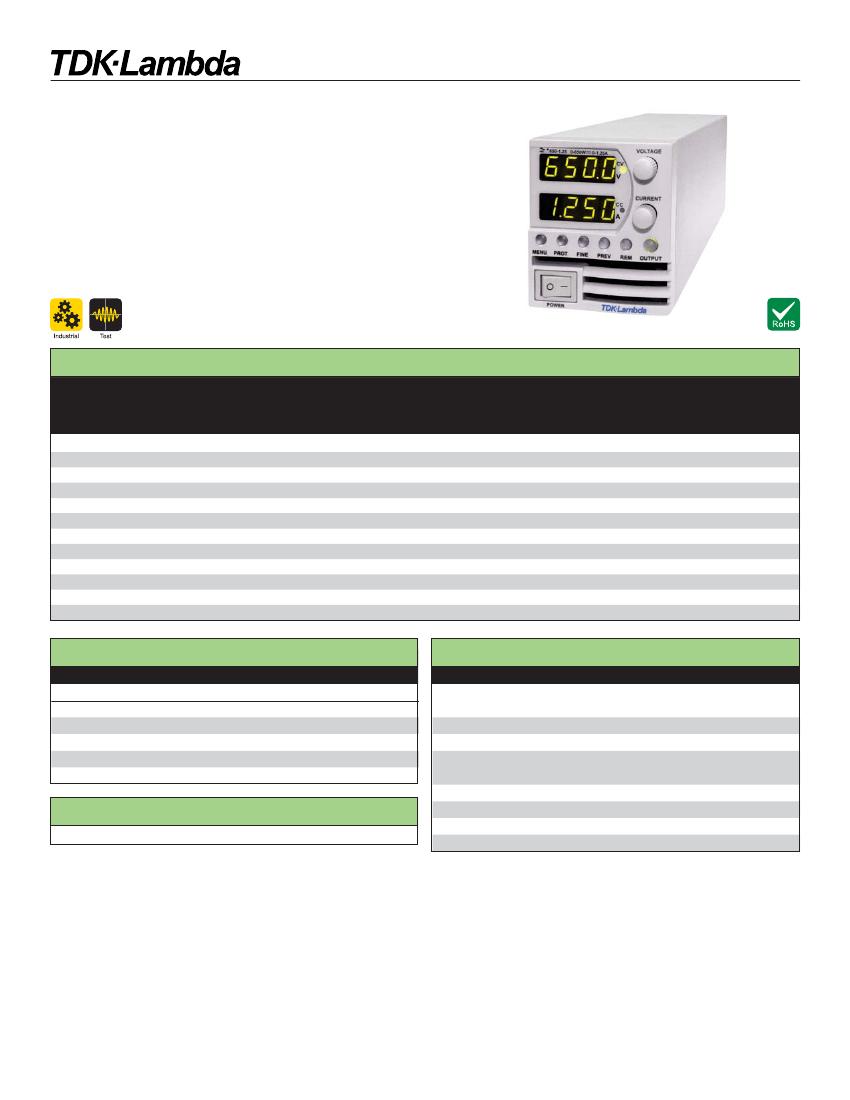

Z+ High Voltage Series
200 to 800W Programmable Power Supplies
Features
2U high
Built-in USB, RS-232 & RS-485 Interface
Optional LAN, GPIB & Isolated Analog Programming
Bench or Rack Mount
Constant Current or Voltage Modes
Five Year Warranty
Key Market Segments & Applications
Model Selector
Voltage
Adjust
Model
Z160-1.3-U
Z160-2.6-U
Z160-4-U
Z160-5-U
Z320-0.65-U
Z320-1.3-U
Z320-2-U
Z320-2.5-U
Z650-0.32-U
Z650-0.64-U
Z650-1-U
Z650-1.25-U
Range
0 - 160
0 - 160
0 - 160
0 - 160
0 - 320
0 - 320
0 - 320
0 - 320
0 - 650
0 - 650
0 - 650
0 - 650
Current
Adjust
Range
0 - 1.3
0 - 2.6
0-4
0-5
0 - 0.65
0 - 1.3
0-2
0 - 2.5
0 - 0.32
0 - 0.64
0-1
0 - 1.25
Max
Power
(W)
208
416
640
800
208
416
640
800
208
416
650
812
Ripple
5Hz-1MHz
(mV)
10
10
10
10
25
25
30
30
60
60
60
60
Noise
20MHz BW
(mV)
100
100
100
100
150
150
150
150
250
250
250
250
Ripple
5Hz-1MHz
(mA)
1.2
1.5
2.0
2.0
0.8
1.0
1.5
1.5
0.5
0.6
1.0
1.0
Efficiency
%
(100-200VAC)
79 / 81
84 / 86
86.5 / 88.5
86.5 / 88.5
79 / 81
84 / 86
87 / 88.5
86.5 / 89
79 / 81
84 / 86
86.5 / 88.5
87 / 89
Factory Installed Options
Option Code
IEC320 cable USA plug (Included in model number above)
-U
Only one of the options below can be included:
GPIB Interface*
IEEE
Voltage Programming Isolated Analog Interface*
IS510
Current Programming Isolated Analog Interface*
LAN Interface (Complies with “LXI” Class C)
IS420
LAN
Accessories
Part Number
19” Rack Housing
(Accepts four 105mm width units or six 70mm width units)
Blanking Panel for 19” Rack (70mm)
Blanking Panel for 19” Rack (105mm)
Dual/Triple Housing
(Accepts two 105mm case units or three 70mm case units)
Serial Link Cable (One is included with each power supply)
Communication Cable RS485
Communication Cable RS232
North American Line Cord (One included with -U suffix)
Z-NL100
Z-BP
Z-WBP
Z-NL200
Z-RJ45
Z-485-9
Z-232-9
Z-U
Part Number Example
Z160-1.3-LAN-U
*Requires wide body (105mm) case style
1-800-526-2324 • www.us.tdk-lambda.com/lp/
117
Disclaimer: us.tdk-lambda.com/lp/legal.htm
Z+ Series
Specifications (See brochure on website for full detailed specifications)
Model
Z160
Z320
Z650
Load Regulation
CV
0.01% of rated voltage over 0 - 100% load change
Line Regulation
CV
0.01% of rated voltage over 0 - 100% input change
Recovery Time (1)
CV
2ms
Temperature Coefficient
CV
30ppm/°C following 30 minute warm up
Temperature Stability
CV
0.02% of rated voltage over 8 hours following 30 minute warm up time
Warm up Drift (2)
CV
<0.05% of rated voltage of rated output voltage
Up programming response time
(10-90% or 90-10% of Vmax)
CV
80ms
150ms
150ms
Down programming resp time (CV)
(10-90% or 90-10% of Vmax)
Full load
100ms
150ms
150ms
Down programming resp time (CV)
(90-10% of Vmax)
Zero load
2ms
2.5ms
3ms
Load Regulation
CC
0.09% of rated current over 0 - 100% Vout change
Load Regulation thermal drift
CC
< 0.05% of rated current over 30 minutes after load change
Line Regulation
CC
0.02% of rated current over a 85 - 132 or 170 - 265VAC line change
Temperature Coefficient
CC
100ppm/°C of rated current after 30 minute warm up time
Temperature Stability
CC
0.05% of rated current over 8 hours following 30 minute warm up time
Warm up Drift(2)
CC
<±0.1% of rated current
Vout & Iout programming & readback resolution
Digitally
< 0.012% of rated voltage/current
Vout & Iout programming & readback accuracy
Digitally
0.05% of rated voltage + 0.05% of actual, 0.2% of rated current
Voltage & Current Programming
Analog
By either Voltage (0-5V or 0-10V) or Resistance (0-5k or 0-10k)
Voltage & Current Monitoring
Analog
0-5V or 0-10V Voltage (user selectable), ±1% accuracy
Overvoltage Shutdown (user programmable)
V
5 - 176
5 - 353
5 - 717
Overtemperature Protection
-
User selectable - latched or non-latching
Display - Voltage
-
4 digits. Accuracy 0.5% of rated voltage or current ± 1 count
Remote On/Off
-
By applied voltage or dry contact relay (user selectable logic)
Output Good
-
Open Collector, Low on fail
Remote Sense Compensation (per wire)
V
5
5
5
Communication Interface
-
RS232, RS485 & USB standard, IEEE488 (GPIB) & LAN optional
Series Operation
-
Up to two identical units (with external diodes)
Parallel Operation
-
Up to six units in master-slave configuration
Input Voltage / Frequency
-
85-265VAC, 47-63Hz
Inrush Current
-
< 25A
Hold Up Time (Typical)
ms
16ms
Power Factor Correction
-
Complies with EN61000-3-2 Class A (0.99 typ)
Operating Temperature
°C
0 - 50°C
Storage Temperature
°C
-20 to +85°C
Humidity (non condensing)
%RH
Operating: 20 - 90%RH, Storage 10 - 95%RH
Cooling
-
Internal temperature controlled fan
Withstand Voltage
-
I/P to GND 2kVAC, I/P to O/P 3kVAC, O/P to GND 1380VDC 1 min
Insulation Resistance
-
>100M at 25°C & 70%RH
Vibration (non operating)
-
IEC60068-2-64
Shock
-
<20G, half sine, 11ms. IEC60068-2-27
Safety Agency Certifications
-
UL61010-1, EN61010-1, IEC61010 (Designed to meet UL/EN60950-1)
Immunity
-
IEC61326 (Designed to meet EN55022 / EN55024)
Conducted EMI
-
IEC/EN61326-1 Industrial location B, FCC part 15-B, VCCI-B
Radiated EMI
-
IEC/EN61326-1 Industrial location A, FCC part 15-A, VCCI-A
Size (H x W x D) (Excluding handles and busbars)
mm
Standard body 83 x 70 x 350mm; Wide Body 83 x 105 x 350mm
Weight
kg
Standard body 1.9kg; Wide Body 2.4kg
Warranty
yrs
Five Years
Notes:
(1) Recovery to within 0.5% of rated voltage after a load
change of 10-90% (Output current 10-100% of Imax)
(2) Over 30 minute warm up time after power on
For Additional Information, please visit
us.tdk-lambda.com/lp/products/zplus-series.htm
