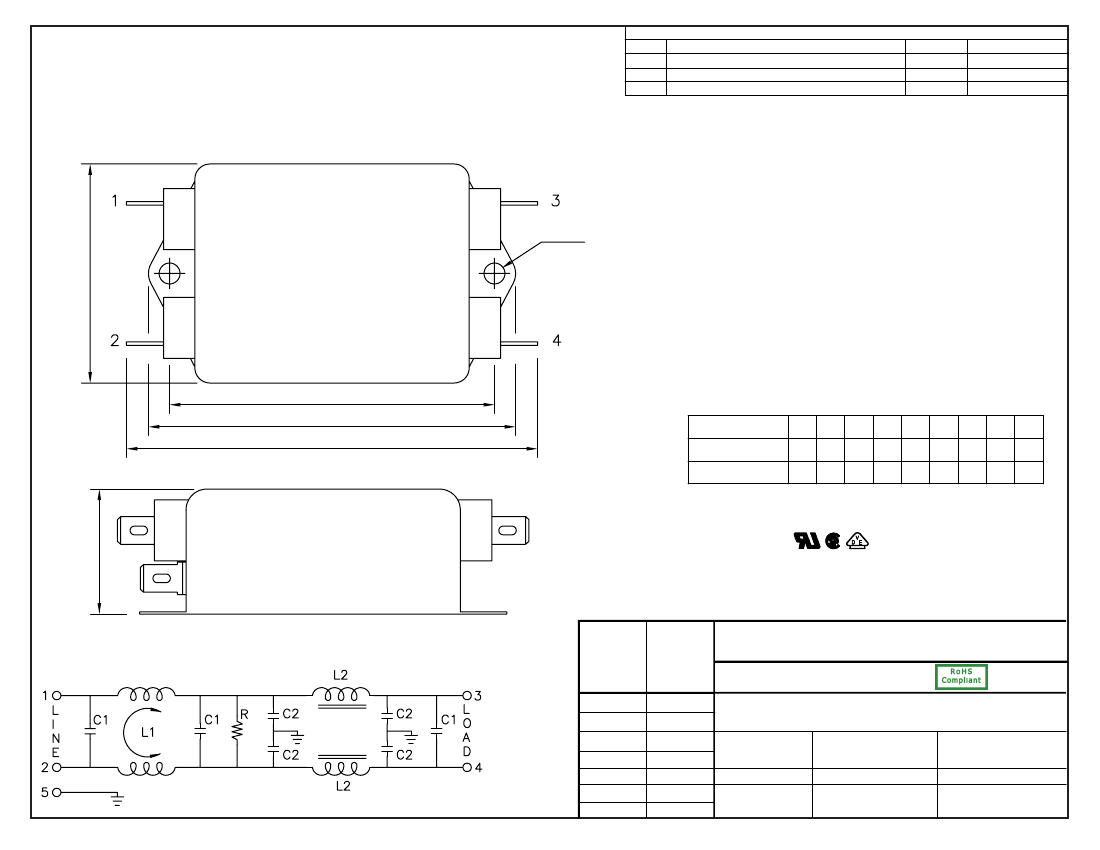

1. PHYSICAL DIMENSIONS
REVISION
REV.
B
C
DESCRIPTION
RoHS Compliancy
Updated Specifications
DATE
06-01-06
10-16-08
APPROVED
DP
LY
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
1-2.
CURRENT RATING
A. @ 115 VAC........................................6 A RMS MAX
B. @ 250 VAC........................................6 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.50 mA MAX
B. @ 250 VAC 50Hz.............................1.00 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
5
0
.05
18
10
.10
20
20
.15
25
25
.50
30
35
1.0
45
50
5.0
55
50
10
55
50
30
45
45
Ø0.188
2.06MAX
1-3.
1-4.
1-5.
1-6.
2.94 ± 0.02
3.34MAX
3.75MAX
FREQ. MHz
COM. MODE dB
DIF. MODE dB
1-7.
OPERATING TEMPERATURE.................-25° TO +100° C
SAFETY:
RoHS COMPLIANT
1.54MAX
1-8.
1-9.
2. ELECTRICAL SCHEMATIC
L1: 1.7mH
L2: 70.0uH
C1: 0.22uF
C2: 3300pF
R: 330KΩ
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
850-06/002
EMI FILTER
UNIT: in
REV. C
Approved / Date
JJH / 02-11-03
Drawn / Date
B.Zhang
02-11-03
Checked / Date
02-11-03
