UMIL25

Description
25 Watts, 28 Volts, Class AB Defcom 225 - 400 MHz
CategoryDiscrete semiconductor    The transistor
File Size476KB,4 Pages
ManufacturerADPOW
Websitehttp://www.advancedpower.com/
Download Datasheet Parametric View All

UMIL25 Online Shopping

Suppliers Part Number Price MOQ In stock
UMIL25 - - View Buy Now

UMIL25 Overview

25 Watts, 28 Volts, Class AB Defcom 225 - 400 MHz

UMIL25 Parametric

Parameter NameAttribute value
MakerADPOW
package instructionFLANGE MOUNT, O-CXFM-F6
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresHIGH RELIABILITY
Shell connectionEMITTER
Maximum collector current (IC)3 A
Collector-based maximum capacity27 pF
Collector-emitter maximum voltage33 V
ConfigurationSINGLE
highest frequency bandULTRA HIGH FREQUENCY BAND
JESD-30 codeO-CXFM-F6
Number of components1
Number of terminals6
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeROUND
Package formFLANGE MOUNT
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountYES
Terminal formFLAT
Terminal locationUNSPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
UMIL 25
25 Watts, 28 Volts, Class AB
Defcom 225 - 400
MHz
GENERAL DESCRIPTION
The UMIL 25 is an input matched COMMON EMITTER broadband
transistor specifically intended for use in the 225-400 MHz frequency
band. It may be operated in Class AB or C. Gold metallization and
silicon diffused resistors ensure ruggedness and high reliability.

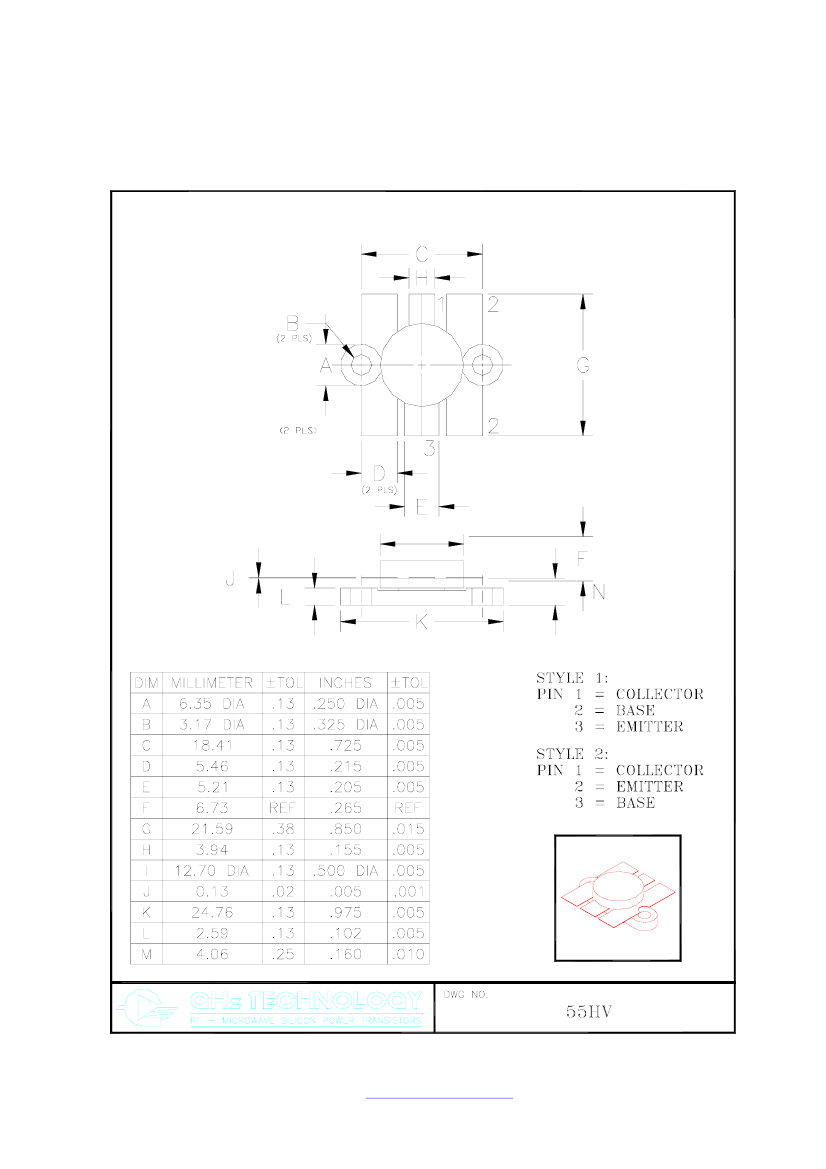

CASE OUTLINE
55HV, Style 2
ABSOLUTE MAXIMUM RATINGS
Maximum Power Dissipation @ 25
o
C
70 Watts
Maximum Voltage and Current
BVces
BVebo
Ic
Collector to Emitter Voltage
Emitter to Base Voltage
Collector Current
60 Volts
4.0 Volts
3A
- 65 to +150
o
C
+200
o
C
Maximum Temperatures
Storage Temperature
Operating Junction Temperature
ELECTRICAL CHARACTERISTICS @ 25
O
C
SYMBOL
P
OUT
P
IN
P
G
η
c
VSWR
BV
EBO
BV
CES
BV
CEO
h
FE
θjc
1
Cob
I
EBO
I
CBO
CHARACTERISTICS
Power Output
Power Input
Power Gain
Collector Efficiency
Load Mismatch Tolerance
1
Emitter to Base Breakdown
Collector to Emitter Breakdown
Collector to Emitter Breakdown
DC - Current Gain
Thermal Resistance
Output Capacitance
Emitter to Base Leakage
Collector to Base Leakage
TEST CONDITIONS
F = 400 MHz
V
cc
= 28 Volts
MIN
25
3.2
8.9
10
50
5:1
Ie = 5 mA
Ic = 50 mA
Ie = 50 mA
Ic = 0.5 A, Vce = 5 V
Vcb = 28 V, F = 1 MHz
Veb = 2 V
Vcb = 20 V
4.0
65
33
10
22
2.5
27
2
2
Volts
Volts
Volts
o
TYP
MAX
UNITS
W
W
dB
%
C/W
pF
mA
mA
Rev. A – Apr 2004
Advanced Power Technology reserves the right to change, without notice, the specifications and information contained
herein. Visit our web site at
www.advancedpower.com
or contact our factory direct.
