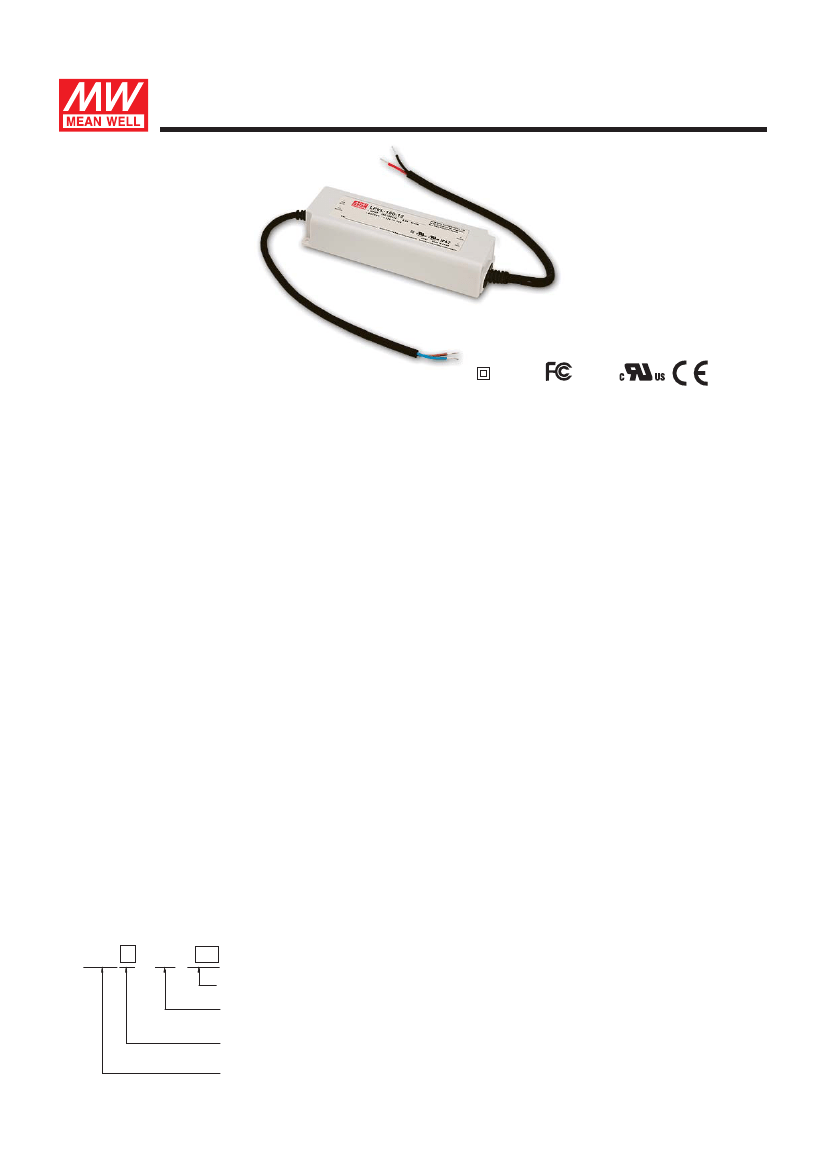

150W Single Output Switching Power Supply
L P V- 1 5 0
series
IP67
■
Features
Constant voltage design
90~132VAC input for LPVL-150
180~305VAC input for LPV-150
Fully encapsulated with IP67 level (Note.8)
Class
Ⅱ
power unit, no FG
Protections: Short circuit/Overload/Over voltage/
Over temperature
Fully isolated plastic case
Fanless design, cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Listed in UL Sign Component Manual (SAM)
Type HL for use in class I, Division 2 hazardous (Classified)
location luminaires for LPVL-150
2 years warranty
(for L type only)
(for Blank type only)
■
Applications
LED channel letters
Indoor LED lighting
LED decorative lighting
■
Description
LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly work for
LED lighting and LED moving sign applications. As a class II power unit, these two series are housed
with the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fit
the use at dry, damp and wet locations. Both series are constant voltage mode design that various
models with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V are
provided for LPVL-150.
■
Model Encoding
LPV L - 150 - 12
Output voltage
Output wattage
Blank: AC
{
L:AC inputinput range 180~305VAC
range 90~132VAC
Series name
File Name:LPV-150-SPEC 2015-09-01
150W Single Output Switching Power Supply
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
LPV
12V
10A
0 ~ 10A
-150-12
LPV-150-15
15V
8A
0 ~ 8A
120W
200mVp-p
LPV
24V
6.3A
0 ~ 6.3A
151.2W
200mVp-p
-150-24
L P V- 1 5 0
LPV-150-36
36V
4.2A
0 ~ 4.2A
151.2W
200mVp-p
48V
3.2A
0 ~ 3.2A
153.6W
200mVp-p
series
LPV-150-48
OUTPUT
120W
RIPPLE & NOISE (max.)
Note.2
200mVp-p
VOLTAGE TOLERANCE
Note.3
±5.0%
±1.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT Blank type
(Typ.)
L type
±2.0%
Note.6
LPV-150: 500ms, 50ms / 230VAC
500ms, 50ms / 277VAC;
LPVL-150: 1500ms, 50ms / 115VAC
LPVL-150: 10ms/115VAC at full load
LPV-150: 18ms/230VAC
47 ~ 63Hz
87%
20ms/277VAC at full load;
Note.4
LPV-150: 180 ~ 305VAC 254 ~ 431VDC;
LPVL-150: 90~132VAC 254 ~ 370VDC
89%
89%
90%
88%
LPV-150: 1.7A/230VAC 1.5A/277VAC;
LPVL-150: 3.0A/115VAC
COLD START 60A(twidth=900
μ
s measured at 50% Ipeak) at 230VAC
COLD START 75A(twidth=900
μ
s measured at 50% Ipeak) at 115VAC
INPUT
MAX. No. of PSUs Blank type
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
on 16A CIRCUIT
BREAKER
1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC
L type
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY
STANDARDS
LPV-150: 0.25mA / 240VAC
LPVL-150:0.25mA / 120VAC
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
13.5 ~ 18V
40 ~ 49V
27 ~ 35V
17 ~ 25V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-25 ~ +65
℃
(Refer to "Derating Curve")
20 ~ 90% RH non-condensing
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 40
℃
for LPV-150-12,15 and LPVL-150-12,24;0~50
℃
for LPV-150-24,36,48)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
52 ~ 63V
Blank type
UL8750,CSA C22.2 No 250.13-12
,
UL879,CSA C22.2 No.207-M89,IP67 approved. Design refer to EN60950-1
L type
UL8750(type”HL”),CSA C22.2 No 250.13-12
,
UL879,CSA C22.2 No.207-M89,IP67 approved
I/P-O/P:3KVAC
WITHSTAND VOLTAGE
I/P-O/P:>100M Ohms / 500VDC / 25
℃
/ 70% RH
SAFETY & ISOLATION RESISTANCE
Blank type
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A(
≤
80
%
load), EN61000-3-3
EMC
EMC EMISSION
L type
Compliance to FCC part 15
Blank type
Compliance to EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A
EMC IMMUNITY
L type
Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level, criteria A
MTBF
703Khrs min. MIL-HDBK-217F (25
℃
)
OTHERS
191*63*37.5mm (L*W*H)
DIMENSION
PACKING
NOTE
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
8. Suitable for indoor use or outdoor use without direct sunlight exposure.
LPVL-150: 0.85Kg;20pcs/17Kg/0.95CUFT
1. All parameters NOT specially mentioned are measured at 230VAC(115VAC for LPVL) input, rated load and 25
℃
of ambient temperature.
LPV-150: 0.74Kg;20pcs/15.8Kg/0.95CUFT;
File Name:LPV-150-SPEC 2015-09-01
