SS-50-H-51-G-S-C datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Test and measurement> SS-50-H-51-G-S-C

Preview

SS-50-H-51-G-S-C: DescriptionContact Probes HEADED SERRATED; CategoryTopical application Test and measurement; File Size350KB，1 Pages; ManufacturerSmiths-Connectors

Download Datasheet Parametric Compare View All

SS-50-H-51-G-S-C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SS-50-H-51-G-S-C	-	-	View	Buy Now

SS-50-H-51-G-S-C Overview

Contact Probes HEADED SERRATED

SS-50-H-51-G-S-C Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Smiths-Connectors
Product Category	Contact Probes
RoHS	Details
Type	Probes
Tip Style	Serrated
Length	15.49 mm
Current Rating	3 A
Spring Force	5.1 oz
Travel	1.27 mm
Resistance	35 mOhms
Spring Material	Music Wire
Factory Pack Quantity	100

Preview

Download Datasheet

View All

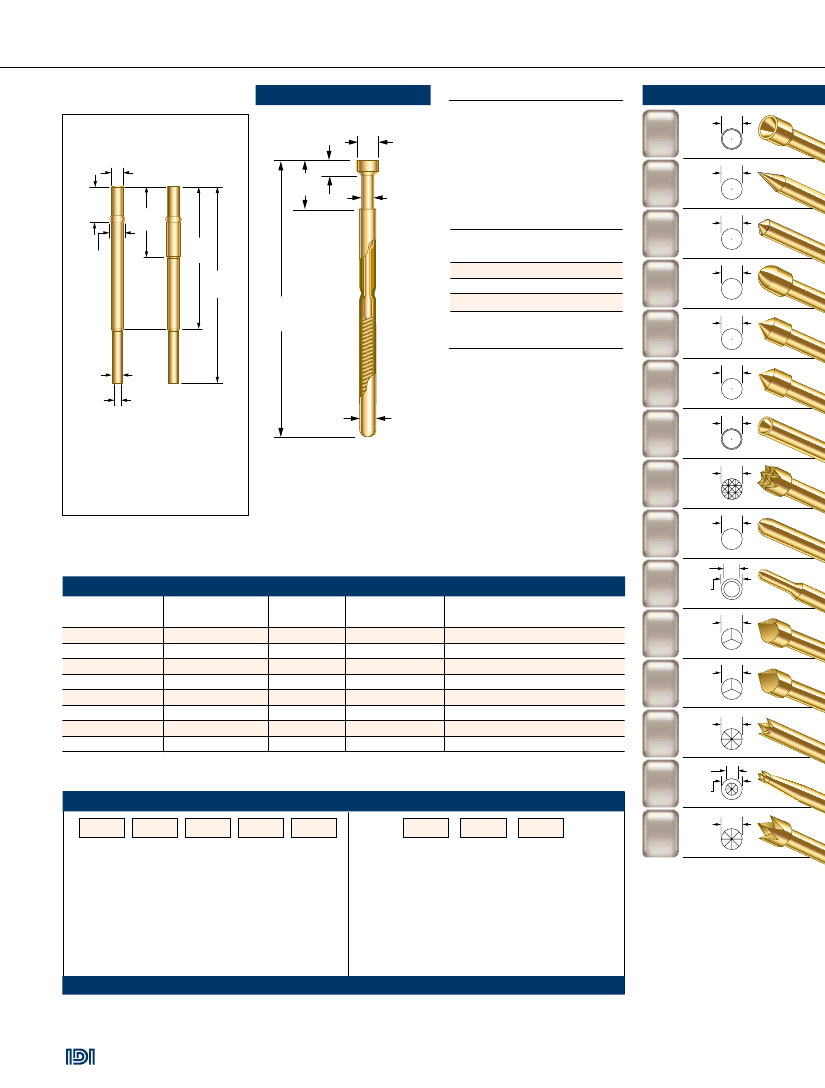

.050 Centers - Size 50

SS-50 P
