10BASE-T Isolation Modules
Low Profile Card Bus and PCMCIA Packages
RoHS
Compliant
Conflict
FREE
Product Features:
Standard series of 16 pin isolation modules to
meet the isolation and impedance matching
requirements of IEEE 802.3 for 10BASE-T
1500Vrms Isolation
Choice of Card Bus or PCMCIA packages
Patented Open Frame Construction
Tested and approved by leading ethernet
controller chip manufacturers
Card Bus
Part Number
TG04-1006J1RL
TG04-2006J1RL
TG41-2006JRL
TG42-1406J1RL
TG43-1406JRL
TG62-1006J1RL
TG66-1006JRL
TG74-1406J1RL
TG75-1406JRL
TG81-1006JRL
TG84-2006J1RL
TG86-2006JRL
TG92-2006J1RL
Turns Ratio ±3%
(1-3:16-14) / (6-8:11-9)
(1CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:1CT)
(1CT:1CT) / 1CT:2.5CT)
(1CT:1CT) / (1CT:√2CT)
(1CT:1CT) / (1CT:√2CT)
(2CT:1CT) / (1CT:1CT)
(2CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:2CT)
(1CT:1CT) / (1CT:2CT)
(1CT:1CT) / (1CT:1CT)
(1CT:2CT) / (1CT:1CT)
(1CT:2CT) / (1CT:1CT)
(1CT:1CT) /(1CT:2.5CT)
PRI
OCL
(µH)
100 Typ
200 Typ
200/35 Min
140 Typ
140 Typ
150 Min
150 Min
140/25 Typ
140/25 Typ
100 Typ
50/200 Min
50/200 Min
200/35 Min
PRI
OCL
(µH)
100 Typ
200 Typ
200/35 Min
140 Typ
140 Typ
150 Min
150 Min
140/25 Typ
140/25 Typ
100 Typ
50/200 Min
50/200 Min
PRI/SEC
Cw/w
(pF max)
9
15
15
15
15
10
10
15
15
9
12
12
15
PRI/SEC
Cw/w
(pF max)
9
15
15
15
15
10
10
15
15
9
12
12
PRI
DCR
(Ω max)
0.50
0.65
0.80
0.65
0.65
0.70
0.70
0.65
0.65
0.50
0.90
0.90
0.80
PRI
DCR
(Ω max)
0.50
0.65
0.80
0.65
0.65
0.70
0.70
0.65
0.65
0.50
0.90
0.90
Package/
Schematic
J/A
J/A
J/B
J/A
J/B
J/A
J/B
J/A
J/B
J/B
J/A
J/B
J/A
Temp
Range
0 to +70°C
-40 to +85°C
-40 to +85°C
0 to +70°C
0 to +70°C
0 to +70°C
0 to +70°C
-40 to +85°C
-40 to +85°C
0 to +70°C
-40 to +85°C
-40 to +85°C
-40 to +85°C
PCMCIA
Part Number
TG04-1006P1RL
TG04-2006P1RL
TG41-2006PRL
TG42-1406P1RL
TG43-1406PRL
TG62-1006P1RL
TG66-1006PRL
TG74-1406P1RL
TG75-1406PRL
TG81-1006PRL
TG84-2006P1RL
TG86-2006PRL
Turns Ratio ±3%
(1-3:16-14) / (6-8:11-9)
(1CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:1CT)
(1CT:1CT) / 1CT:2.5CT)
(1CT:1CT) / (1CT:√2CT)
(1CT:1CT) / (1CT:√2CT)
(2CT:1CT) / (1CT:1CT)
(2CT:1CT) / (1CT:1CT)
(1CT:1CT) / (1CT:2CT)
(1CT:1CT) / (1CT:2CT)
(1CT:1CT) / (1CT:1CT)
(1CT:2CT) / (1CT:1CT)
(1CT:2CT) / (1CT:1CT)
Package/
Schematic
P/A
P/A
P/B
P/A
P/B
P/A
P/B
P/A
P/B
P/B
P/A
P/B
Temp
Range
0 to +70°C
-40 to +85°C
-40 to +85°C
0 to +70°C
0 to +70°C
0 to +70°C
0 to +70°C
-40 to +85°C
-40 to +85°C
0 to +70°C
-40 to +85°C
-40 to +85°C
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com

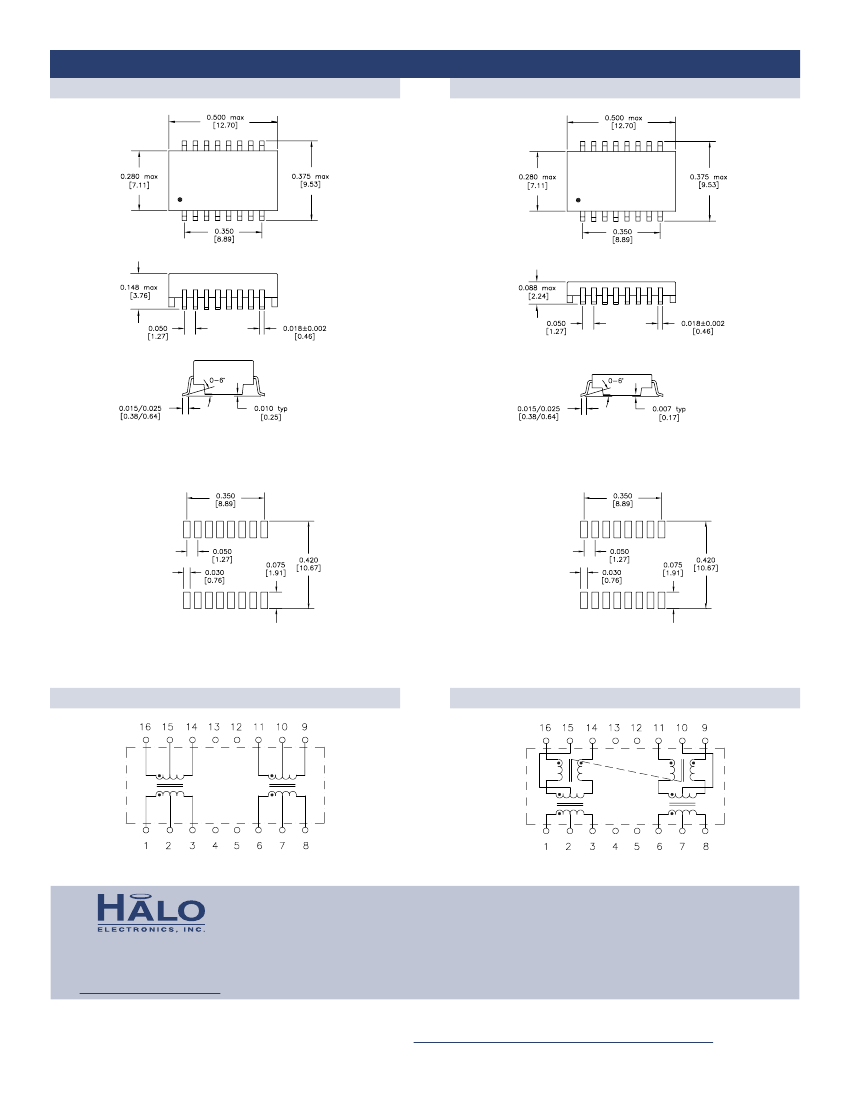

Package J
Low Profile 10BASE-T Isolation Modules
Package P
Dimensions are in inches [mm]
Co-Planarity: 0.004 [0.10]
Dimensions are in inches [mm]
Co-Planarity: 0.004 [0.10]
Recommended
Solder Pad Layout
US Patent Numbers
5,656,985
6,297,721 B1
6,297,720 B1
6,320,489 B1
6,344,785 B1
6,662,431 B1
Recommended
Solder Pad Layout
Schematic A
Schematic B
2880 Lakeside Drive #116
Santa Clara, CA 95054
(650) 903-3800
www.haloelectronics.com
HALO
®
Electronics is a leading supplier of high quality communication magnetics
including signal transformers, filters, CMR chokes, PoE power transformers,
DC/DC converters, and integrated Ethernet connectors. HALO’s leading edge
technology solutions are manufactured in ISO9001 and ISO14001 factories
offering high quality products at a competitive price.
© Copyright 2014-2016 HALO Electronics, Inc. All rights reserved.
Revised 06/2016 Download the latest version at
www.haloelectronics.com/pdf/low-profile-10baset.pdf
