ASMPH-0603-1R5M-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> ASMPH-0603-1R5M-T

ASMPH-0603-1R5M-T: DescriptionFixed Inductors 1.5uH 20%, Shielded -40C +85C; CategoryPassive components inductor; File Size751KB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ASMPH-0603-1R5M-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ASMPH-0603-1R5M-T	-	-	View	Buy Now

ASMPH-0603-1R5M-T Overview

Fixed Inductors 1.5uH 20%, Shielded -40C +85C

ASMPH-0603-1R5M-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	0603
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	0603
core material	FERRITE
DC Resistance	0.23 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	0.9 A
self resonant frequency	100 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR MEASURED AT 25% TOLERANCE
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

SMD Multilayer Chip Power Inductor

ASMPH-0603

FEATURES:

•

High DC bias current due to trench technology

•

Much lower profile than any other series

•

Monolithic structure for high reliability

•

Excellent solderability and heat resistance

•

Magnetically shielded structure to eliminate cross coupling

RoHS/RoHS II Compliant

1.6 x 0.8 x 0.8mm

APPLICATIONS:

ASMPH family is a miniature type of multilayer power

inductors constructed using low loss ferite material to

support high-speed switching frequencies.The compact

size and high efficiency is ideal for DC/DC converter

applications in space limited boards.

Switching mode regulators for smart phones and cameras.

Buck convertersfor RFIC, RFPA and Audio Codec modules.

Boost converters for flash drivers.

Wireless cards, DVD players and other electronic devices.

ELECTRICAL SPECIFICATIONS:

Operating Temperature:

-40˚C to +85˚C

ELECTRICAL SPECIFICATIONS:

Storage Temperature:

-10˚C to +40˚C, RH 70% (Max.)

Part Number

ASMPH-0603-

Inductance Code

Units

Symbol

ASMPH-0603-R22

ASMPH-0603-R33

ASMPH-0603-R47

ASMPH-0603-R68

ASMPH-0603-1R0

ASMPH-0603-1R5

ASMPH-0603-2R2

Inductance

μH

0.22

0.33

0.47

0.68

1.0

1.5

2.2

Tolerance

M=±20%

N=±30%

M, N

DCR

± 25%

DCR

0.10

0.13

0.15

0.18

0.20

0.23

0.30

SRF Min.

MHz

SRF

200

190

180

160

125

100

Temperature

Rise Current

(max)

rms

1250

1200

1100

1150

1000

900

850

Saturation

Current

(Typ)

sat

1600

1500

1200

1100

800

500

300

Unless otherwise specified, the standard atmospheric conditions for measurement/test as:

a. Ambient Temperature: 20±15˚C

b. Relative Humidity: 65±20%

c. Air Pressure: 86 kPa to 106 kPa

Inductance (L):

HP4291B+HP16192A or Equivalent, tested at 1MHz, -20dBm or 50mV.

Direct Current Resistance (DCR):

Milliohmeter-HP4338B or Equivalent

Self-Resonant Frequency (SRF):

HP4291B+HP16192A or Equivalent, -20dBm or 50mV.

Temperature Rise current (Irms):

Electric Power, Electric current meter, Thermometer.

Irms is the value of DC current as chip surface temperature rose just 40°C against chip initial surface

temperature.

Saturation Current(Isat):

HP6632B system DC power supply, HP4291B+HP16192A+HP16200 or

equivalent.

Isat is the value of DC current inductance decreased just 30% against initial value.

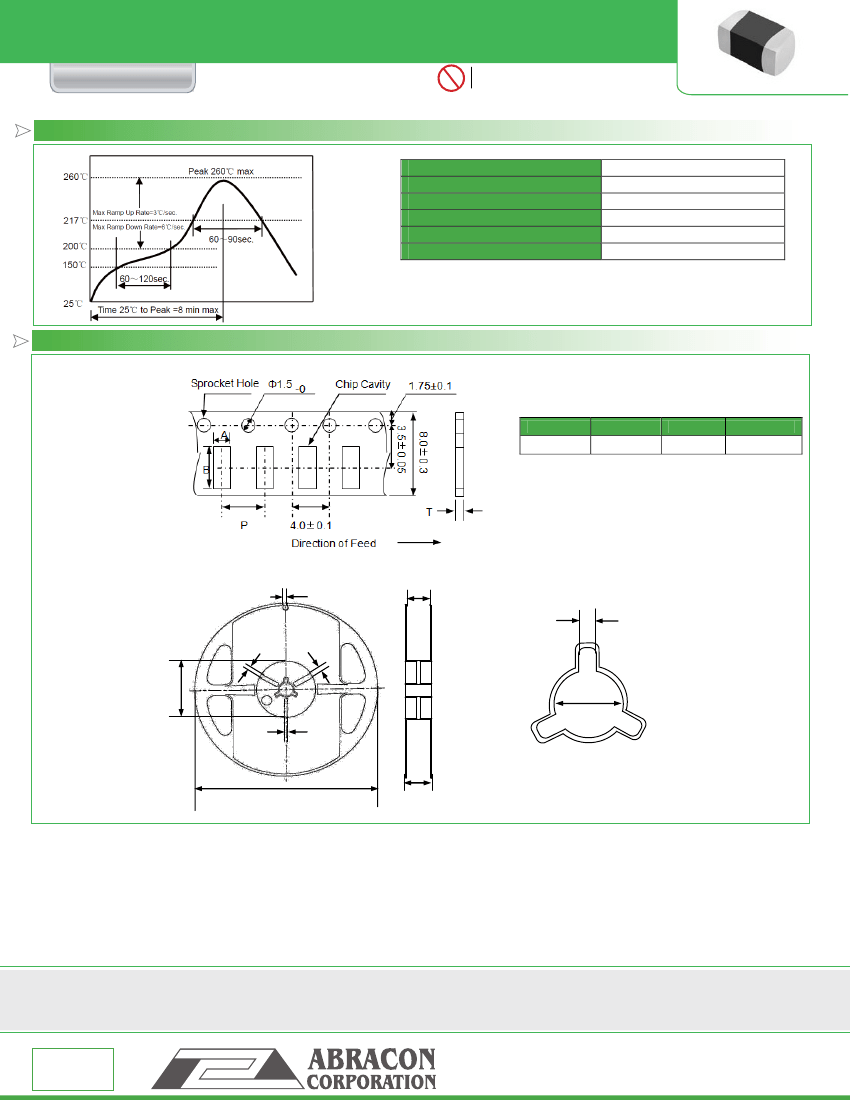

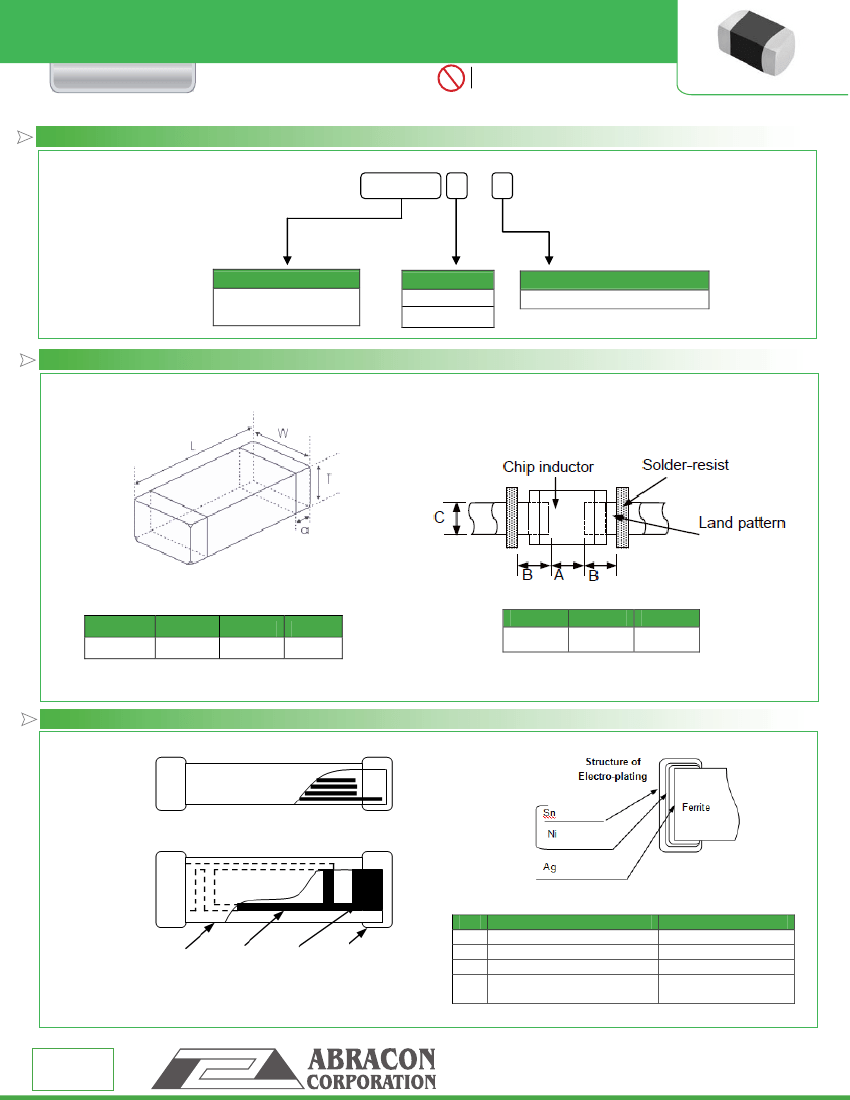

ABRACON

ISO 9001:2008

CERTIFIED

Visit

www.abracon.com

for Terms & Conditions of Sale

30332 Esperanza, Rancho Santa Margarita, California 9268

Revised: 02.11.13

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
