Size 16 Coaxial Pin
D38999
M39029/76
852-008
Shielded
Contacts
Ser. I, II, III, IV
Size #16 Coaxial Pin Contacts for MIL-DTL-38999 Series I, II, III and IV Connectors
These #16 pin contacts accept 50 ohm and 75 ohm coaxial cable. Inner contact is rated at 1
amp, the outer contact 12 amps. DWV rating is 800 Vac rms sea level, 250 Vac at 50,000 feet.
Contacts are packaged individually and are unassembled with instruction sheet. One contact
consists of outer contact , fluorocarbon dielectric, inner contact and shield crimp sleeve. Inner
and outer contacts are gold-plated copper alloy. Approved to SAE AS39029. VSWR rating 1.5:1
maximum up to 700 MHz. 5000 megohm insulation resistance. Mates with: M39029/77 and /78.
B

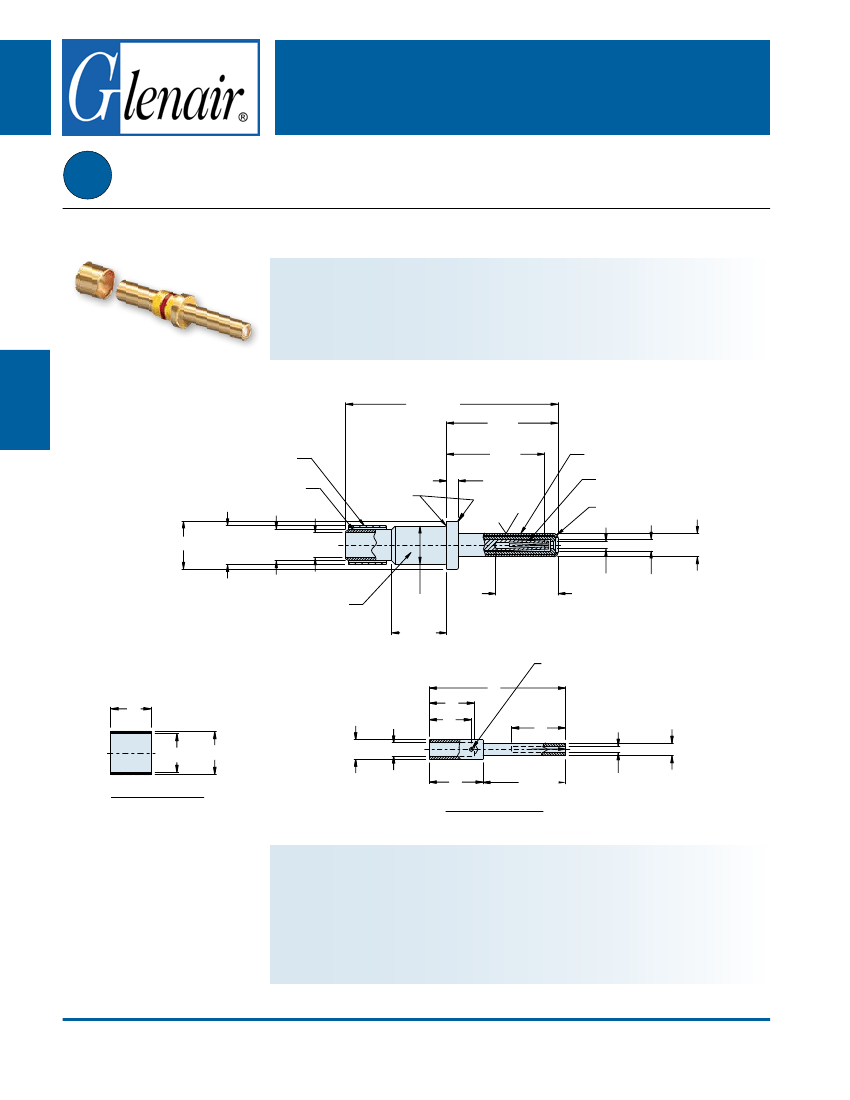

Shield Crimp Sleeve
Outer Contact Barrel
R .003
Max
ØB
.570 Max
.300
.295
*
.262
Min
.029
.033
32
Outer Contact
Inner Socket Contact
.015
R .010
ØA
ØV
ØW
ØD
ØE
After
Crimp
ØZ
BIN Color Bands
(See Table)
ØC
.063
Min
.166 Min
Depth
R .020 Thru One Wall Only
.013 Radial Location Optional
L
H
N
M
ØF
Shield Crimp Sleeve
ØG
ØJ
ØK
P
R
S
ØU
Mates With
ØT Pin
Inner Socket Contact
Material and Finish
Contact Body: Copper Alloy/Gold Plated
Center Contact: Copper Alloy/Gold Plated
Crimp Sleeve: Copper Alloy/Gold Plated
Insulator: Teflon
* Indicates point at which a square ended pin of the same basic diameter as the mating
contact first engages the outer contact spring
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-16
Size 16 Coaxial Pin
Type
Cable Accommodation
M17/119-RG174, M17/113-RG316, M17/094-RG179,
Times AA3248, Teledyne 11299, Haveg 8100207,
Thermax 75-738-BCCWXE, Tensolite 3088/L707YX-1
Part Number
852-008-16-424
852-008-16-425
852-008-16-426
852-008-16-427
Military Part
Number
M39029/76-424
M39029/76-425
M39029/76-426
M39029/76-427
Color Band
1st
2nd
3rd
Yellow Red
Yellow Red
Yellow Red
Yellow Red
Yellow
Green
Blue
Violet
Pin
M19/093-RG178
Haveg 61-02051, Revere WH95623
Haveg 30-00761, Haveg 30-02024, Haveg 30-02033,
Tensolite 24713/A955KK1, Tensolite 26723/A955KK1
Table I
BIN Code
ØA
424
425
426
427
.0635
.0615
.0635
.0615
.0635
.0615
.0635
.0615
(1.61)
(1.56)
(1.61)
(1.56)
(1.61)
(1.56)
(1.61)
(1.56)
ØB Min ØC
.0670
(1.7018)
.0575
(1.4605)
.0670
(1.7018)
.0575
(1.4605)
.103
.101
.103
.101
.103
.101
.103
.101
(2.62)
(2.57)
(2.62)
(2.57)
(2.62)
(2.57)
(2.62)
(2.57)
ØD
.130
.127
.130
.127
.130
.127
.130
.127
(3.3)
(3.2)
(3.3)
(3.2)
(3.3)
(3.2)
(3.3)
(3.2)
ØE Max
0.108 (2.7)
0.108 (2.7)
0.108 (2.7)
0.108 (2.7)
ØF Min
0.105 (2.7)
ØG Max
0.120 (3.0)
H
ØJ Max
ØK Min
ØL Ref
.105 (2.7)
0.046 (1.2) .0210 (0.5) .392 (10.0)
.095 (2.4)
.105 (2.7)
0.046 (1.2) .0210 (0.5) .392 (10.0)
.095 (2.4)
.105 (2.7)
0.052 (1.3) .0355 (0.9) .392 (10.0)
.095 (2.4)
.105 (2.7)
0.046 (1.2) .0270 (0.7) .392 (10.0)
.095 (2.4)
0.094 (2.4) 0.120 (3.0)
0.105 (2.7)
0.120 (3.0)
0.094 (2.4) 0.120 (3.0)
Table I (continued)
BIN Code
M
424
425
426
427
.094
.087
.094
.087
.094
.087
.094
.087
(2.4)
(2.2)
(2.4)
(2.2)
(2.4)
(2.2)
(2.4)
(2.2)
N Min
0.103 (2.6)
0.103 (2.6)
0.103 (2.6)
0.103 (2.6)
P
.125
.119
.125
.119
.125
.119
.125
.119
R
(3.2) .271 (6.9)
(3.0) .269 (6.8)
(3.2) .271 (6.9)
(3.0) .269 (6.8)
(3.2) .271 (6.9)
(3.0) .269 (6.8)
(3.2) .271 (6.9)
(3.0) .269 (6.8)
S Min
0.156 (4.0)
0.156 (4.0)
0.156 (4.0)
0.156 (4.0)
T
.0155 (.39)
.0145 (.37)
.0155 (.39)
.0145 (.37)
.0155 (.39)
.0145 (.37)
.0155 (.39)
.0145 (.37)
U
.030
.028
.030
.028
.030
.028
.030
.028
(.8)
(.7)
(.8)
(.7)
(.8)
(.7)
(.8)
(.7)
ØV
.022
.018
.022
.018
.022
.018
.022
.018
(.6)
(.5)
(.6)
(.5)
(.6)
(.5)
(.6)
(.5)
ØW
.041
.038
.041
.038
.041
.038
.041
.038
ØZ Max
(1.04)
0.085
(.097)
(1.04)
0.076
(.097)
(1.04)
0.085
(.097)
(1.04)
0.076
(.097)
2.2
1.9
2.2
1.9
Table III
Inner Contact
Basic Crimping
Tool
M22520/2-01
© 2011 Glenair, Inc.
Positioner
M22520/2-35
Outer Contact
Basic Crimping
Tool
M22520/4-01
Positioner
M22520/4-02
Insertion Tool
M81969/8-07 or
M81969/14-03
Extraction Tool
M81969/8-08 or
M81969/14-03
Printed in U.S.A.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-17
Shielded
Contacts
M39029/76
852-008
B
