3.3V Zero Delay Buffer
Features
•
ASM5P2304A
the REF pin. The PLL feedback is required to be driven to
FBK pin, and can be obtained from one of the outputs. The
input-to-output propagation delay is guaranteed to be less
than 250pS, and the output-to-output skew is guaranteed to
be less than 200pS.
The ASM5P2304A has two banks of two outputs each.
Multiple ASM5P2304A devices can accept the same input
clock and distribute it. In this case the skew between the
outputs of the two devices is guaranteed to be less than
500pS.
The
ASM5P2304A
is
available
in
two
different
Zero input - output propagation delay, adjustable
by capacitive load on FBK input.
Multiple configurations - Refer “ASM5P2304A
Configurations Table”.
Input frequency range: 15MHz to 133MHz
Multiple low-skew outputs.
•
•
•
•
•
•
Output-output skew less than 200pS.
Device-device skew less than 500pS.
Two banks of four outputs.
•
Less than 200pS Cycle-to-Cycle jitter
(-1, -1H, -2, -2H).
Available in space saving, 8 pin 150-mil SOIC
packages.
3.3V operation.
Advanced 0.35µ CMOS technology.
Industrial temperature available.
•
configurations (Refer “ASM5P2304A Configurations Table).
The ASM5P2304A-1 is the base part, where the output
frequencies equal the reference if there is no counter in the
feedback path. The ASM5P2304A-1H is the high-drive
version of the -1 and the rise and fall times on this device
are much faster.
The ASM5P2304A-2 allows the user to obtain REF and
1/2X or 2X frequencies on each output bank. The exact
configuration and output frequencies depend on which
output drives the feedback pin.
•
•
•
Functional Description
ASM5P2304A is a versatile, 3.3V zero-delay buffer
designed
to
distribute
high-speed
clocks
in
PC,
workstation, datacom, telecom and other high-performance
applications. It is available in 8 pin package. The part has
an on-chip PLL which locks to an input clock presented on
Block Diagram
FBK
CLKA1
REF
PLL
CLKA2
/2
Extra Divider (-2)
CLKB1
CLKB2
PulseCore Semiconductor Corporation
1715 S. Bascom Ave Suite 200, Campbell, CA 95008
•
Tel: 408-879-9077
•
Fax: 408-879-9018
www.pulsecoresemi.com
Notice: The information in this document is subject to change without notice.
November 2006
rev 1.5
ASM5P2304A Configurations
Device
ASM5P2304A-1
ASM5P2304A-1H
ASM5P2304A-2
ASM5P2304A-2
ASM5P2304A-2H
ASM5P2304A-2H
ASM5P2304A
Feedback From
Bank A or Bank B
Bank A or Bank B
Bank A
Bank B
Bank A
Bank B
Bank A Frequency
Reference
Reference
Reference
2 X Reference
Reference
2 X Reference
Bank B Frequency
Reference
Reference
Reference /2
Reference
Reference/2
Reference
Zero Delay and Skew Control
For applications requiring zero input-output delay, all outputs must be equally loaded
.
1500
1000
REF-Input to CLKA / CLKB Delay (pS)
500
0
-30
-500
-25
-20
-15
-10
-5
0
5
10
15
20
25
30
-1000
-1500
Output Load Difference: FBK Load - CLKA/CLKB Load (pF)

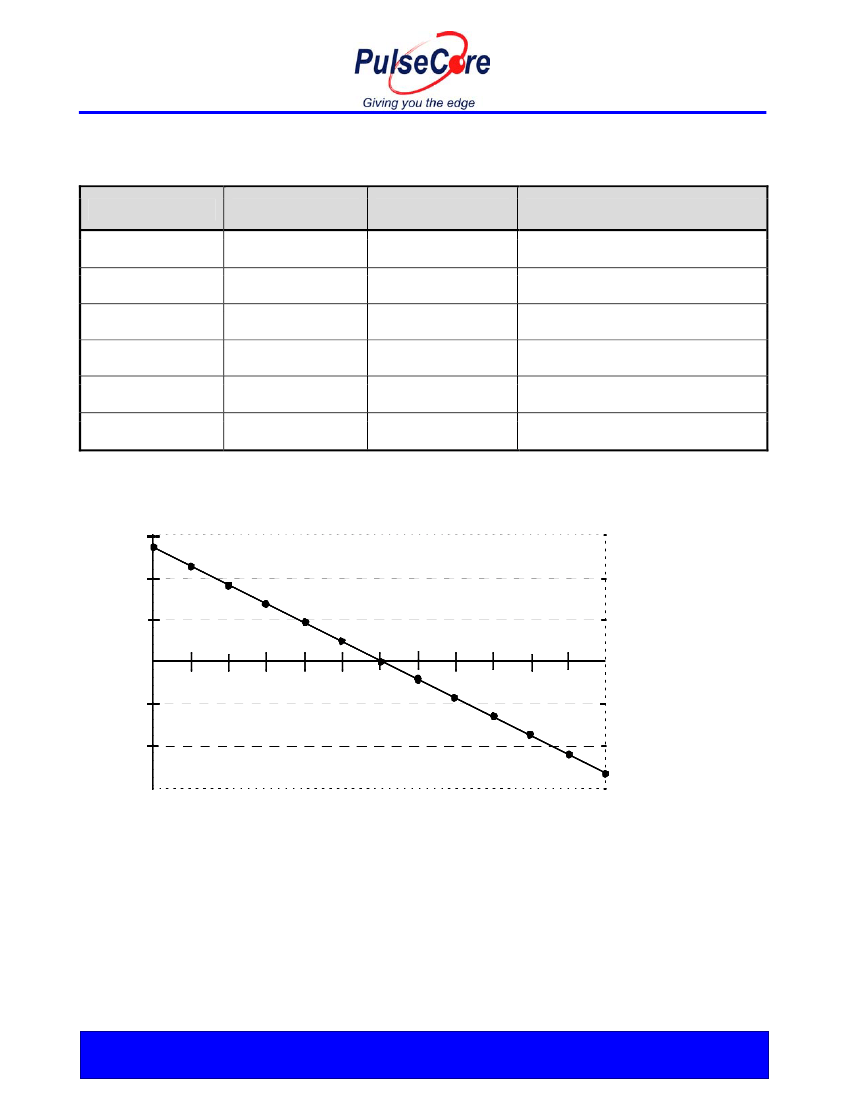

REF Input to CLKA/CLKB Delay Vs Difference in Loading between FBK pin and CLKA/CLKB pins
To close the feedback loop of the ASM5P2304A, the FBK
pin can be driven from any of the four available output
pins. The output driving the FBK pin will be driving a total
load of 7pF plus any additional load that it drives. The
relative loading of this output (with respect to the
remaining outputs) can adjust the input output delay. This
is shown in the above graph.
For applications requiring zero input-output delay, all
outputs including the one providing feedback should be
equally loaded. If input-output delay adjustments are
required, use the above graph to calculate loading
differences between the feedback output and remaining
outputs. For zero output-output skew, be sure to load
outputs equally.
3.3V Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
2 of 14
November 2006
rev 1.5
Pin Configuration
REF 1
CLKA1 2
CLKA2 3
GND 4
ASM5P2304A
8 FBK
7 V
DD
6 CLKB2
5 CLKB1
ASM5P2304A
Pin Description for ASM5P2304A
Pin #
1
2
3
4
5
6
7
8
Pin Name
REF
1
CLKA1
2
CLKA2
2
GND
CLKB1
2
CLKB2
2
V
DD
FBK
Description
Input reference frequency, 5V tolerant input
Buffered clock output, bank A
Buffered clock output, bank A
Ground
Buffered clock output, bank B
Buffered clock output, bank B
3.3V supply
PLL feedback input
Notes:
1. Weak pull-down.
2. Weak pull-down on all outputs.
3.3V Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
3 of 14
November 2006
rev 1.5
Absolute Maximum Ratings
ASM5P2304A
Parameter
Supply Voltage to Ground Potential
DC Input Voltage (Except REF)
DC Input Voltage (REF)
Storage Temperature
Max. Soldering Temperature (10 sec)
Junction Temperature
Static Discharge Voltage
(As per JEDEC STD22- A114-B)
Min
-0.5
-0.5
-0.5
-65
Max
+7.0
V
DD
+ 0.5
7
+150
260
150
Unit
V
V
V
°C
°C
°C
2000
V
Note: These are stress ratings only and functional usage is not implied. Exposure to absolute maximum ratings for prolonged periods can affect device
reliability.
Operating Conditions for ASM5P2304A Commercial Temperature Devices
Parameter
V
DD
T
A
C
L
C
L
C
IN
Supply Voltage
Description
Min
3.0
0
Max
3.6
70
30
15
7
Unit
V
°C
pF
pF
pF
Operating Temperature (Ambient Temperature)
Load Capacitance, from 15MHz to 100MHz
Load Capacitance, from 100MHz to 133MHz
Input Capacitance
3
Note:
3. Applies to both Ref Clock and FBK.
3.3V Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
4 of 14
November 2006
rev 1.5
Electrical Characteristics for ASM5P2304A Commercial Temperature Devices
ASM5P2304A
Parameter
V
IL
V
IH
I
IL
I
IH
Description
Input LOW Voltage
Input HIGH Voltage
Input LOW Current
Input HIGH Current
Test Conditions
Min
Max
0.8
Unit
V
V
2.0
V
IN
= 0V
V
IN
= V
DD
I
OL
= 8mA (-1, -2)
I
OH
= 12mA (-1H, -2H)
I
OL
= -8mA (-1, -2)
I
OH
= -12mA (-1H, -2H)
Unloaded outputs 100MHz REF,
Select inputs at V
DD
or GND
50.0
100.0
µA
µA
V
OL
Output LOW Voltage
4
0.4
V
V
OH
Output HIGH Voltage
4
2.4
V
45.0
I
DD
Supply Current
Unloaded outputs, 66MHz REF
(-1, -1H, -2, -2H)
Unloaded outputs, 33MHz REF
(-1, -1H, -2, -2H)
32.0
mA
18.0
Note:
4. Parameter is guaranteed by design and characterization. Not 100% tested in production.
3.3V Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
5 of 14
