SPECIFICATION CONTROL DRAWING
5026R042A
Date:
Revision:
1-18-06
C
CHEMINAX
150 OHM, AWG 26, 19 STRANDS OF AWG 38,
TWIN CONDUCTOR CABLE
THIS SPECIFICATION SHEET FORMS A PART OF THE LATEST ISSUE OF RAYCHEM SPECIFICATION 1200.

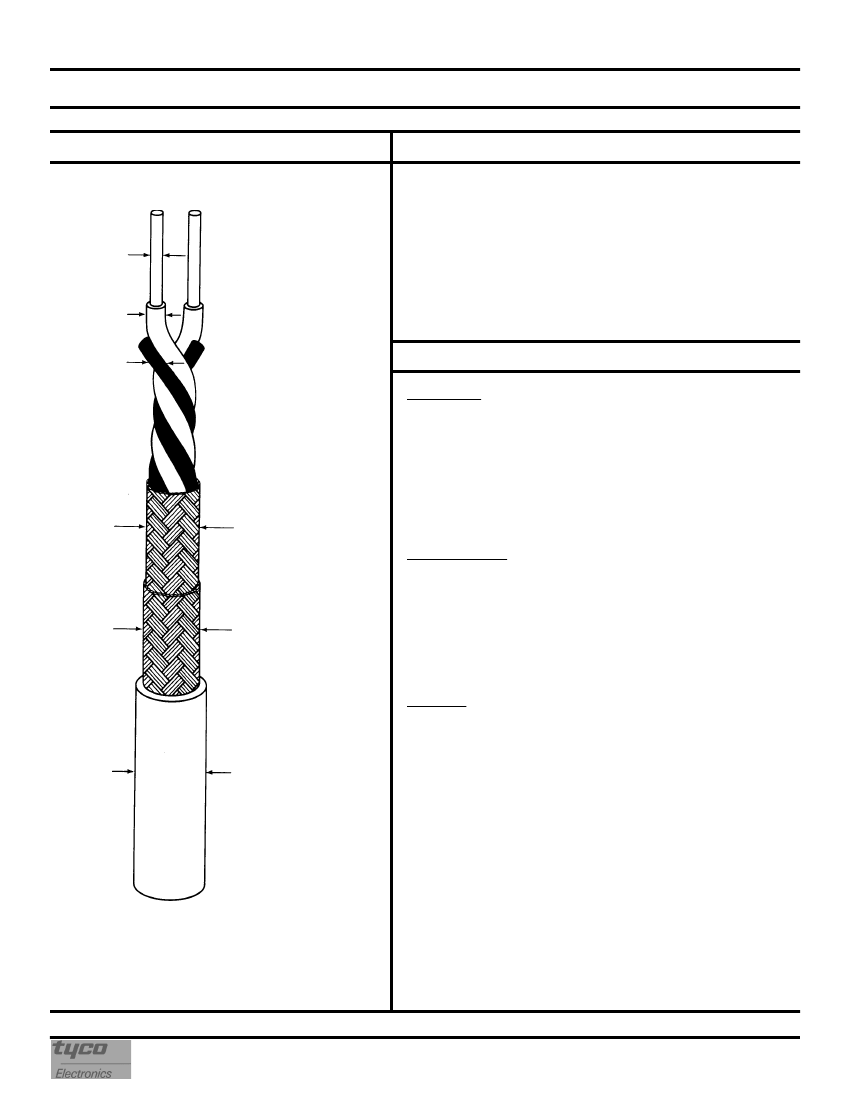

CONSTRUCTION DETAILS
DIMENSIONS ARE NOMINAL VALUES IN INCHES UNLESS OTHERWISE
DESIGNATED.
ELECTRICAL CHARACTERISTICS
CHARACTERISTIC IMPEDANCE
CAPACITANCE - MUTUAL
150 ± 15 ohms, Method C at 1 MHz
8.8 pF/ft. (nominal)
77% (nominal)
10 milliohms/meter (maximum)
at 30 MHz per MIL-C-85485
.0195
CONDUCTORS
AWG 26, 19 Strands of
AWG 38, Silver-Coated
Ultra High Strength Copper
Alloy
DIELECTRICS
Rayfoam® H
Colors - Lt. Blue / White
FILLERS
Radiaiton-Crosslinked
Modified ETFE
VELOCITY OF PROPAGATION
SURFACE TRANSFER IMPEDANCE
.068
.045
ADDITIONAL REQUIREMENTS
ELECTRICAL
CONDUCTOR RESISTANCE
INSULATION RESISTANCE
JACKET FLAWS
SPARK TEST
IMPULSE TEST
VOLTAGE WITHSTAND
(DIELECTRIC)
56.4 ohms/1000 ft. (nominal)
10,000 megohms (minimum)
for 1000 ft.
1.0 kV (rms)
6.0 kV (peak)
1500 volts (rms) (minimum)
.153
1st SHIELD
AWG 38, Silver-Coated
Copper, Optimized
ENVIRONMENTAL
FLAMMABILITY
HEAT SHOCK
LOW TEMPERATURE-
COLD BEND
VOLTAGE WITHSTAND
(POST ENVIRONMENTAL)
Method B
225°C
-55°C/5.50 inch mandrel
.170
2nd SHIELD
AWG 38, Silver-Coated
Copper, Optimized
1000 volts (rms), 1 minute
PHYSICAL
INSULATION (DIELECTRIC)
(Prior to Cabling)
ELONGATION
TENSILE STRENGTH
JACKET
ELONGATION
TENSILE STRENGTH
JACKET THICKNESS
.194
(nominal)
.200
(maximum)
JACKET
Modified FEP
50% (minimum)
600 lbf/in² (minimum)
200% (minimum)
2000 lbf/in² (minimum)
.012 inch (nominal)
Outer jacket will be translucent white (designated by a "-9X"
appended to the part number, e.g., 5026R042A-9X) unless
otherwise specified.
Designate outer jacket color with a dash number in accordance
with MIL-STD-681. Other codes and suffixes may be added to the
part number, as necessary, to capture any additional requirements
imposed by the purchase order.
MARKER TAPE: Place marker tape under jacket and mark in
12 inch (nominal) intervals as follows: " 5026R042A-9X 06090 "
WEIGHT
31.6 lbs/1000 ft. (nominal)
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
R
Wire & Cable
501 Oakside Avenue
Redwood City, California 94063-3800
1-800-227-8816 Fax: 1-650-361-6297
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECTON DATE OF INVITATION FOR BID.
© 2005-2006 Tyco Electronics Corporation. All rights reserved.
