DMN5L06
SINGLE N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Features
•
•
•
•
•
•
•
•
•
Single N-Channel MOSFET
Low On-Resistance
Very Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Ultra-Small Surface Mount Package
Lead Free By Design/RoHS Compliant (Note 2)
“Green” Device (Note 3)
Mechanical Data
•
•
•
•
•
•
•
•
SOT-23
NEW PRODUCT
Case: SOT-23
Case Material: Molded Plastic, "Green" Molding
Compound. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: See Diagram
Terminals: Finish
⎯
Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
Marking Information: See Page 4
Ordering Information: See Page 4
Weight: 0.008 grams (approximate)
Drain
D
Gate
TOP VIEW
G
Source
S
Equivalent Circuit
TOP VIEW
Pin Out Configuration
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
DSS
V
DGR
Continuous
Pulsed
Continuous
Pulsed
V
GSS
I
D
I
DM
Value
50
50
±20
±40
280
1.5
Units
V
V
V
mA
A
Characteristic
Drain-Source Voltage
Drain-Gate Voltage R
GS
≤
1.0MΩ
Gate-Source Voltage
Drain Current (Note 1)
Drain Current (Note 1)
Thermal Characteristics
@T
A
= 25°C unless otherwise specified
Symbol
P
d
R
θ
JA
T
j,
T
STG
Value
350
357
-55 to +150
Units
mW
°C/W
°C
Characteristic
Total Power Dissipation (Note 1)
Thermal Resistance, Junction to Ambient (Note 1)
Operating and Storage Temperature Range
Electrical Characteristics
Characteristic
OFF CHARACTERISTICS (Note 4)
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Body Leakage
ON CHARACTERISTICS (Note 4)
Gate Threshold Voltage
Static Drain-Source On-Resistance
On-State Drain Current
Forward Transconductance
Source-Drain Diode Forward Voltage
DYNAMIC CHARACTERISTICS
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Notes:
@T
A
= 25°C unless otherwise specified
Symbol
BV
DSS
@ T
C
= 25°C
@ T
C
= 125°C
I
DSS
I
GSS
V
GS(th)
R
DS (ON)
I
D(ON)
g
FS
V
SD
C
iss
C
oss
C
rss
Min
50
⎯
⎯
0.49
⎯
⎯
0.5
200
0.5
⎯
⎯
⎯
Typ
⎯
⎯
⎯
⎯
1.6
2.2
1.0
⎯
⎯
⎯
⎯
⎯
Max
⎯
0.1
500
±20
1.2
3
4
⎯
⎯
1.4
50
25
5.0
Unit
V
µA
nA
V
Ω
A
mS
V
pF
pF
pF
Test Condition
V
GS
= 0V, I
D
= 10μA
V
DS
= 50V, V
GS
= 0V
V
GS
= ±20V, V
DS
= 0V
V
DS
= V
GS
, I
D
= 250μA
V
GS
= 2.7V, I
D
= 0.2A,
V
GS
= 1.8V, I
D
= 50mA
V
GS
= 10V, V
DS
= 7.5V
V
DS
=10V, I
D
= 0.2A
V
GS
= 0V, I
S
= 115mA
V
DS
= 25V, V
GS
= 0V
f = 1.0MHz
1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can
be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. No purposefully added lead.
3. Diodes Inc.’s “Green” policy can be found on our website at http://www.diodes.com/products/lead_free/index.php
4. Short duration pulse test used to minimize self-heating effect.
DMN5L06
Document number: DS30614 Rev. 4 - 2
1 of 4
www.diodes.com
October 2007
© Diodes Incorporated
DMN5L06
I
D
, DRAIN CURRENT (A)
V
GS
= 10V
8V
6V
5V
4V
3V
8V
10V
6V
5V
4V
0.9
3V
NEW PRODUCT
0.6
0.3
0
0
1
2
3
4
V
DS
, DRAIN-SOURCE VOLTAGE (V)

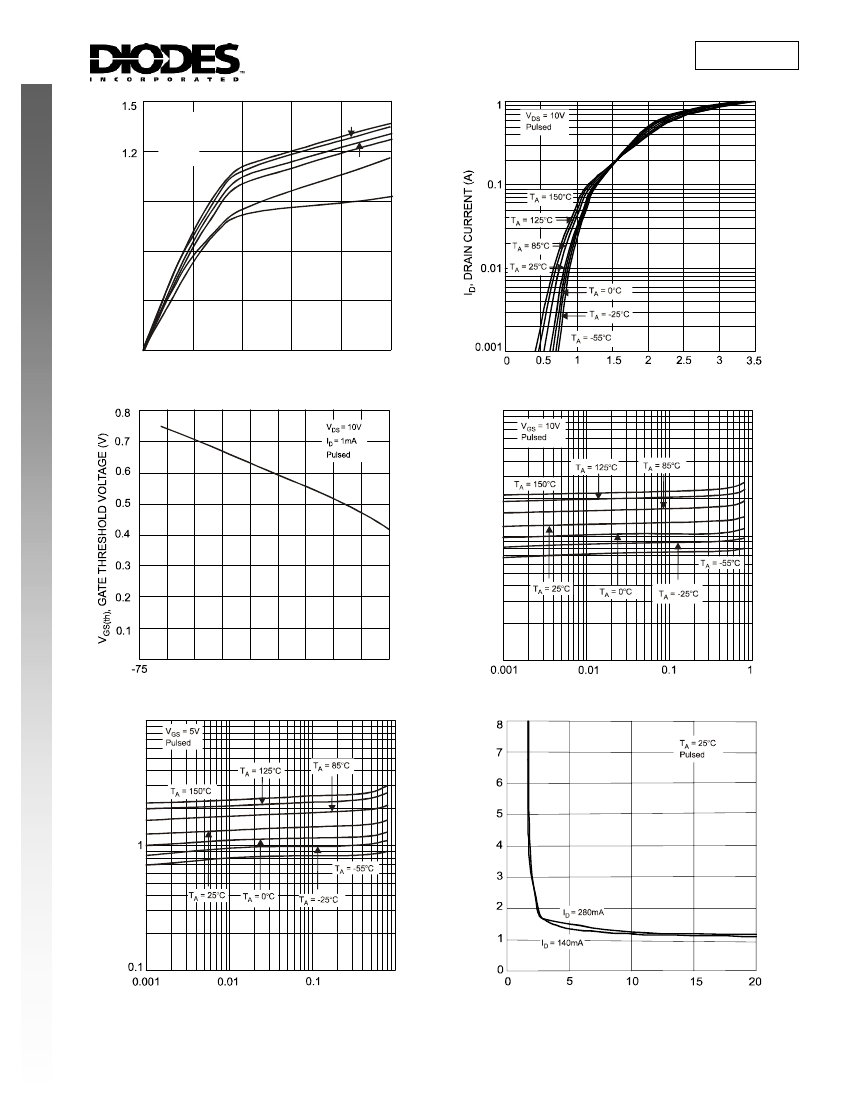

Fig. 1 Typical Output Characteristics
5
V
GS
, GATE-SOURCE VOLTAGE (V)
Fig. 2 Typical Transfer Characteristics
10
R
DS(ON)
, STATIC DRAIN-SOURCE
ON-RESISTANCE (
Ω
)
0
-50 -25
0
25 50 75 100 125 150
T
ch
, CHANNEL TEMPERATURE (°C)
Fig. 3 Gate Threshold Voltage vs. Channel Temperature
1
0.1
I
D,
DRAIN CURRENT (A)
Fig. 4 Static Drain-Source On-Resistance vs. Drain Current
10
R
DS(ON)
, STATIC DRAIN-SOURCE
ON-RESISTANCE (
Ω
)
1
I
D
, DRAIN CURRENT (A)
Fig. 5 Static Drain-Source On-Resistance
vs. Drain Current
V
GS,
GATE SOURCE VOLTAGE (V)
Fig. 6 Static Drain-Source On-Resistance
vs. Gate-Source Voltage
DMN5L06
Document number: DS30614 Rev. 4 - 2
2 of 4
www.diodes.com
R
DS(ON)
, STATIC DRAIN-SOURCE
ON-RESISTANCE (
Ω
)
October 2007
© Diodes Incorporated
DMN5L06
R
DS(ON)
, STATIC DRAIN-SOURCE
ON-STATE RESISTANCE (
Ω
)
I
DR
, REVERSE DRAIN CURRENT (A)
V
GS
= 0V
Pulsed
T
A
= 150
°
C
NEW PRODUCT
T
A
= 125
°
C
T
A
= 85
°
C
T
A
= 25
°
C
T
A
= -25
°
C
T
A
= -55
°
C
T
ch
, CHANNEL TEMPERATURE (
°
C)

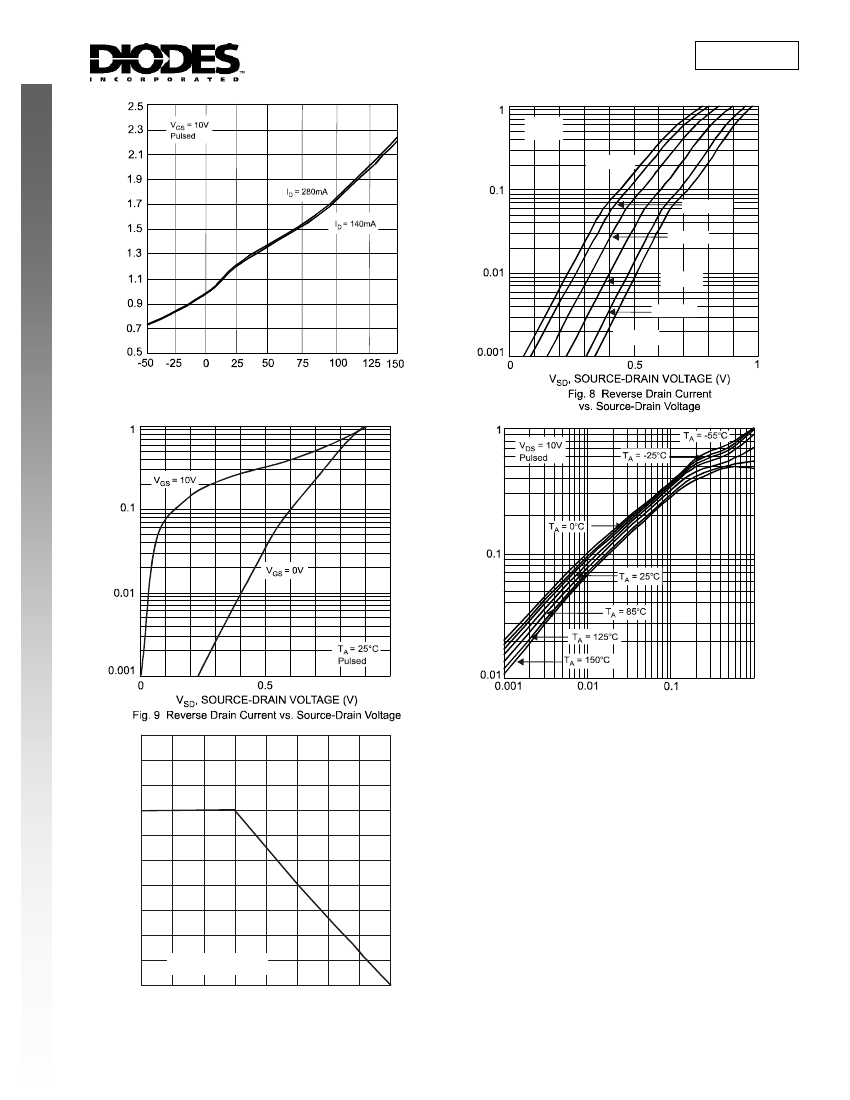

Fig. 7
Static Drain-Source On-State Resistance
vs. Channel Temperature
1
|Y
fs
|, FORWARD TRANSFER ADMITTANCE (S)
1
I
D
, DRAIN CURRENT (A)
Fig.10 Forward Transfer Admittance vs. Drain Current
500
400
300
200
100
R
θJA
= 357°C/W
P
d
, POWER DISSIPATION (mW)
I
DR
, REVERSE DRAIN CURRENT (A)
0
-50
0
50
100
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 11 Derating Curve - Total
150
DMN5L06
Document number: DS30614 Rev. 4 - 2
3 of 4
www.diodes.com
October 2007
© Diodes Incorporated
DMN5L06
Ordering Information
Part Number
DMN5L06-7
Notes:
(Note 5)
Case
SOT-23
Packaging
3000/Tape & Reel
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
NEW PRODUCT
K5L = DMN5L06 Product Type Marking Code
YM = Date Code Marking
Y = Year ex: S = 2005
M = Month ex: 9 = September
K5L
Date Code Key
Year
Code
Month
Code
2005
S
Jan
1
Feb
2
2006
T
Mar
3
2007
U
Apr
4
May
5
YM
2008
V
Jun
6
2009
W
Jul
7
Aug
8
2010
X
Sep
9
2011
Y
Oct
O
Nov
N
2012
Z
Dec
D
Package Outline Dimensions
A
TOP VIEW
B C
G
H
K
M
J
D
E
L
SOT-23
Dim
Min
Max
A
0.37
0.51
B
1.20
1.40
C
2.30
2.50
D
0.89
1.03
E
0.45
0.60
G
1.78
2.05
H
2.80
3.00
J
0.013
0.10
K
0.903
1.10
L
0.45
0.61
M
0.085
0.180
0°
8°
α
All Dimensions in mm
Suggested Pad Layout
Y
Z
G
C
X
E
Dimensions Value (in mm)
Z
3.4
G
0.7
X
0.9
Y
1.4
C
2.0
E
0.9
