R125272000: DescriptionRF Connectors / Coaxial Connectors SMA STRG SQ FLNG JK CRMP,SLDR CBL 2.6/50; CategoryThe connector The connector; File Size195KB，3 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

R125272000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R125272000	-	-	View	Buy Now

R125272000 Overview

RF Connectors / Coaxial Connectors SMA STRG SQ FLNG JK CRMP,SLDR CBL 2.6/50

R125272000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	not_compliant
Other features	STANDARDS: MIL-C-39012; IEC 169-1, VSWR MAX AT 12.4 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	1.08 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

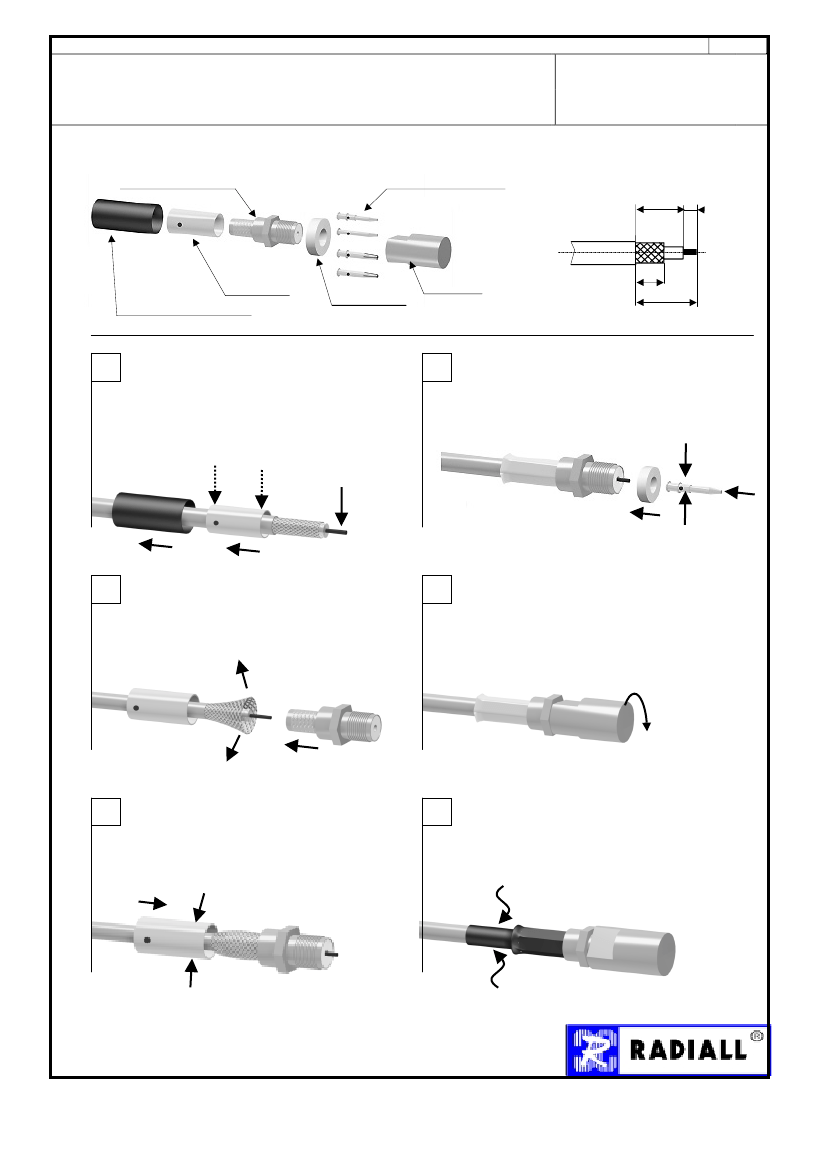

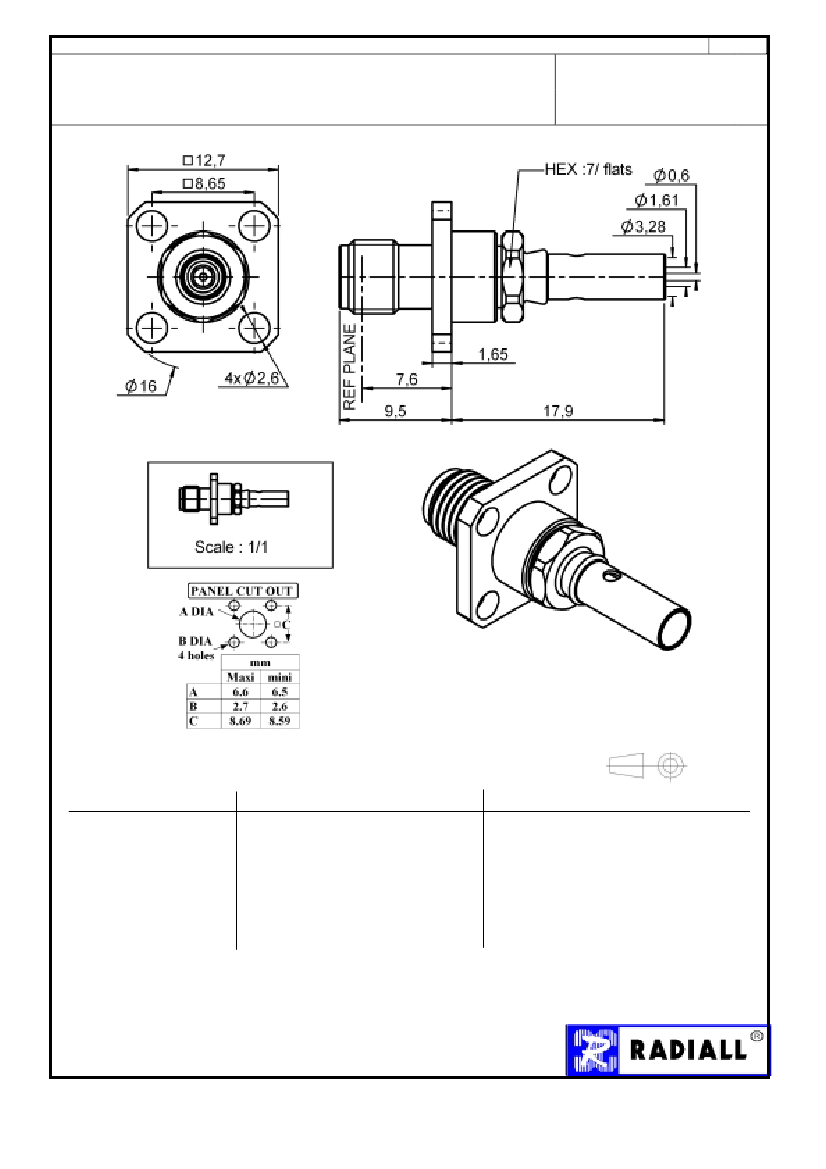

TECHNICAL DATA SHEET

1/3

STRAIGHT SQUARE FLANGE JACK

CRIMP AND SOLDER TYPE - CABLE 2.6/50 S

R125.272.000

Series :

SMA

All dimensions are in mm.

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

MATERIALS

STAINLESS STEEL

BERYLLIUM COPPER

PTFE

BRASS

PLATINGS

(µm)

GOLD 0.5 OVER NICKEL 2

GOLD 1.3 OVER NICKEL 2

GOLD 0.2 OVER NICKEL 2

Issue : 0048 P

In the effort to improve our products, we reserve the right to make changes judged to be

necessary.
