804-005-07ZNU6-7SC datasheet, PDF

Datasheet> All Categories > The connector> The connector> 804-005-07ZNU6-7SC

804-005-07ZNU6-7SC: DescriptionCircular MIL Spec Connector PP PCB/SLDRCUP REC 6 SH SZ 7 CNT; CategoryThe connector The connector; File Size444KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

804-005-07ZNU6-7SC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	804-005-07ZNU6-7SC	-	-	View	Buy Now

804-005-07ZNU6-7SC Overview

Circular MIL Spec Connector PP PCB/SLDRCUP REC 6 SH SZ 7 CNT

804-005-07ZNU6-7SC Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	9 weeks
Is Samacsys	N
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	WATERPROOF
Shell surface	ZINC-NICKEL WITH CHROMATE PLATED
Shell material	ALUMINUM ALLOY
Housing size	6
Termination type	SOLDER
Total number of contacts	7
Base Number Matches	1

Preview

Download Datasheet

View All

Series 804 Push-Pull Mighty Mouse

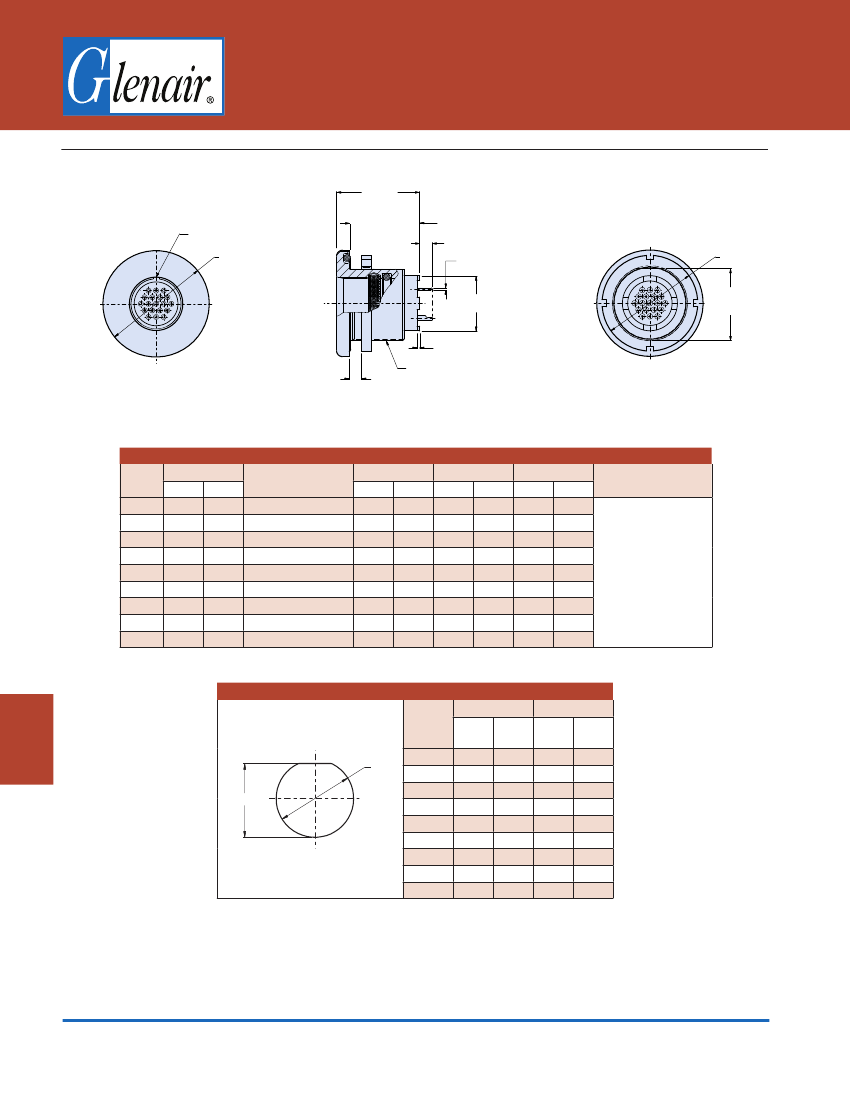

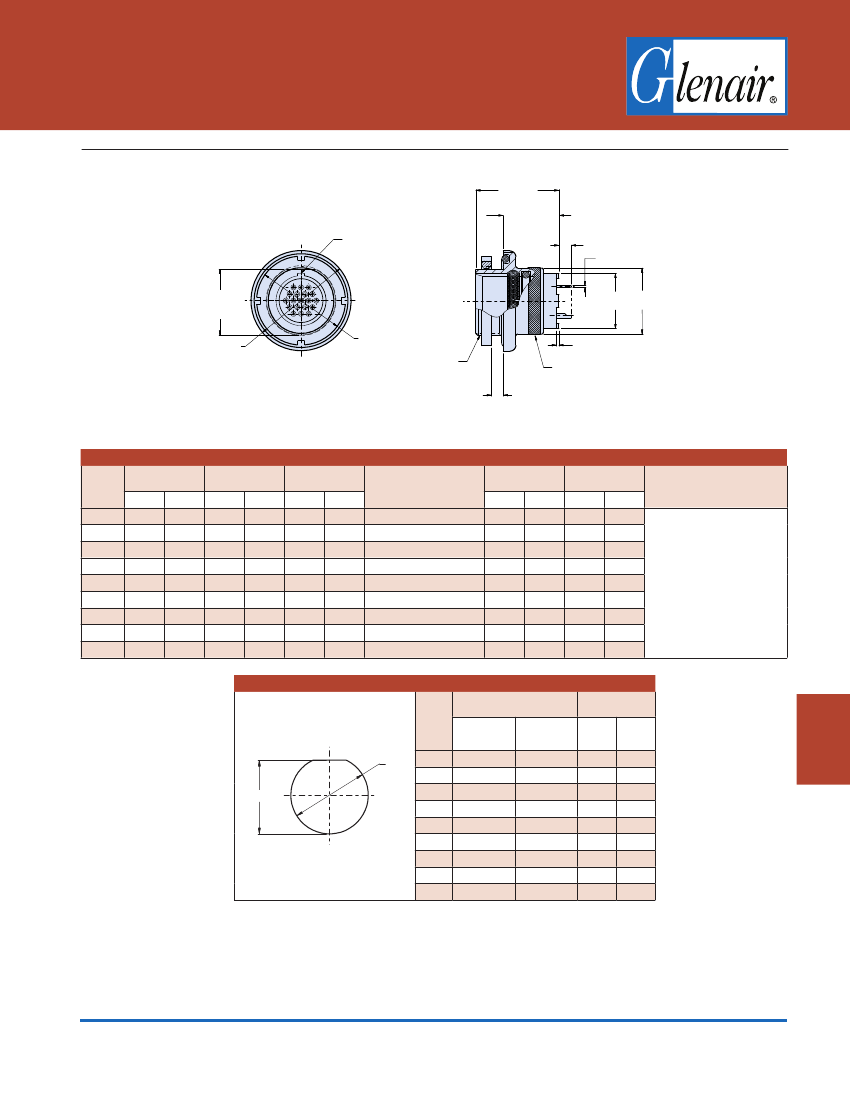

PC Tail or Solder Cup Receptacle

804-005, 804-020 Ordering Information

Panel Mount Receptacles

feature factory-installed non-removable contacts.

Choose solder cup or PC Tail terminals. Available in front or rear panel mount

versions.

Water Immersion, Unmated

Specify

804-005

connectors for applications where open face water immersion

is not a requirement. For MIL-STD-810 Method 512G immersion requirements,

specify

804-020

watertight connectors . These 804-020 connectors are specially

sealed (“MOD-518”) and are 100% tested to maintain a helium leak rate of 1 x 10

-4

cc/second at one atmosphere pressure differential from -40C to +70C.

Series 804

Sample Part Number

Series

Shell Style (See Table I)

Shell Material and Finish

Shell Size - Insert

Arrangement

Contact Type

Shell Key Positions

(See Table II)

= Pin, PC Tail

= Socket, PC Tail

Table I: Shell Style

-00

Jam Nut, Front Panel Mount

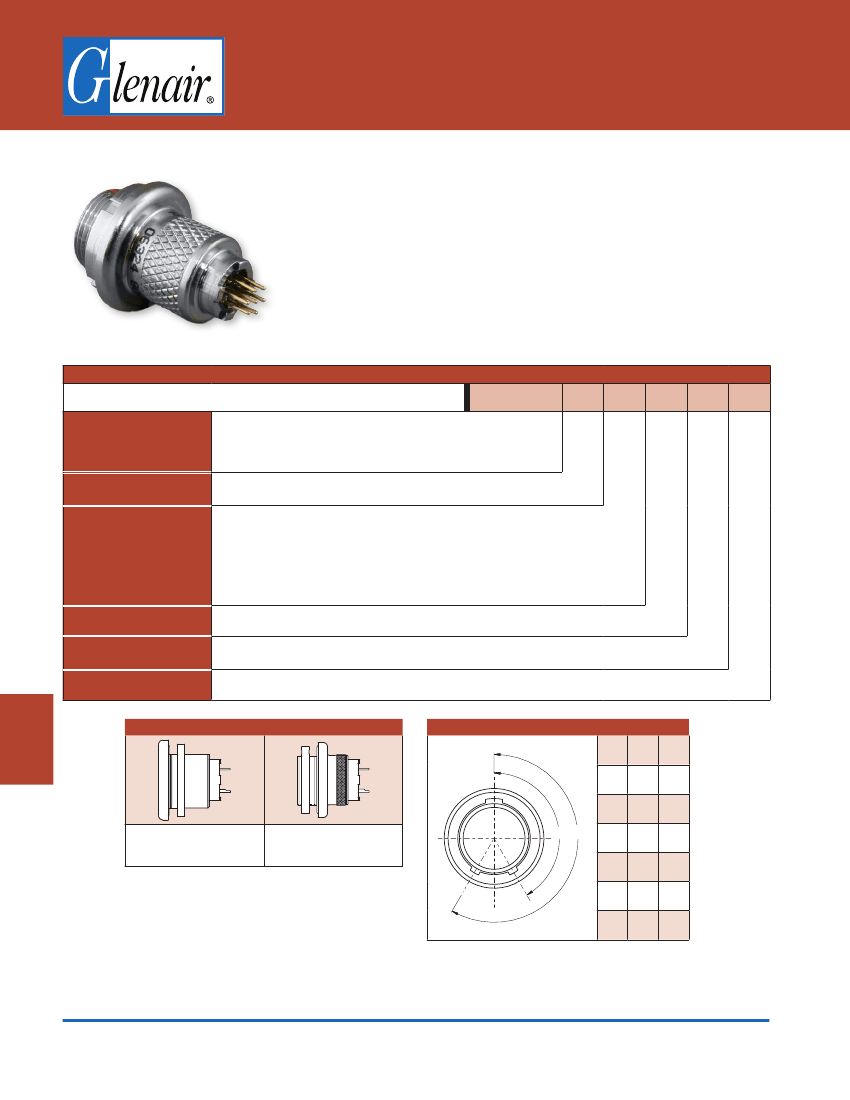

How To Order

804-005

= Solder Cup or PCB Receptacle with Standard Potting

804-020

= Solder Cup or PCB Receptacle with Special "MOD-518" Sealing

for Open Face (Unmated) Water Immersion Requirements. 100% Leak

Tested.

-00

= Front Panel Mount Jam Nut (See Table IV)

-07

= Rear Panel Mount Jam Nut (See Table III)

= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant

= Aluminum / Electroless Nickel; RoHS Compliant

= Aluminum / Nickel-PTFE RoHS Compliant

= Aluminum / Cadmium with Olive Drab Chromate

ZNU

= Aluminum / Zinc-Nickel with Black Chromate

= Stainless Steel / Passivated; RoHS Compliant

See Contact Arrangements Page G-2

= Pin, Solder Cup

= Socket, Solder Cup

-07

9-4

Omit

= Single Master Key

= Normal

= Pos. B

= Pos. C

= Pos. D

= Pos. E

= Pos. F

Table II: Alternate Key Positions

Pos.

A°

150°

75°

95°

140°

75°

95°

B°

210°

230°

275°

210°

-07

Jam Nut, Rear Panel Mount

A° B°

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

G-24

E-Mail: sales@glenair.com
