504193-1300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 504193-1300

504193-1300: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking, Natural Insulator; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

504193-1300 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	504193-1300	-	-	View	Buy Now

504193-1300 Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking, Natural Insulator

504193-1300 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	313746271
Reach Compliance Code	compliant
Country Of Origin	Japan, Malaysia
ECCN code	EAR99
Factory Lead Time	8 weeks
Samacsys Manufacturer	Molex
Samacsys Modified On	2022-06-14 12:10:56
YTEOL	3
body width	0.157 inch
subject depth	0.236 inch
body length	0.719 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Durability	30 Cycles
Minimum insulation diameter	0.031 inch
Insulation resistance	100000000 Ω
Insulator color	NATURAL
Manufacturer's serial number	504193
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	13
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

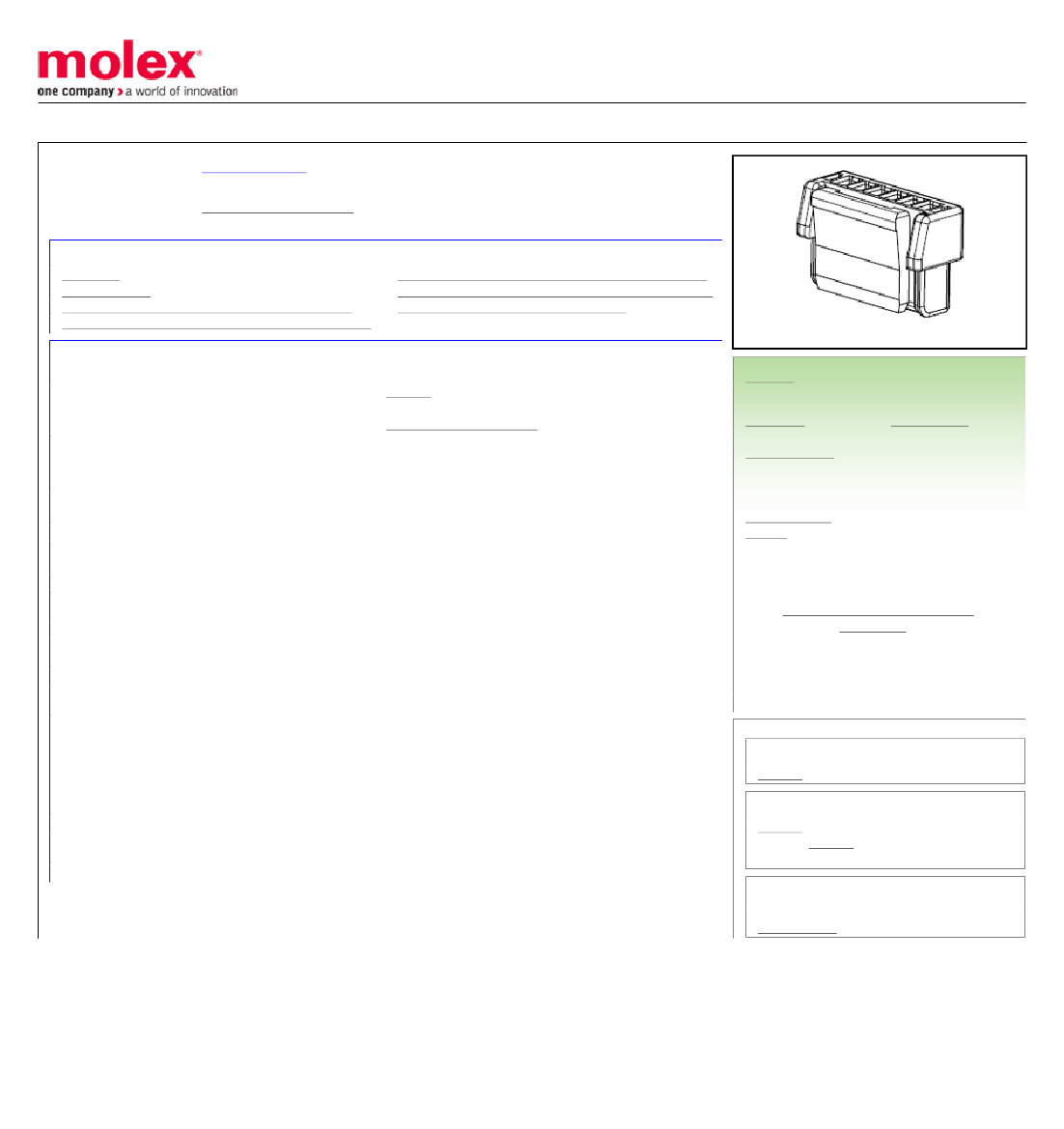

5041931300

Active

Micro-Lock™ Connectors

Micro-Lock 1.25mm Pitch Single-Row Crimp Housing, White, 13 Circuits, 5041931300

Documents:

3D Model

Drawing (PDF)

Product Specification PS-504193-001-001 (PDF)

Application Specification AS-504193-001-001 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Capable

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Application Specification AS-504193-002-001 (PDF)

Packaging Specification SPK-504193-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

Crimp Housings

504193

Wire-to-Board

Micro-Lock™ Connectors

Micro-Lock

887191165318

White

Receptacle

Yes

Polyester

219.572/mg

Tray

1.25mm

Yes

-25°C to +85°C

1.5A

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

504193 Series

Mates With

504194 Micro-Lock 1.25mm Pitch Vertical

Header, 504195 Micro-Lock 1.25mm Pitch

Right Angle Header

Use With

Micro-Lock Wire-to-Board Crimp Terminal

504185-1000

AS-504193-001-001, AS-504193-002-001

SPK-504193-001-001

PS-504193-001-001

SD-504193-001

This document was generated on 03/02/2018
