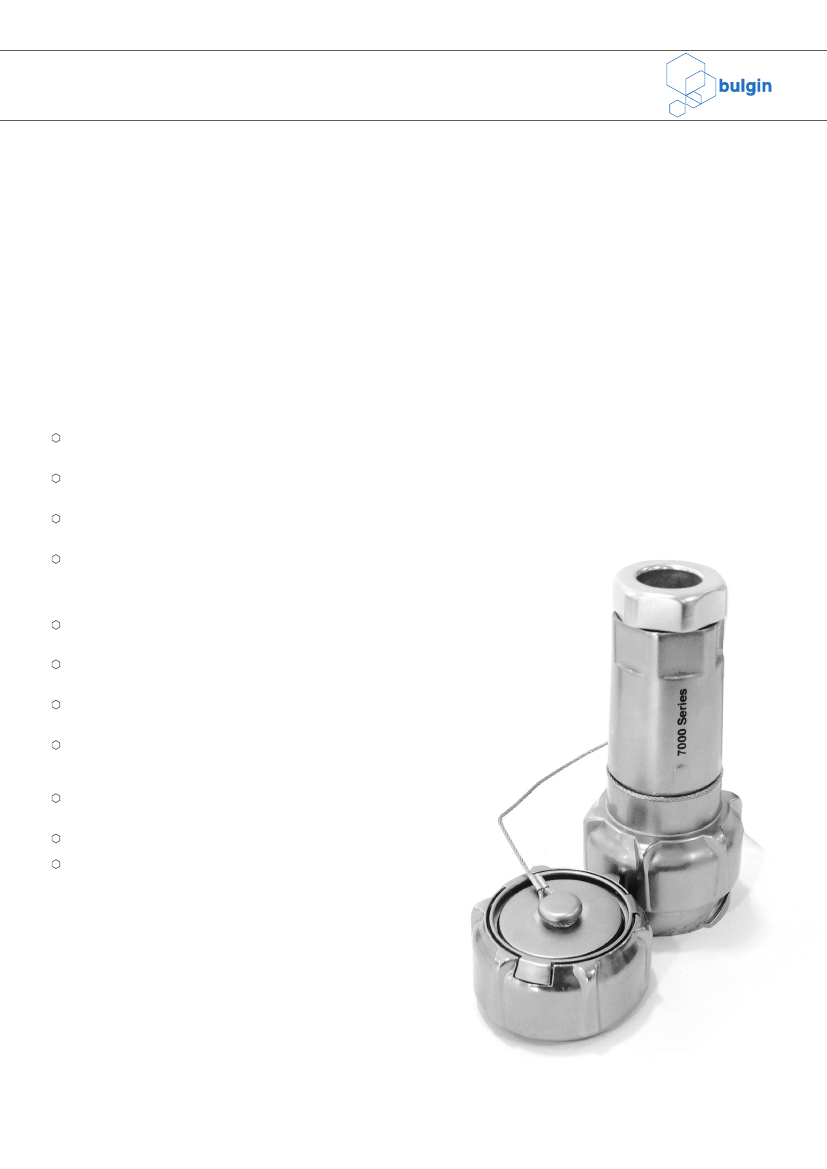

7000 Series Buccaneer
The all plastic and metal construction of the
7000 Series Buccaneer -
circular connectors
that combine the ease of use of a
quick
coupling
mechanism with
proven
environmental sealing for
signal and mains
power.
Designed and independently tested to IP66, IP68 & IP69K standards, they
are ideal for applications where ingress of dust and water must be avoided
and where ease of connection, space and appearance are
important considerations.
Less than 1/4 Turn locking mechanism
Secure, quick connector mating and release
Positive feedback on locking mechanism
Confidence that connector is correctly mated and sealed
IP66, IP68 and IP69K when mated
Suitable for a wide range of dust and water borne environments
All plastic body version; UL94-V0 rated, UV stable,
halogen free
Light-weight, self-extinguishing material suitable for long-term
outdoor use
Flex, flex in-line & panel mount body styles,with sealing caps
Complete family of products maintain sealing integrity in all styles
Polarisation and visual alignment features
Aids the correct mating of connectors
2 to 32 poles – up to 25A, 600V rated
Suitable for mains power to signal applications
‘Scoop proof’ contacts
Prevents damage through mis-mating – ideal for ‘blind mating’
applications
cULs, UL, VDE
approvals Internationally recognised certification (pending)
Screw, Crimp and Solder terminations available
EN60068-2-52 Test Kb Salt Mist (Cyclic)
Marine Severity Level 1
7000 Series Buccaneer
Thermo Plastic
Flex Cable Connector
Mates with In-Line Flex or Panel
Mounting versions PXP7011 &
PXP7012
Quick turn locking ring
Pin or socket versions
Leading earth on 3 pole
connectors
2, 3, 6, 10 & 32 pole
Screw solder and crimp termination
PXP7010

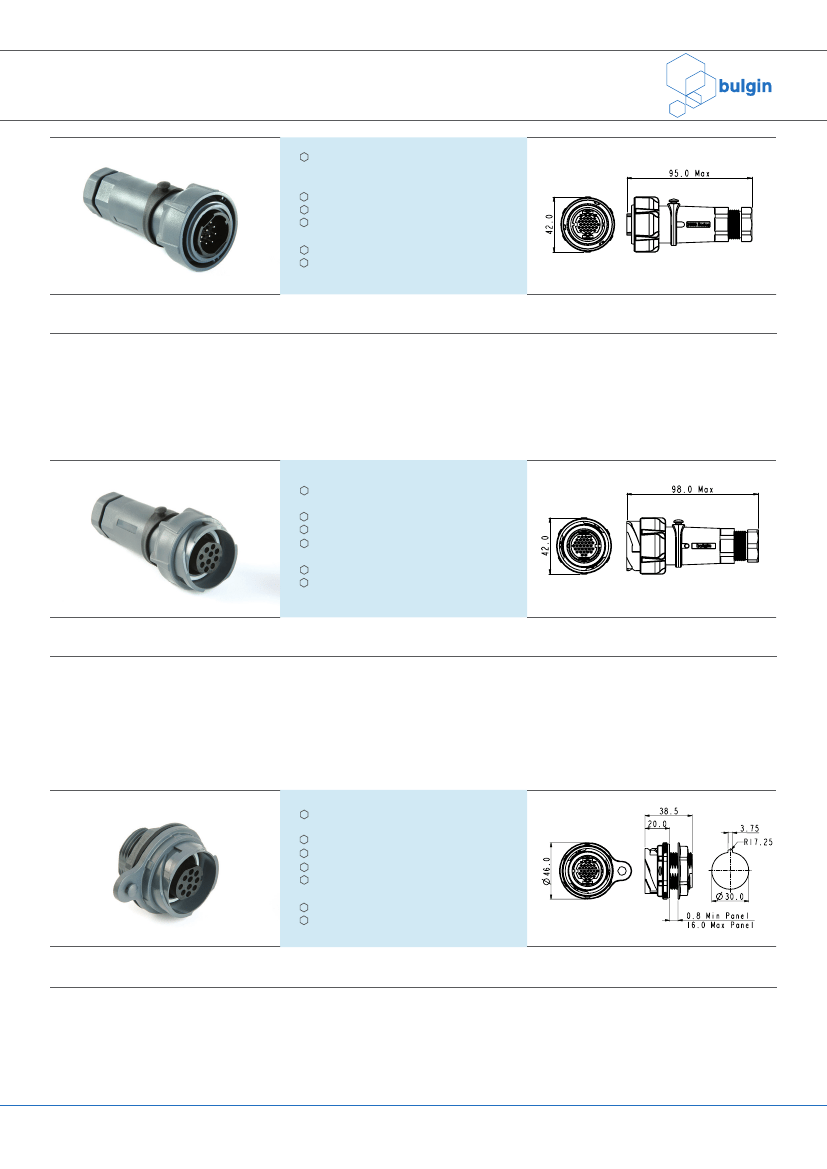

BUCCANEER FOR POWER
Poles
2
3
6
10
32
Termination
Screw
Screw
Screw
Crimp / Solder
Crimp / Solder
Pin Contacts
PXP7010/02P/ST
PXP7010/03P/ST
PXP7010/06P/ST
PXP7010/10P/CR
PXP7010/32P/CR
Socket Contacts
PXP7010/02S/ST
PXP7010/03S/ST
PXP7010/06S/ST
PXP7010/10S/CR
PXP7010/32S/CR
Contacts
Supplied Fitted
Supplied Fitted
Supplied Fitted
Contact Required
Contact Required
In-line Flex Cable Connector
Mates with Flex Cable
connector PXP7010
For in-line cable connection
Pin or socket versions
Leading earth on 3 pole
connectors
2, 3, 6, 10 and 32 pole
Screw solder and crimp termination
PXP7011
Poles
2
3
6
10
32
Termination
Screw
Screw
Screw
Crimp / Solder
Crimp / Solder
Pin Contacts
PXP7011/02P/ST
PXP7011/03P/ST
PXP7011/06P/ST
PXP7011/10P/CR
PXP7011/32P/CR
Socket Contacts
PXP7011/02S/ST
PXP7011/03S/ST
PXP7011/06S/ST
PXP7011/10S/CR
PXP7011/32S/CR
Contacts
Supplied Fitted
Supplied Fitted
Supplied Fitted
Contact Required
Contact Required
Front Panel Mounting Connector
PXP7012
Mates with Flex Cable
connectors PXP7010
Front panel mounting
Single hole fixing
Pin or socket versions
Leading earth on 3 pole
connectors
2, 3, 6, 10 and 32 pole
Screw solder and crimp termination
Poles
2
3
6
10
32
Termination
Screw
Screw
Screw
Crimp / Solder
Crimp / Solder
Pin Contacts
PXP7012/02P/ST
PXP7012/03P/ST
PXP7012/06P/ST
PXP7012/10P/CR
PXP7012/32P/CR
Socket Contacts
PXP7012/02S/ST
PXP7012/03S/ST
PXP7012/06S/ST
PXP7012/10S/CR
PXP7012/32S/CR
Contacts
Supplied Fitted
Supplied Fitted
Supplied Fitted
Contact Required
Contact Required
56 Circular Power Connectors
7000 Series Buccaneer

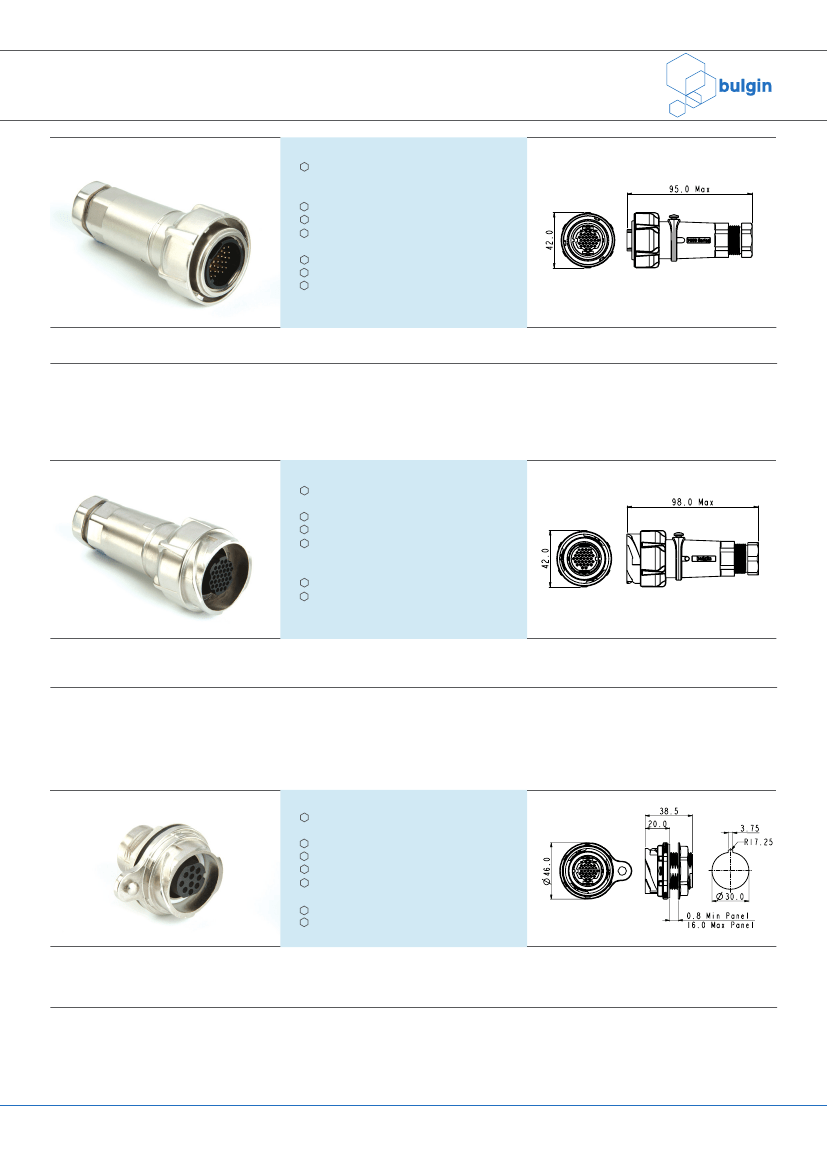

Metal Version
Flex Cable Connector
Mates with In-Line Flex or Panel
Mounting versions PXM7011 &
PXM7012
Quick turn locking ring
Pin or socket versions
Leading earth on 3 pole
connectors
2, 3, 6, 10 & 32 pole
Screw solder and crimp termination
Cable braid termination accessory
option, add /SNsuffix
BUCCANEER FOR POWER
PXM7010
Poles
2
3
6
10
32
Termination
Screw
Screw
Screw
Crimp / Solder
Crimp / Solder
Pin Contacts
PXM7010/02P/ST
PXM7010/03P/ST
PXM7010/06P/ST
PXM7010/10P/CR
PXM7010/32P/CR
Socket Contacts
PXM7010/02S/ST
PXM7010/03S/ST
PXM7010/06S/ST
PXM7010/10S/CR
PXM7010/32S/CR
Contacts
Supplied Fitted
Supplied Fitted
Supplied Fitted
Contact Required
Contact Required
In-line Flex Cable Connector
Mates with Flex Cable connector
PXM7010
For in-line cable connection
Pin or socket versions
Leading earth on 3 pole
connectors
2, 3, 6, 10 and 32 pole
Screw solder and crimp termination
Cable braid termination accessory
option, add /SNsuffix
PXM7011
Poles
2
3
6
10
32
Termination
Screw
Screw
Screw
Crimp / Solder
Crimp / Solder
Pin Contacts
PXM7011/02P/ST
PXM7011/03P/ST
PXM7011/06P/ST
PXM7011/10P/CR
PXM7011/32P/CR
Socket Contacts
PXM7011/02S/ST
PXM7011/03S/ST
PXM7011/06S/ST
PXM7011/10S/CR
PXM7011/32S/CR
Contacts
Supplied Fitted
Supplied Fitted
Supplied Fitted
Contact Required
Contact Required
Front Panel Mounting Connector
Mates with Flex Cable connectors
PXM7010
Front panel mounting
Single hole fixing
Pin or socket versions
Leading earth on 3 pole
connectors
2, 3, 6, 10 and 32 pole
Screw solder and crimp termination
PXM7012
Poles
2
3
6
10
32
Termination
Screw
Screw
Screw
Crimp / Solder
Crimp / Solder
Pin Contacts
PXM7012/02P/ST
PXM7012/03P/ST
PXM7012/06P/ST
PXM7012/10P/CR
PXM7012/32P/CR
Socket Contacts
PXM7012/02S/ST
PXM7012/03S/ST
PXM7012/06S/ST
PXM7012/10S/CR
PXM7012/32S/CR
Contacts
Supplied Fitted
Supplied Fitted
Supplied Fitted
Contact Required
Contact Required
Circular Power Connectors 57
7000 Series Buccaneer
Accessories
Crimp / Solder Contacts
Gold Plated
Current ratings:
10 pole: 10A
32 pole: 2A
Contacts (for 10 pole)
(Supplied in packs of 10)
Pins
Sockets
Contacts (for 32 pole)
(Supplied in packs of 10)
Pins
Sockets
Crimp
SA3544/P
SA3544/S
Crimp
SA3542/P
SA3542/S
Solder
SA3623/P
SA3623/S
Solder
SA3622/P
SA3622/S
BUCCANEER FOR POWER
10 & 32 pole contacts
Crimp Tooling
Crimp Tooling
Crimp Tool (10 & 32 pole)
Positioner (10 pole)
Positioner (32 pole)
PNo. 14025
PNo. 15021/SP
PNo. 15019/SP
Crimp Tools for 10 and 32
pole crimp contacts
PNo 14025
Extraction Tools
Extraction Tools
Extraction tool (10 pole)
Extraction tool (32 pole)
PNo. 14945/SP
PNo. 14944/SP
Extraction tool for 10 and 32
pole contacts
PNo 14944/SP
PNo 14945/SP

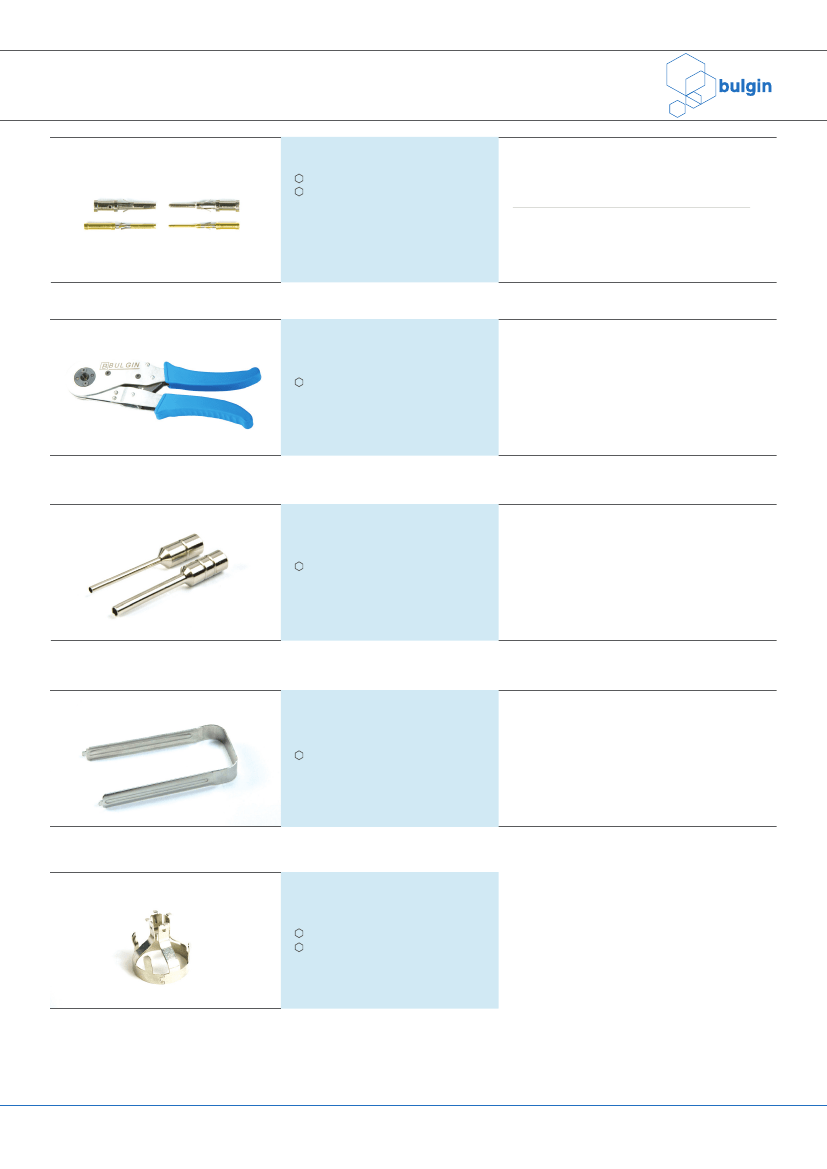

Contact Carrier Removal Tool
Contact Carrier Removal Tool
Contact carrier removal tool
(all poles)
For removal of all contact
carriers
PNo. 15065/SP
PNo 15065/SP
Cable Braid Termination Option
For cable braid termination
Supplied with ty-rap
PXM7090
58 Circular Power Connectors
7000 Series Buccaneer
Accessories

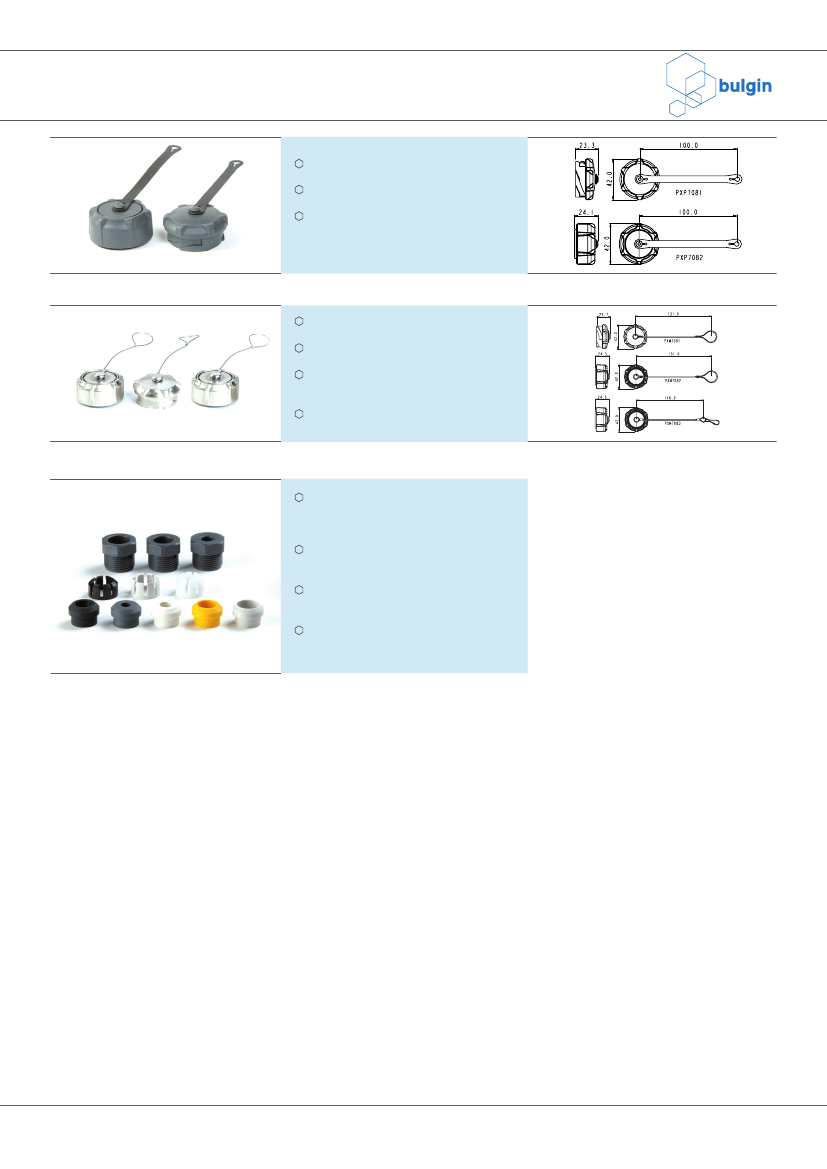

Sealing Caps
Maintains IP rating of unmat-
ed connectors
PXP7081: Fits PXP7010 (Flex
Connector)
PXP7082: Fits PXP7011
(FlexIn-Line Connector) and
PXP7012: (Panel Connector)
PXP7082
PXP7081
BUCCANEER FOR POWER
Sealing Caps
PXM7082
PXM7081
PXM7083
Maintains IP rating of unmat-
ed connectors
PXM7081: Fits PXM7010
(FlexConnector)
PXM7082: Fits PXM7011
(Flex In-Line Connector) and
PXP7012: (Panel Connector)
PXM7083: Fits PXM7012
(Panel Mounting Connector)
Cable Gland Packs
PXP7088/ *
Packs of cable glands, cages
and gland nuts to suit cables
ranges from 5.0 to 15.0mm
diameter
PXP7088/0507: for cable
ranges between 5.0 and
7.0mm
PXP7088/0713: for cable
ranges between 7.0 and
13.0mm
PXP7088/1315: for cable
ranges between 13.0 and
15.0mm
Circular Power Connectors 59
