PI3B3245Q: DescriptionCBTLV/3B SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20; Categorylogic logic; File Size188KB，5 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI3B3245Q Overview

CBTLV/3B SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20

PI3B3245Q Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	QSOP
package instruction	QSOP-20
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BUS SWITCH
series	CBTLV/3B
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	8.65 mm
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
power supply	3.3 V
propagation delay (tpd)	0.25 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	3.63 V
Minimum supply voltage (Vsup)	2.97 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321

PI3B3245

3.3V, Hot Insertion

8-Bit, 2-Port,

NanoSwitch™

Features

• Near-Zero propagation delay

• 5-ohm switches connect inputs to outputs

• Fast Switching Speed - 4.5ns max.

• Ultra Low Quiescent Power (0.2µA Typical)

– Ideally suited for notebook applications

• TTL-compatible control of inputs levels

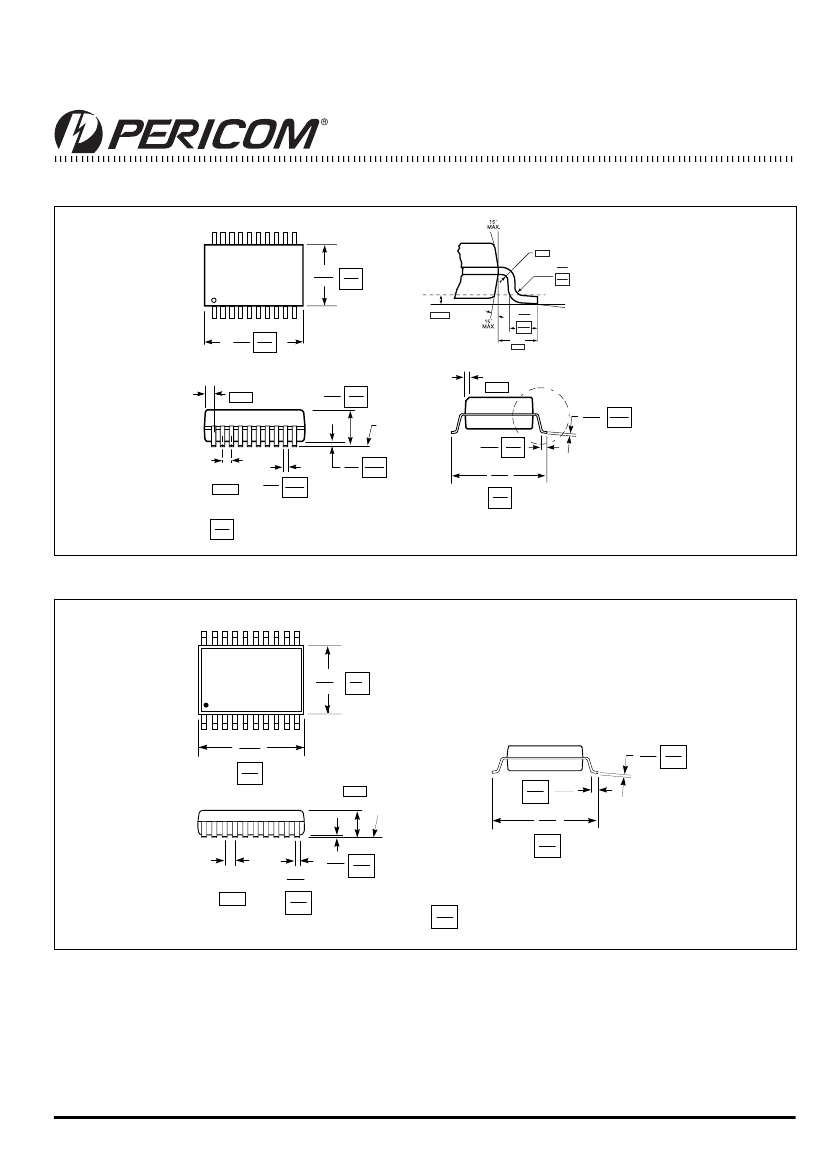

• Packaging (Pb-free & Green available):

– 20-pin QSOP (Q)

– 20-pin TSSOP (L)

– 20-pin SOIC (S)

Description

Pericom Semiconductor’s PI3B3245 is a 3.3V 8-bit, 2-port bus switch

designed with a low On-Resistance (5-ohm) allowing inputs to be

connected directly to outputs. The bus switch creates no additional

propagational delay or additional ground bounce noise. The switches

are turned ON by the Bus Enable (BE) input signal.

Block Diagram

Pin Configuration

GND

Truth Table

(1)

Function

Disconnect

Connect

0–7

Hi-Z

0–7

Pin Description

Pin Name

A0–7

B0–7

GND

Description

Bus Enable Input (Active LOW)

Bus A

Bus B

Ground

Power

Notes:

H = High Voltage Level

L = Low Voltage Level

Hi-Z = High Impedance

PS8162F

09/23/04

PI3B3245Q Related Products

	PI3B3245Q	PI3B3245	PI3B3245QE	PI3B3245L	PI3B3245SE	PI3B3245S
Description	CBTLV/3B SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	CBTLV/3B SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	CBTLV/3B SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	CBTLV/3B SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	CBTLV/3B SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20	CBTLV/3B SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20
series	CBTLV/3B	CBTLV/3B	CBTLV/3B	CBTLV/3B	CBTLV/3B	CBTLV/3B
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 Cel	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-ST	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
surface mount	YES	Yes	YES	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	-	conform to	incompatible	conform to	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	-	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	QSOP	-	QSOP	TSSOP	SOIC	SOIC
package instruction	QSOP-20	-	SSOP, SSOP20,.25	TSSOP, TSSOP20,.25	SSOP, SOP20,.4	SSOP, SOP20,.4
Contacts	20	-	20	20	20	20
Reach Compliance Code	compliant	-	compliant	compli	compli	compli
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDSO-G20	-	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	-	e3	e0	e3	e0
length	8.65 mm	-	8.65 mm	6.5 mm	7.2 mm	7.2 mm
Logic integrated circuit type	BUS DRIVER	-	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Humidity sensitivity level	1	-	1	1	1	1
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	-	SSOP	TSSOP	SSOP	SSOP
Encapsulate equivalent code	SSOP20,.25	-	SSOP20,.25	TSSOP20,.25	SOP20,.4	SOP20,.4
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	-	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240	-	260	240	260	240
power supply	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V
propagation delay (tpd)	0.25 ns	-	0.25 ns	0.25 ns	0.25 ns	0.25 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	-	1.75 mm	1.2 mm	2 mm	2 mm
Maximum supply voltage (Vsup)	3.63 V	-	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage (Vsup)	2.97 V	-	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage (Vsup)	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	-	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	MATTE TIN	Tin/Lead (Sn/Pb)
Terminal pitch	0.635 mm	-	0.635 mm	0.65 mm	0.65 mm	0.65 mm
Maximum time at peak reflow temperature	30	-	40	30	40	30
width	3.9 mm	-	3.9 mm	4.4 mm	5.3 mm	5.3 mm
