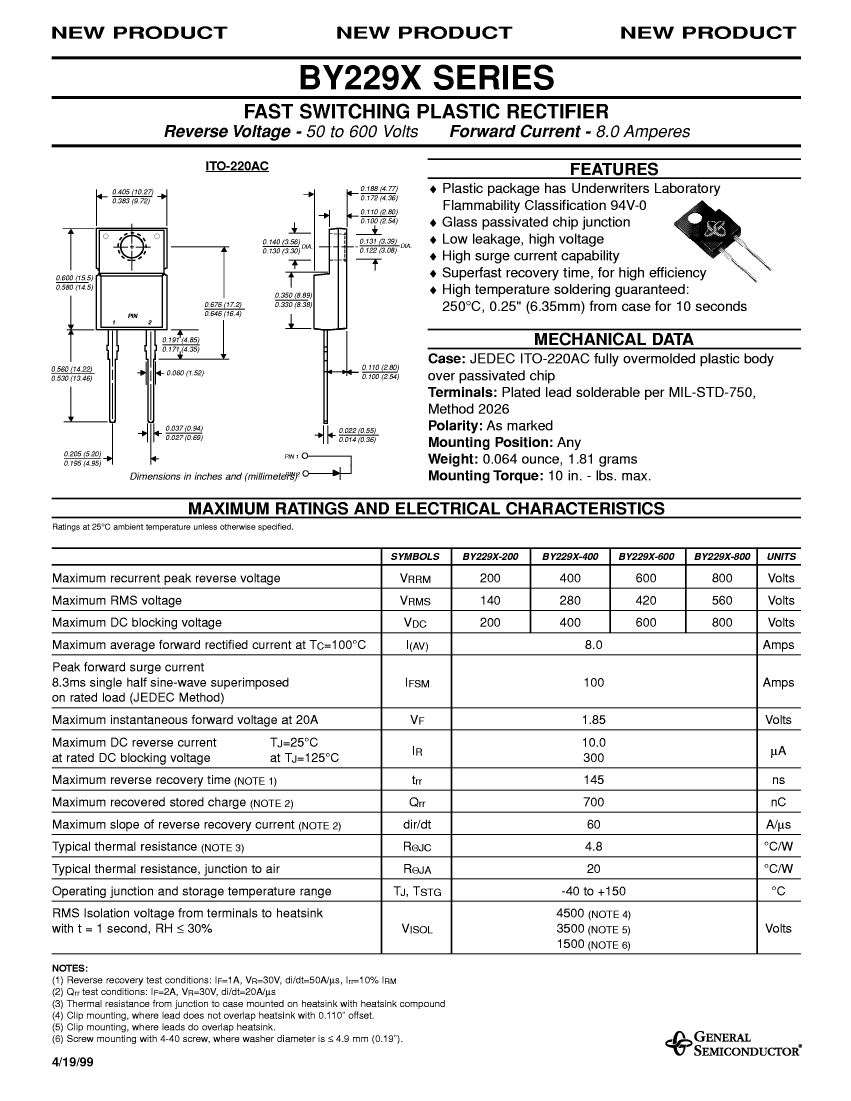

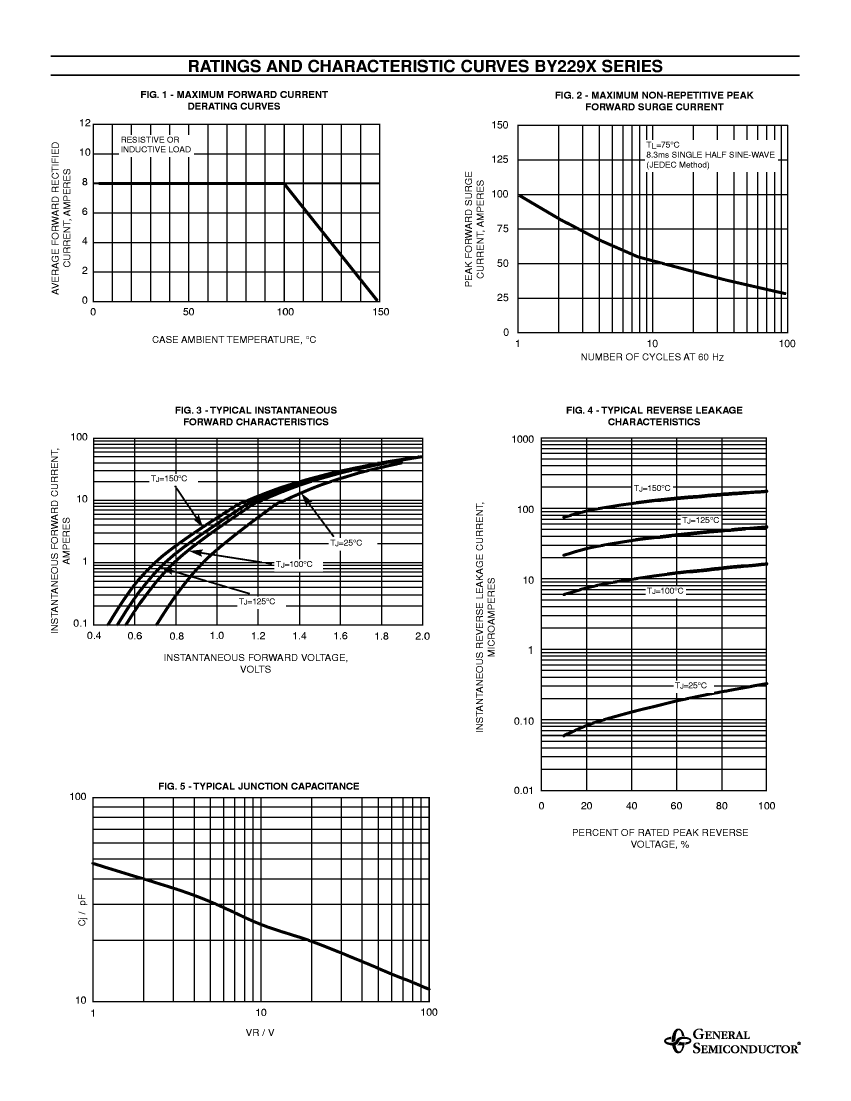

Rectifier Diode, 1 Phase, 1 Element, 8A, 800V V(RRM), Silicon, PLASTIC, ITO-220AC, FULL PACK-2
| Parameter Name | Attribute value |
| Maker | General Instrument Corp |
| package instruction | PLASTIC, ITO-220AC, FULL PACK-2 |
| Reach Compliance Code | unknown |
| application | EFFICIENCY |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JESD-30 code | R-PSFM-T2 |
| Maximum non-repetitive peak forward current | 100 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum output current | 8 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V |
| Maximum reverse recovery time | 0.145 µs |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Base Number Matches | 1 |
| BY229X-800 | BY229X | BY229X-600 | BY229X-200 | BY229X-400 | |
|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 8A, 800V V(RRM), Silicon, PLASTIC, ITO-220AC, FULL PACK-2 | Rectifier Diode, 1 Phase, 1 Element, 8A, Silicon, | Rectifier Diode, 1 Phase, 1 Element, 8A, 600V V(RRM), Silicon, PLASTIC, ITO-220AC, FULL PACK-2 | Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, PLASTIC, ITO-220AC, FULL PACK-2 | Rectifier Diode, 1 Phase, 1 Element, 8A, 400V V(RRM), Silicon, PLASTIC, ITO-220AC, FULL PACK-2 |
| Maker | General Instrument Corp | General Instrument Corp | General Instrument Corp | General Instrument Corp | General Instrument Corp |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| application | EFFICIENCY | EFFICIENCY | EFFICIENCY | EFFICIENCY | EFFICIENCY |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JESD-30 code | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 |
| Maximum non-repetitive peak forward current | 100 A | 100 A | 100 A | 100 A | 100 A |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 |
| Maximum output current | 8 A | 8 A | 8 A | 8 A | 8 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum reverse recovery time | 0.145 µs | 0.145 µs | 0.145 µs | 0.145 µs | 0.145 µs |
| surface mount | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| package instruction | PLASTIC, ITO-220AC, FULL PACK-2 | - | PLASTIC, ITO-220AC, FULL PACK-2 | PLASTIC, ITO-220AC, FULL PACK-2 | PLASTIC, ITO-220AC, FULL PACK-2 |
| Maximum repetitive peak reverse voltage | 800 V | - | 600 V | 200 V | 400 V |
| Base Number Matches | 1 | 1 | 1 | - | - |
