144680 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 144680

144680: DescriptionBoard to Board & Mezzanine Connectors 50P 1MM HS MLE VERT SMT B-B MEZZ 2 ROW; CategoryThe connector The connector; File Size126KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

144680 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	144680	-	-	View	Buy Now

144680 Overview

Board to Board & Mezzanine Connectors 50P 1MM HS MLE VERT SMT B-B MEZZ 2 ROW

144680 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	18 GROUND CONTACTS
Board mount options	LOCATING POSTS
body width	0.222 inch
subject depth	0.189 inch
body length	1.061 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulation resistance	10000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Match contact row spacing	0.059 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.4986 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Evacuation force-minimum value	.5004 N

Preview

Download Datasheet

View All

26,95

8,95

Angsaughaube

5,85

4,6

Verpackt im Gurt nach DIN IEC 60286-3

Tape on Reel Packaging according to DIN IEC 60286-3

Verpackungseinheit: 400 Stück

hood

1,62

Packaging unit: 400 pcs

7,07

2,9

0,5

b25

0,65

0,6

4,8

6,42

0,8

3,675

330

Abspulrichtung -

Reel off Direction

a25

24 x 1 = 24

1,5

Leiterplatten-Layout Vorschlag /

PCB-Layout proposal

±0,03

0,85

0,65

0,9

±0,03

8 x 3 = 24

0,8

0,7

±0,03

Anforderungsstufe 1

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

4,45

1,5

0,7

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

5:1

0,5

24 x 1 = 24

0,85

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

28.01.2014

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

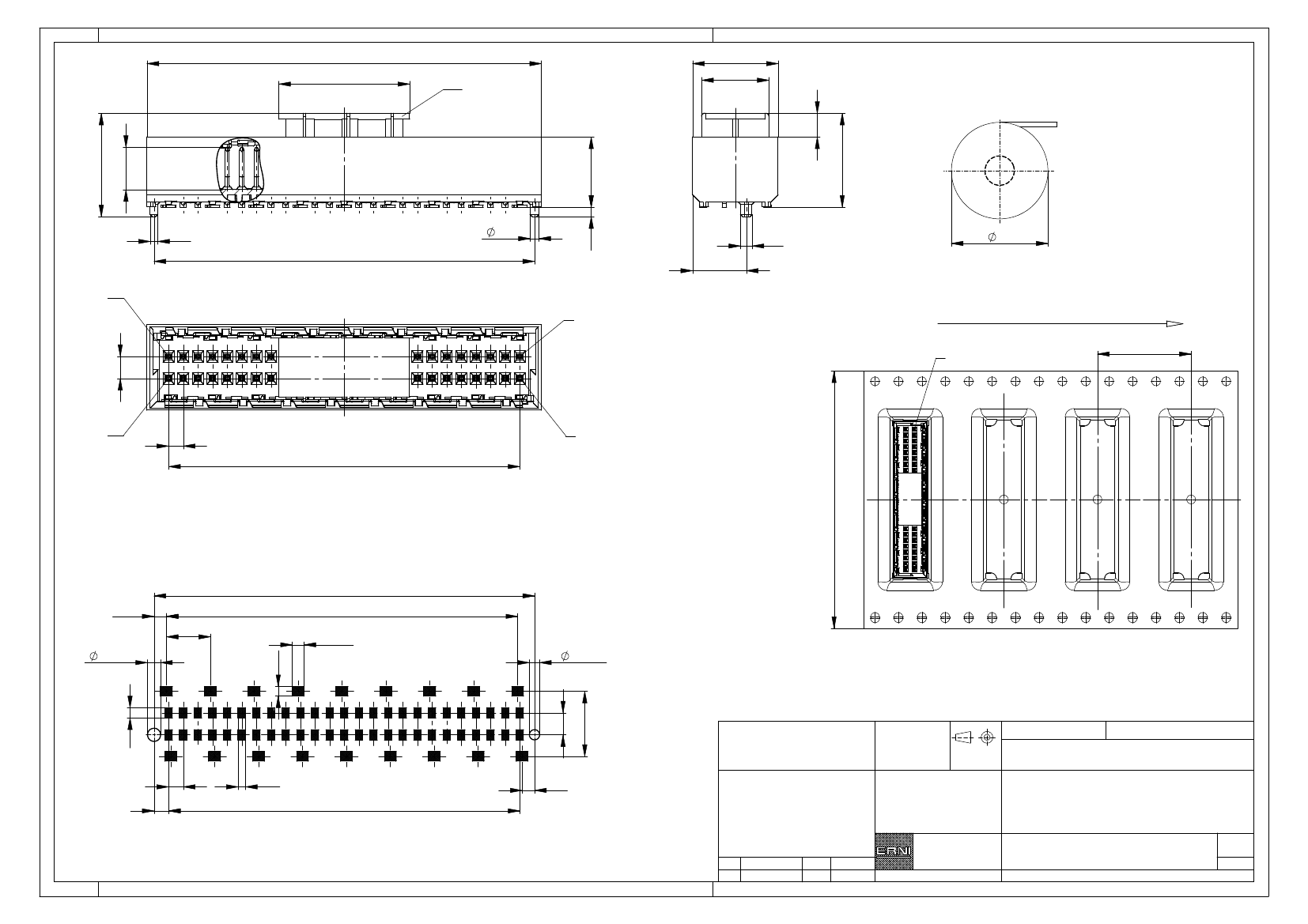

Messerleiste 1mm SMD, 50 polig

Male 1mm SMD, 50 contacts

www.ERNI.com

Class

1.) Durchmesser des Bohrers /

Drill tool

144680

MSPEED
