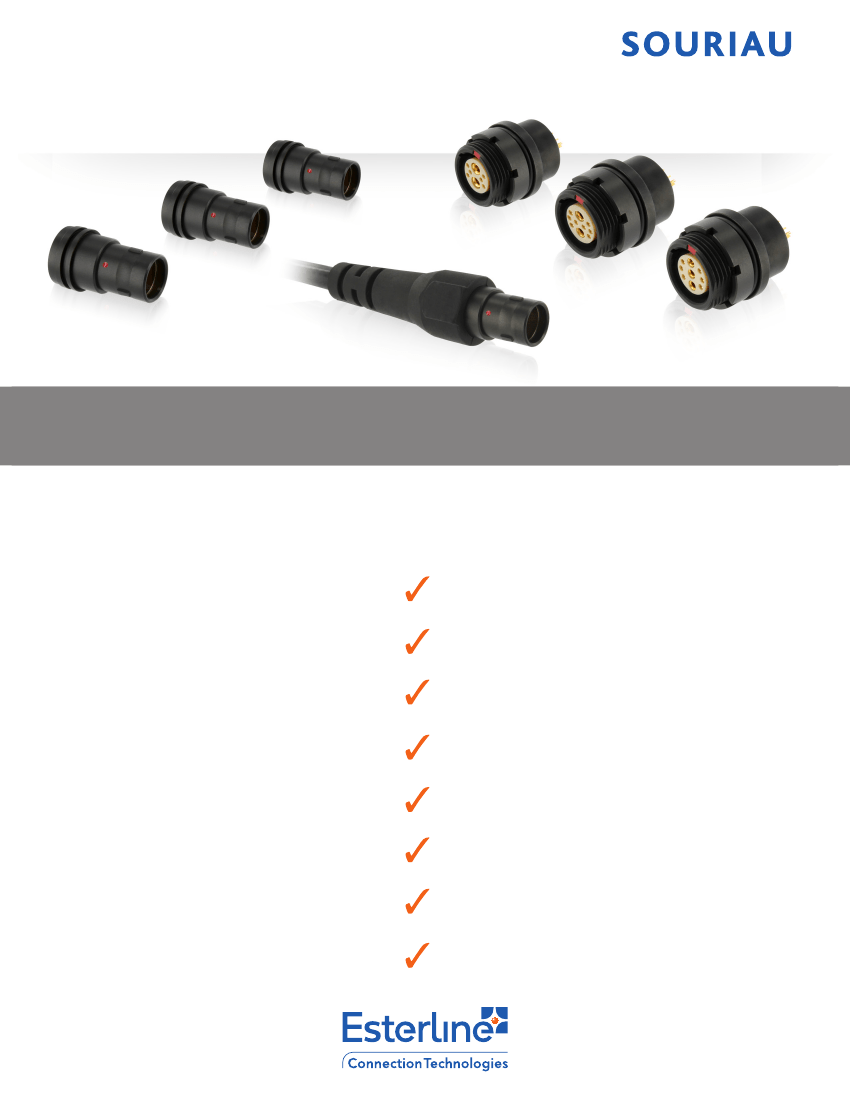

JDX Hybrid
Mixed Power & Signal
Mixed Power and Signal Waterproof Connector
Integrated Backshell Fire proof Connector

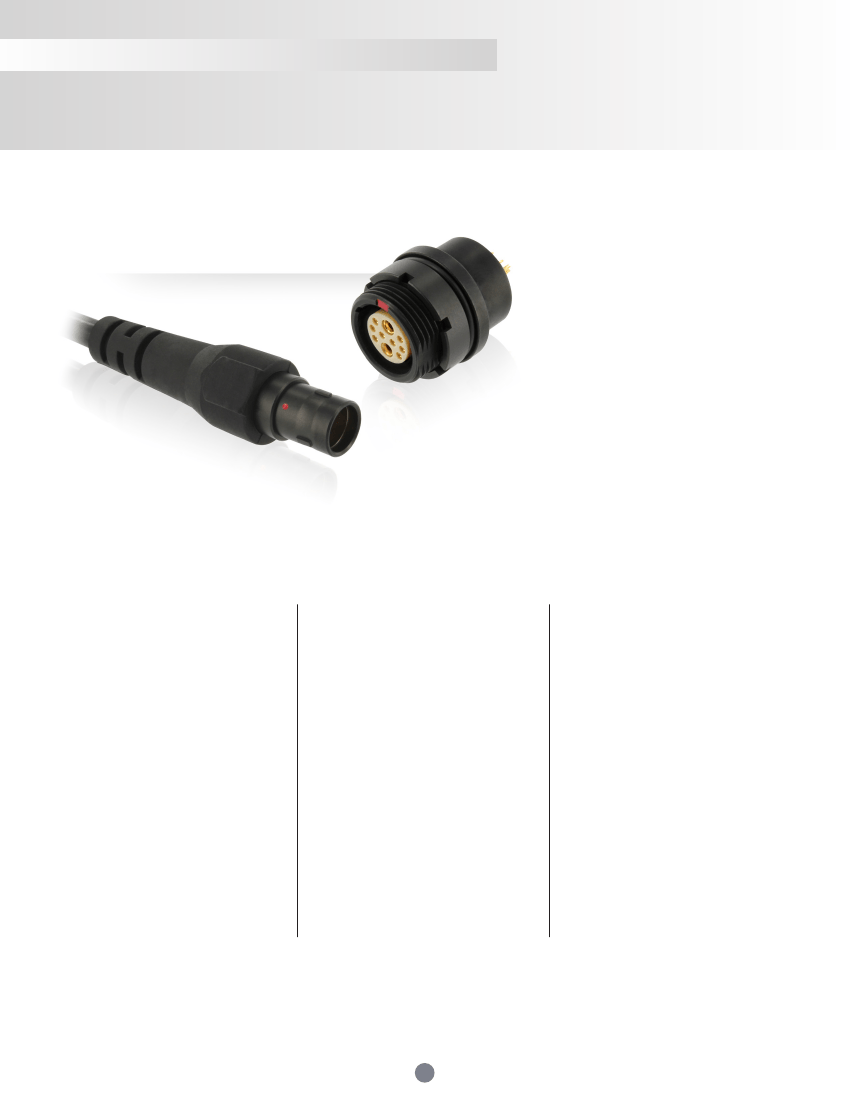

The JDX mixed power and signal connector offers the ability to integrate
2 or 3 power contacts with 6 to 8 signal contacts in one connector housing
Mixed power & signal layout
Secure for Outdoor applications
Quick Release Breakaway Coupler
Rugged
Flexible
Confirmed Mating
Space Savings
Shielding
Single Connector Solution for simplified cabling
Waterproof, IP68 (Mated and Unmated)
Disengages at specified pull force levels for
safe quick disconnects
Robust to withstand Harshest Environments
3 Layouts Available for multiple applications
Audible, Tactile, Visual
Small footprint, allows access
in tight applications
360° EMI Shielding
JDX Hybrid
Mixed Power & Signal
Description
• Mixed power & signal rugged sealed
connector for high vibration and shock
environments for both indoor and outdoor
applications
• Waterproof, IP68 (Mated and Unmated)
• Shell available in Brass and Lightweight
Aluminum
• Available in Shell Size 2
• 3 layouts for multiple applications
- 2P + 6S (2 Power + 6 Signal)
- 2P + 8S (2 Power + 8 Signal)
- 3P + 6S (3 Power + 6 Signal)
Applications
• SOURIAU Sealed connectors can be used
in a variety of markets including Industrial,
Instrumentation, Medical, Mil-Aero,
Broadcast Entertainment and
Telecommunications.
Technical Information
Materials
•
Shell:
Brass or Aluminum
•
Shell Plating:
Black Chrome over Nickel
•
Insulator:
PEEK with1
5% Glass filled
•
Contacts:
Brass
•
Contacts Plating:
Gold over Nickel
•
Operating Voltage:
see chart on Page 4
•
Potting Seal:
Epoxy Potting Compound
Electrical
•
Current Rating:
see chart on Page 3 & 4
•
Contact Resistance:
see chart on Page 4
•
Insulation Resistance:
500 MΩ
•
Dielectric Withstanding Voltage:
see chart on Page 4
Environmental
•
Operating Temperature:
-40°C to +1
25°C
•
Salt Spray Resistance:
96 hours
•
Sealing:
IP68 (Mated & Unmated)
•
RoHS Compliant
Mechanical
•
Endurance:
Shell: 2500 mating/unmating
Contacts: 1000 mating/unmating
•
Vibration:
10 - 2000 HZ
(per EIA 364)
•
Shock:
50g duration 6ms
(per MIL STD 1
344A)
• Autoclavable
2
JDX Hybrid
Mixed Power & Signal
Technical Information
2P + 6S
Connector rating:
• Power Contact: 26A at 30˚C T-Rise
• Signal Contact: 2A
140
120

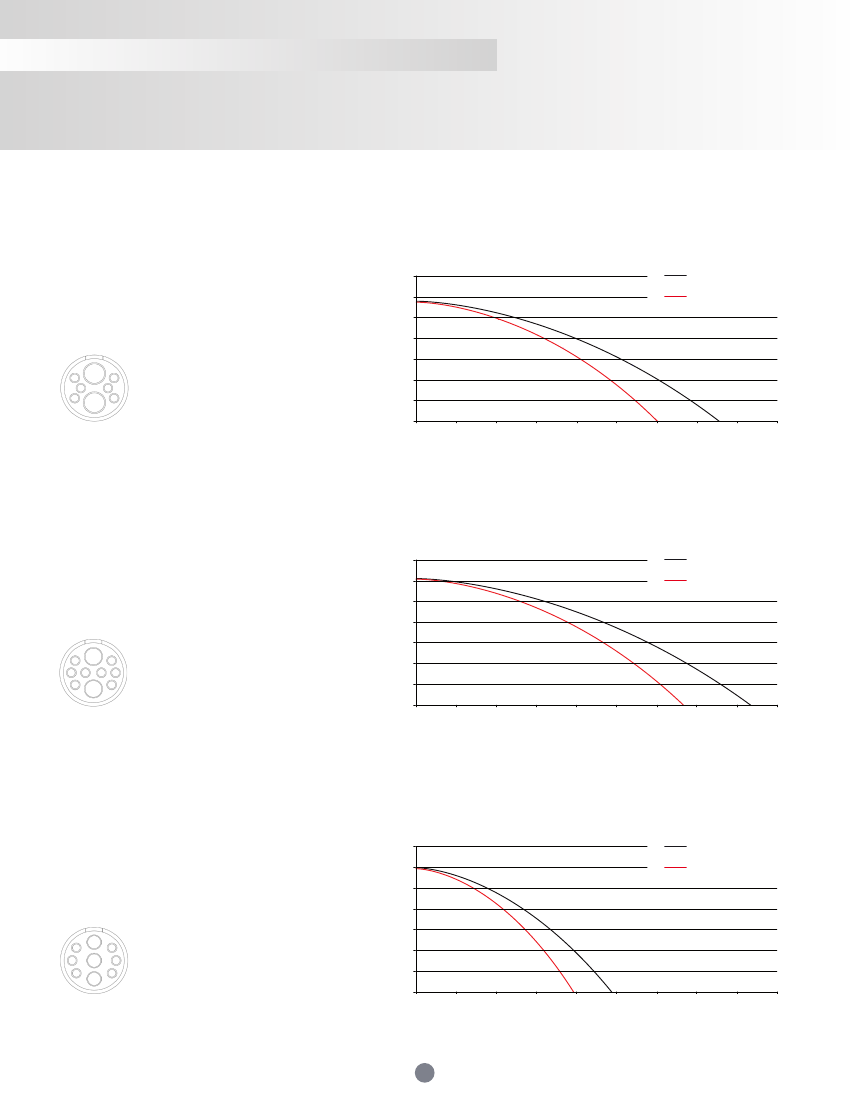

Power Derating curve - Signal Contact Fixed at 2A
Max temp use
Recommended use
Connector layout:
(temperature °C)
100
80
60
40
20
0
0
5
10
15
20
25
30
35
40
45
Current for Power contact (A)
Signal Contact (cable awg 26) is powered at 2A
Power Contact (cable awg 16): 0 to 35 A
2P + 8S
Connector rating:
• Power Contact: 26A at 30˚C T-Rise
• Signal Contact: 2A
140
120
Power Derating curve - Signal Contact Fixed at 2A
Max temp use
Recommended use
Connector layout:
(temperature °C)
100
80
60
40
20
0
0
5
10
15
20
25
30
35
40
45
Current for Power Contact (A)
Signal Contact (cable awg 26) is powered at 2A,
Power Contact (cable awg 18): 0 to 40 A
3P + 6S
Connector rating:
• Power Contact: 1 at 30˚C T-Rise
7A
• Signal Contact: 2A
(temperature °C)
140
120
100
80
60
40
20
0
0
Power Derating curve - Signal Contact Fixed at 2A
Max temp use
Recommended use
Connector layout:
5
10
15
20
25
30
35
40
45
Current for Power Contact (A)
Signal Contact (cable awg 26) is powered at 2A,
Power Contact (cable awg 20): 0 to 25 A
3
JDX Hybrid
Mixed Power & Signal

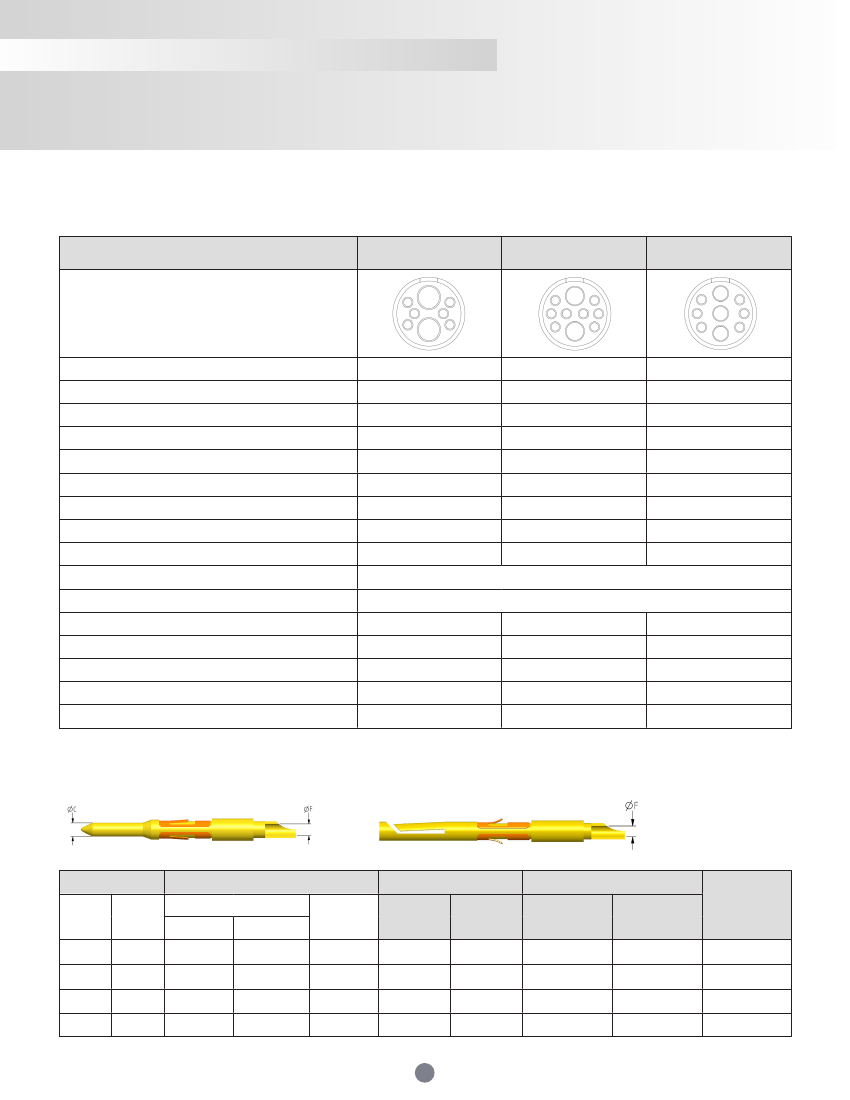

Contact Layouts & Technical Information
Shell size 2
2P+6S
2P+8S
3P+6S
Male Insulator Wire Side
Solder
PCB Straight Tails
Contact Diameter (mm)
Power contact diameter (mm)
Signal contact diameter (mm)
Solder Wire Max. AWG
Power Solder wire Max. AWG
Signal Solder wire Max. AWG
Current Rating
Power current rating
Signal current rating
Contact Resistance (mΩ)
Power contact resistance (mΩ)
Signal contact resistance (mΩ)
Dielectric Withstanding Voltage
Operating Voltage (Vdc/Vrms)
S
P
2.0
0.7
16
26
S
P
1.6
0.7
18
26
See Derating Curve on page 3
See Derating Curve on page 3
S
P
1.3
0.7
20
26
2.5
5
1
500
700/500
2.5
5
1
500
700/500
3
5
1
500
700/500
Contacts
Solder contacts
Contacts
ØC
0.7
1.3
1.6
2.0
ØF
0.7
1.1
1.5
1.9
Min.
-
-
-
-
Usable Cables
Core section (mm²)
Max.
0.3
0.6
0.93
1.34
AWG
26
20
18
16
Current Rating* (A)
Power
Contact
-
1
7
26
26
4
Contact Resistance (mΩ)
Power
Contact
-
3.0
2.5
2.5
Signal
Contact
5
-
-
-
Signal
Contact
2
-
-
-
Endurance
(Cycles)
1000
1000
1000
1000
*see chart on page 3
JDX Hybrid
Mixed Power & Signal

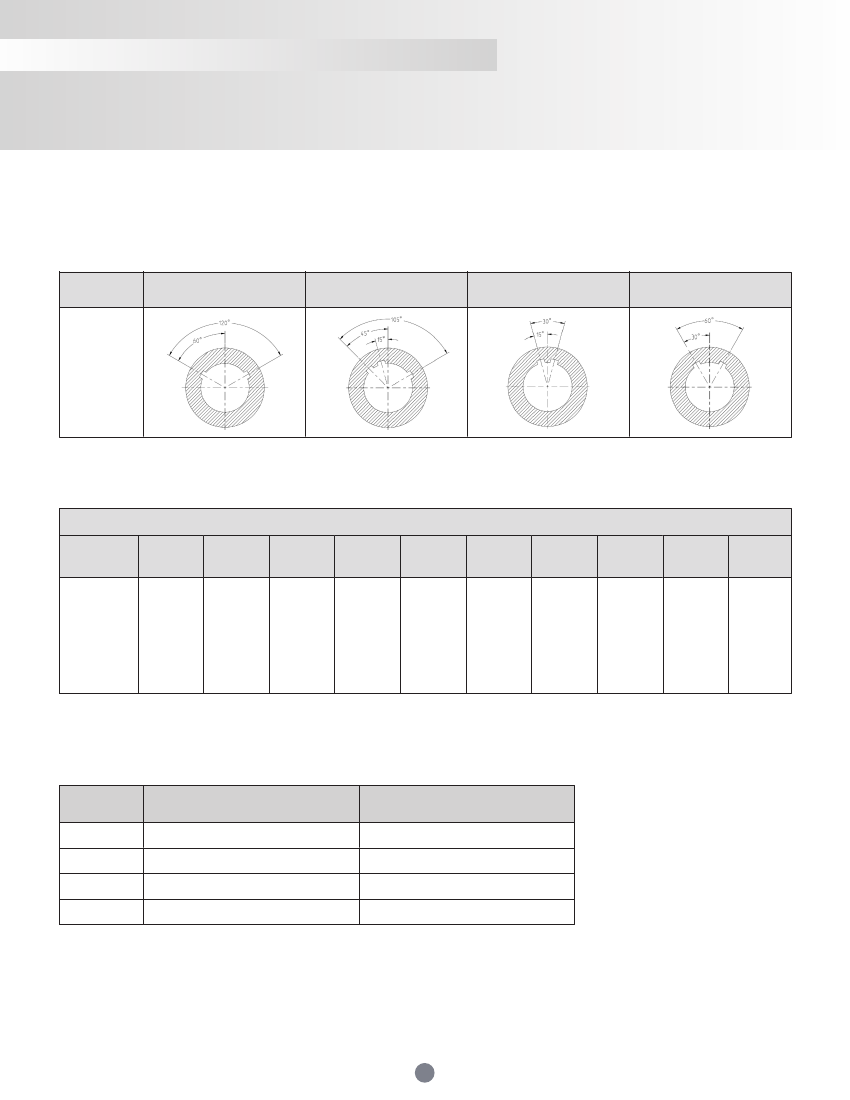

Keying
Keying angles
Key
T
U
A
B
Plug &
Receptacle
Keying shells availability
Shell Styles for Plugs & Receptacles
(see page 8)
Shell size
Key
T
2
U
A
B
●
Available for JDX Series
ED
●
●
○
○
EP
●
●
○
○
EE
●
●
○
○
ER
●
●
○
○
EZ
●
●
○
○
IL
●
●
○
○
FA
●
○
○
○
FB
●
●
○
○
FD
●
●
○
○
Keying color codes
Keying
T
U
A
B
Contacts Standard Gender
Red
White
Green
Blue
Contacts Reverse Gender
Purple
Yellow
Orange
Light Brown
