HM6709AJP-15 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> HM6709AJP-15

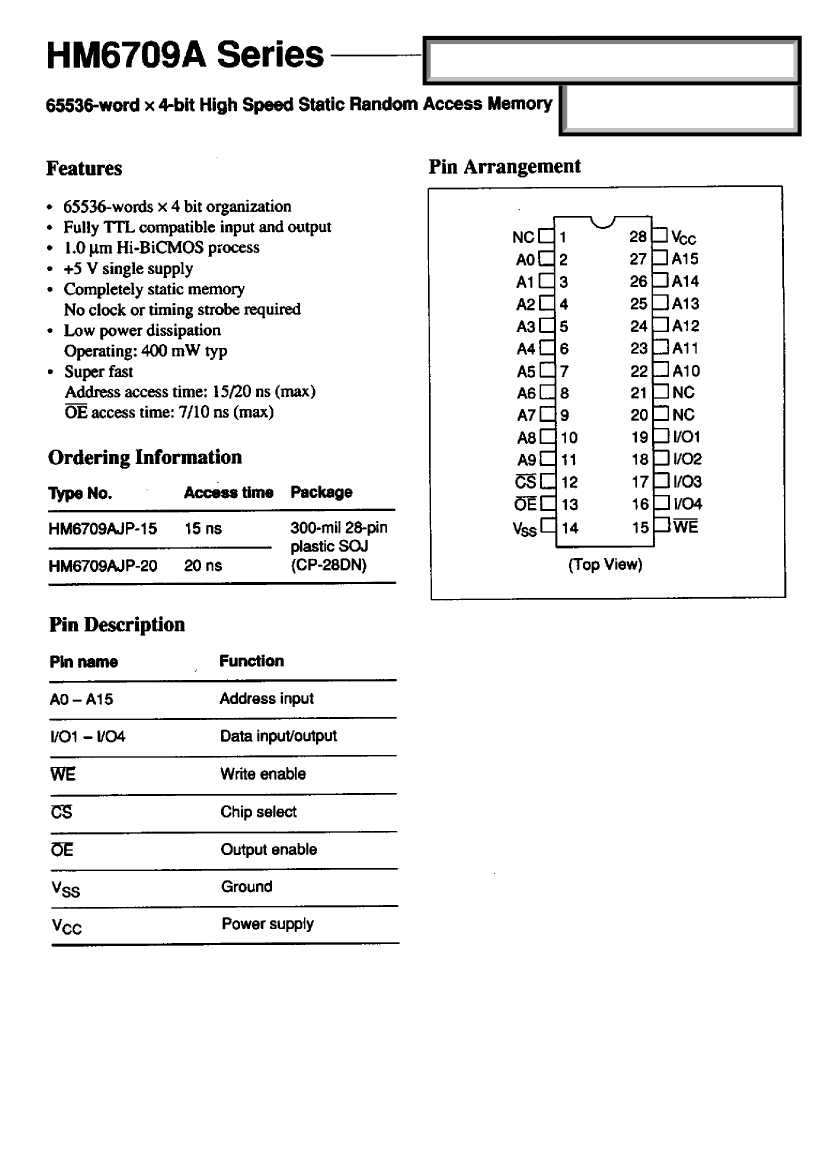

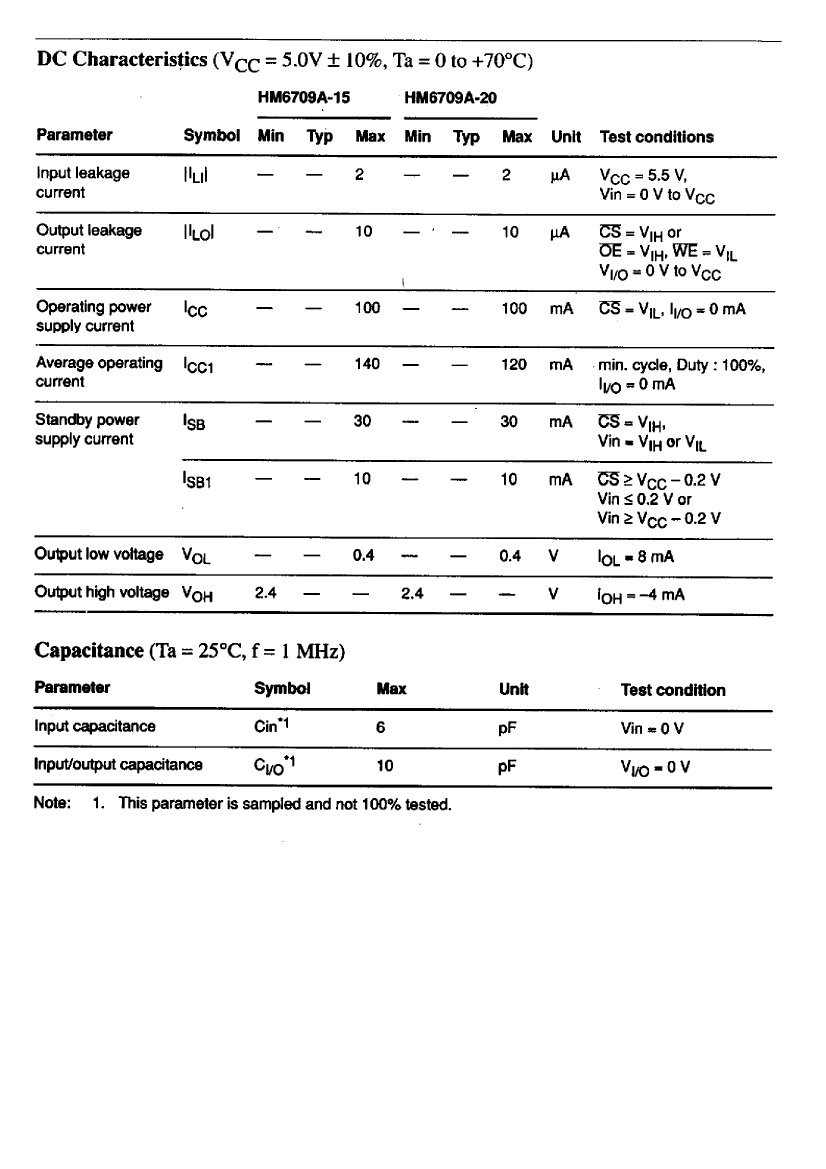

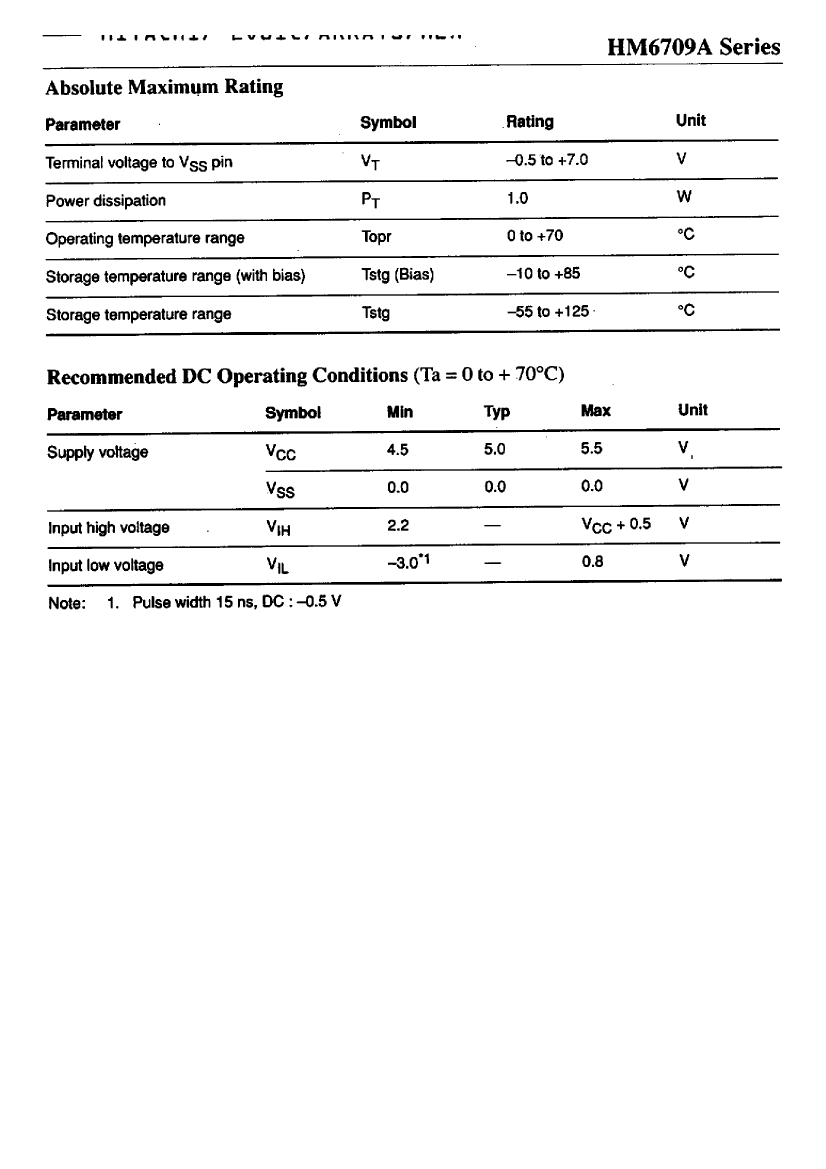

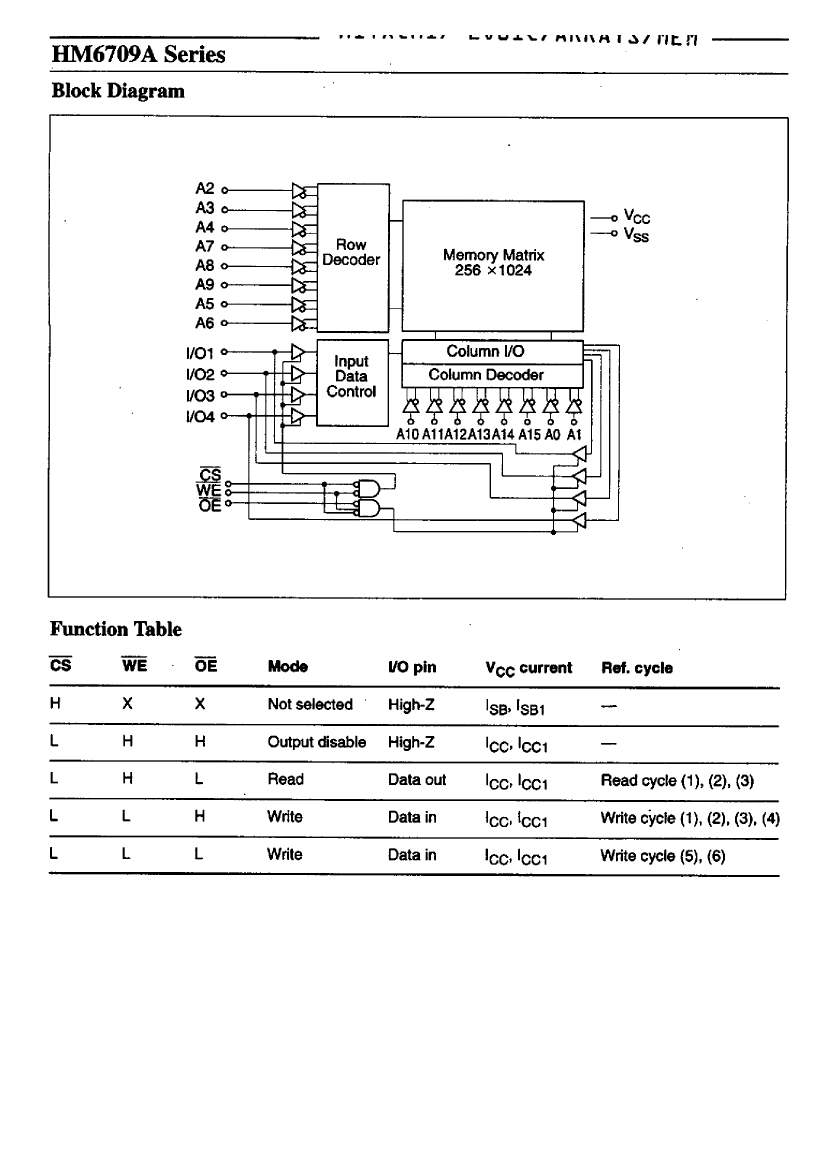

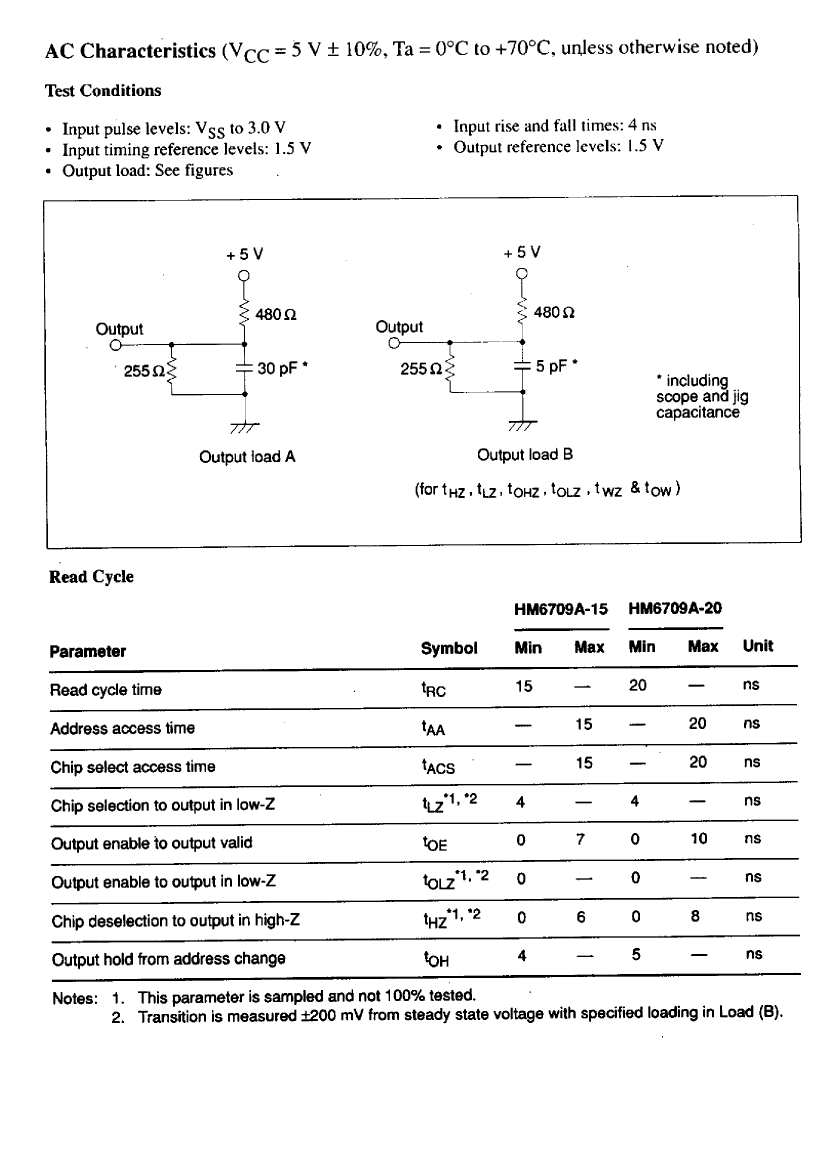

Preview

HM6709AJP-15: Description65536-WORD 4 BIT HIGH SPEED STATIC RANDOM ACCESS MEMORY; Categorystorage storage; File Size406KB，12 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HM6709AJP-15 Overview

65536-WORD 4 BIT HIGH SPEED STATIC RANDOM ACCESS MEMORY

HM6709AJP-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	SOJ
package instruction	SOJ, SOJ28,.34
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	15 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
length	18.17 mm
memory density	262144 bi
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	28
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ28,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.76 mm
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

HM6709AJP-15 Related Products

	HM6709AJP-15	HM6709A	HM6709AJP-20
Description	65536-WORD 4 BIT HIGH SPEED STATIC RANDOM ACCESS MEMORY	65536-WORD 4 BIT HIGH SPEED STATIC RANDOM ACCESS MEMORY	65536-WORD 4 BIT HIGH SPEED STATIC RANDOM ACCESS MEMORY
Is it Rohs certified?	incompatible	-	incompatible
Maker	Hitachi （Renesas ）	-	Hitachi （Renesas ）
Parts packaging code	SOJ	-	SOJ
package instruction	SOJ, SOJ28,.34	-	SOJ, SOJ28,.34
Contacts	28	-	28
Reach Compliance Code	unknow	-	unknow
ECCN code	EAR99	-	EAR99
Maximum access time	15 ns	-	20 ns
I/O type	COMMON	-	COMMON
JESD-30 code	R-PDSO-J28	-	R-PDSO-J28
JESD-609 code	e0	-	e0
length	18.17 mm	-	18.17 mm
memory density	262144 bi	-	262144 bi
Memory IC Type	STANDARD SRAM	-	STANDARD SRAM
memory width	4	-	4
Number of functions	1	-	1
Number of ports	1	-	1
Number of terminals	28	-	28
word count	65536 words	-	65536 words
character code	64000	-	64000
Operating mode	ASYNCHRONOUS	-	ASYNCHRONOUS
Maximum operating temperature	70 °C	-	70 °C
organize	64KX4	-	64KX4
Output characteristics	3-STATE	-	3-STATE
Exportable	YES	-	YES
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOJ	-	SOJ
Encapsulate equivalent code	SOJ28,.34	-	SOJ28,.34
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE
Parallel/Serial	PARALLEL	-	PARALLEL
power supply	5 V	-	5 V
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	3.76 mm	-	3.76 mm
Maximum slew rate	0.12 mA	-	0.12 mA
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	YES	-	YES
technology	BICMOS	-	BICMOS
Temperature level	COMMERCIAL	-	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	J BEND	-	J BEND
Terminal pitch	1.27 mm	-	1.27 mm
Terminal location	DUAL	-	DUAL
width	7.62 mm	-	7.62 mm
