C90-3102R14S-2P datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> C90-3102R14S-2P

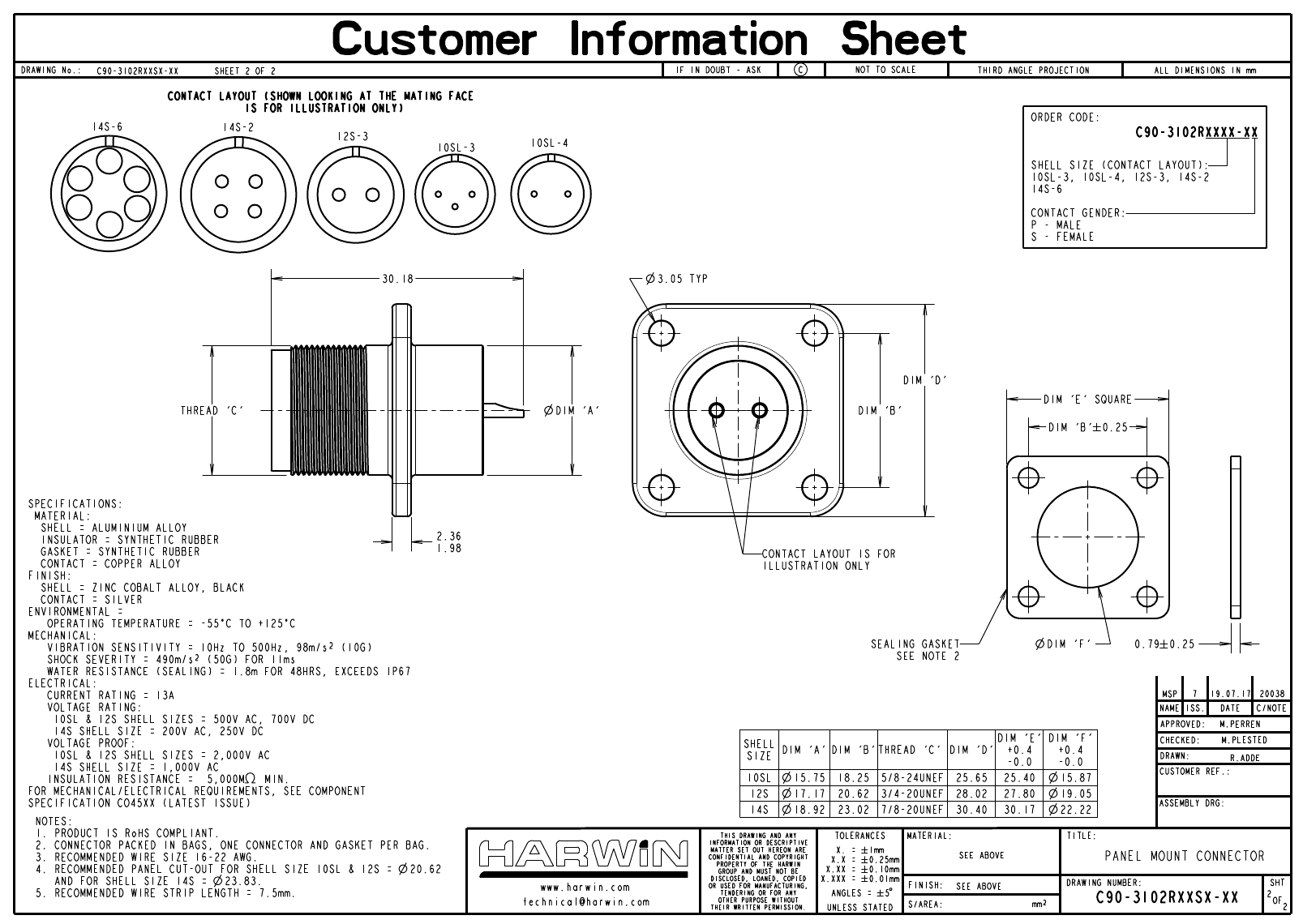

Preview

C90-3102R14S-2P: DescriptionCircular MIL Spec Connector 4P PANEL PLUG MIL-C-5015 COMPTBL; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

C90-3102R14S-2P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C90-3102R14S-2P	-	-	View	Buy Now

C90-3102R14S-2P Overview

Circular MIL Spec Connector 4P PANEL PLUG MIL-C-5015 COMPTBL

C90-3102R14S-2P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-5015, POLARIZED
Back shell type	SOLID
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Silver (Ag)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	MOISTURE/PRESSURE/TEMPERATURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	WATERPROOF
Shell surface	ZINC CHROMATE PLATED
Shell material	ALUMINUM ALLOY
Housing size	14S
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

C90-3102R14S-2P Related Products

	C90-3102R14S-2P	C90-3102R10SL-3P	C90-3102R10SL-4P	C90-3102R14S-6S	C90-3102R12S-3P	C90-3102R10SL-3S	C90-3102R10SL-4S	C90-3102R12S-3S
Description	Circular MIL Spec Connector 4P PANEL PLUG MIL-C-5015 COMPTBL	Circular MIL Spec Connector 3P PANEL PLUG MIL-C-5015 COMPTBL	Circular MIL Spec Connector 2P PANEL PLUG MIL-C-5015 COMPTBL	Circular MIL Spec Connector 6P PANEL SOCKET MIL-C-5015 COMPTBL	Circular MIL Spec Contacts PNL MNT-PIN CONTACTS 3 WAY	Circular MIL Spec Connector 3P PANEL SOCKET MIL-C-5015 COMPTBL	Circular MIL Spec Connector 2P PANEL SOCKET MIL-C-5015 COMPTBL	Circular MIL Spec Contacts PNL MNT-SKT CONTACTS 3 WAY
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: MIL-DTL-5015, POLARIZED	STANDARD: MIL-DTL-5015, POLARIZED	STANDARD: MIL-DTL-5015, POLARIZED	STANDARD: MIL-DTL-5015, POLARIZED	STANDARD: MIL-DTL-5015, POLARIZED	STANDARD: MIL-DTL-5015, POLARIZED	STANDARD: MIL-DTL-5015, POLARIZED	STANDARD: MIL-DTL-5015, POLARIZED
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	FEMALE	MALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Environmental characteristics	MOISTURE/PRESSURE/TEMPERATURE RESISTANT	MOISTURE/PRESSURE/TEMPERATURE RESISTANT	MOISTURE/PRESSURE/TEMPERATURE RESISTANT	MOISTURE/PRESSURE/TEMPERATURE RESISTANT	MOISTURE/PRESSURE/TEMPERATURE RESISTANT	MOISTURE/PRESSURE/TEMPERATURE RESISTANT	MOISTURE/PRESSURE/TEMPERATURE RESISTANT	MOISTURE/PRESSURE/TEMPERATURE RESISTANT
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Options	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF
Shell surface	ZINC CHROMATE PLATED	ZINC CHROMATE PLATED	ZINC CHROMATE PLATED	ZINC CHROMATE PLATED	ZINC CHROMATE PLATED	ZINC CHROMATE PLATED	ZINC CHROMATE PLATED	ZINC CHROMATE PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	14S	10SL	10SL	14S	12S	10SL	10SL	12S
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	3	2	6	2	3	2	2
