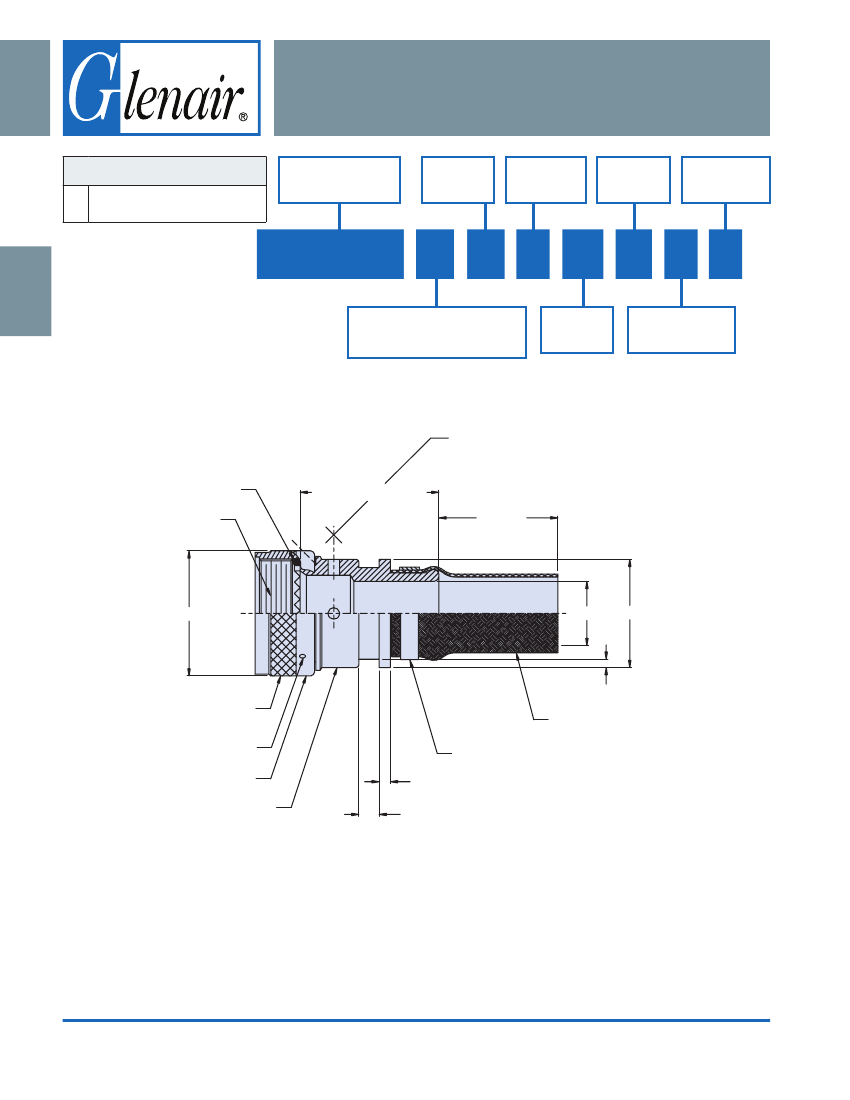

AS85049/115
Straight RFI/EMI Shield-Sock Shrink Boot Adapter
with Optional Self-Locking Coupling Nut
B
AS85049
CONNECTOR DESIGNATOR:
H
MIL-DTL-38999 Series III and IV
EN3645
Product Series and
Basic Part Number
Shell Size
(Table I)
Shield Finish
(Table IV)
Entry Size
(Table II)
Drain Hole
(Omit for None)
M85049/115
S
11
T
W
Finish
(Table III)
03
-
6
D
S
= Detented, Self-Locking
–
= Non-Self-Locking (Use Dash)
N
= Non-Detented, Self-Locking
Braid Length
1 Inch Increments,
6” Min., 18” Max
Drain Holes
(See Note 6)
O-Ring
(See Note 6)
A Thread
1.32 (33.5) Max
Length
±.50 (12.7)
B
W
Z
Y
Knurl Style Mfr
Option - Typ
Wire Holes
(See Note 5)
Coupling Nut
Adapter Body
Single Layer Shield
Termination Band (See Note 3)
.075 (1.9) Ref
.140 (3.56)
.130 (3.30)
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-122
E-Mail: sales@glenair.com
with Optional Self-Locking Coupling Nut
TABLE I: Shell Size
and Dimensions
Shell
Size
09
11
13
15
17
19
21
23
25
A Thread
Class 2B
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
B Max
Diameter
.858 (21.79)
.984 (24.99)
1.157 (29.39)
1.279 (32.49)
1.406 (35.71)
1.516 (38.51)
1.642 (41.71)
1.768 (44.91)
1.889 (47.98)
Allowable
Cable
Entry Size
01
01-03
01-05
03-07
05-09
06-10
08-12
09-13
10-14
TABLE II: Entry Size
and Dimensions
Y
Entry
W
+.008 (.20)
Size ± .020 (.51)
-.000 (.00)
01
02
03
04
05
06
07
08
09
10
11
12
13
14
.250 (6.4)
.312 (7.9)
.375 (9.5)
.438 (11.1)
.500 (12.7)
.562 (14.3)
.625 (15.9)
.688 (17.5)
.750 (19.1)
.812 (20.6)
.875 (22.2)
.938 (23.8)
1.000 (25.4)
1.125 (28.6)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.044 (1.12)
.069 (1.75)
.069 (1.75)
.069 (1.75)
.069 (1.75)
.069 (1.75)
.069 (1.75)
Z
Max
.560 (14.2)
.630 (16.0)
.690 (17.5)
.750 (19.1)
.820 (20.8)
.890 (22.6)
.950 (24.1)
1.020 (25.9)
1.120 (28.4)
1.200 (30.5)
1.270 (32.3)
1.260 (32.0)
1.370 (34.8)
1.470 (37.3)
B
Table III: Symbol and Finish
Symbol
N
W
X
Z
Electroless Nickel
Cadmium/Olive Drab over Electroless
Nickel (1000 Hour Salt Spray)
Nickel Flurocarbon Polymer
Zinc Nickel
Finish
Table IV: Symbol and Finish
Symbol
K
T
Finish
Nickel Plate
Tin Plate
Table V: (Manufacturer’s Option)
Material
Copper
Stainless Steel
Finish
Tin Plate
Passivated
APPLICATION NOTES
1.
2.
3.
Assembly identification with manufactuer’s name and part
number, space permitting.
Metric equivalents are given for general information only and
are based on 1.00 inch = 25.4 mm.
Termination band configuration is not controlled. Band with
buckle may exceed the “Z” dimensions (see Table II) provided
the band does not interfere with boot attachment. Band material
shall be as specified in Table V.
Termination of the accessory shield with harness shield may be
performed with a GS85049/93 shield support ring or similar split
ring accessory types.
5.
Three (3) holes equally spaced shall be provided and
accommodate .020 (0.51) maximum safety wire for the non-
self-locking coupling configuration.
.125 (3.2 mm) diameter drain holes will be provided, 4 places,
equally spaced (Optional, see part number development).
O-Ring not required when drain hole option is specified.
Material/Finish:
Adapter, coupling nut - Al alloy/see Table III.
Termination band - See Table V (manufacturer’s option).
Braid - Copper/see Table IV.
O-Ring - Silicone/N.A.
6.
7.
4.
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-123
E-Mail: sales@glenair.com
AS85049
AS85049/115
Straight RFI/EMI Shield-Sock Shrink Boot Adapter
