74061-1032 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 74061-1032

74061-1032: DescriptionHigh Speed / Modular Connectors VHDM BACKPLANE board-to-board hdr; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74061-1032 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74061-1032	-	-	View	Buy Now

74061-1032 Overview

High Speed / Modular Connectors VHDM BACKPLANE board-to-board hdr

74061-1032 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PANEL MOUNTABLE, POLARIZED, NO OF SHIELD CONTACTS: 10
body width	0.85 inch
subject depth	0.484 inch
body length	1.063 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	18 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	8
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.143 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	90
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

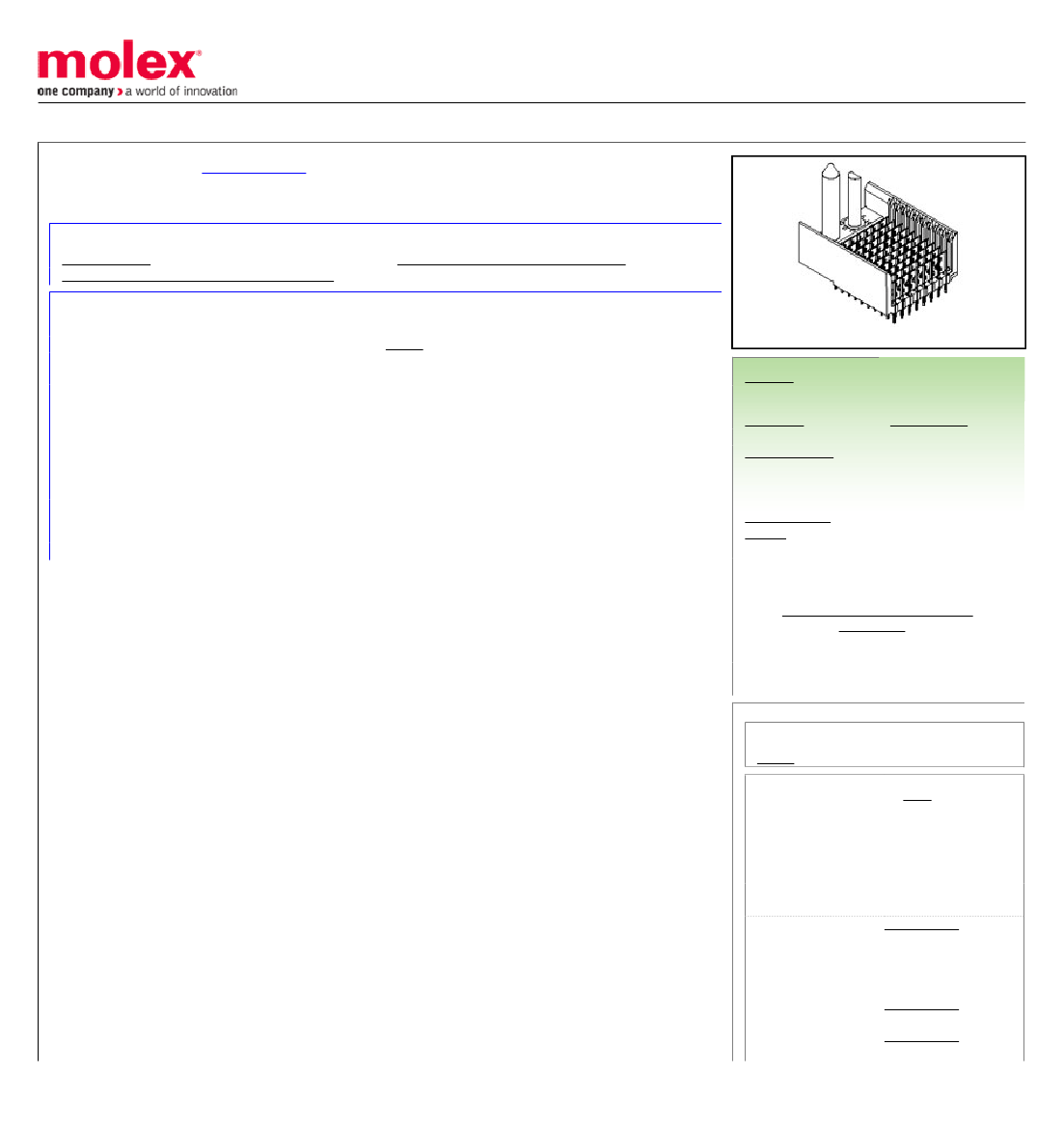

Preview

Download Datasheet

View All

This document was generated on 07/11/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0740611032

Active

VHDM BP 8 ROW SIG END ASSY 10 COL

Documents:

Drawing (PDF)

Packaging Specification PK-74061-003 (PDF)

General

Product Family

Series

Product Family

UPC

Physical

Net Weight

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Packaging Specification

Sales Drawing

RoHS Certificate of Compliance (PDF)

Backplane Connectors

74061

Backplane Connectors

800754807678

9.318/g

N/A

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Compliant

REACH SVHC

Not Contained Per -

ED/21/2016 (20 June

2016)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

50 Image

Not Relevant

PK-74061-003

SD-74061-002

Search Parts in this Series

74061 Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Insertion Module

0622020209

for Standard Shield

Signal Header, 8-

Row by 10-Wide,

20.00mm

Signal Pin Inserter 0622015700

Repair Tool

8-Row Pin and

0622015900

Shield Repair Tool
