Semiconductor
SB1316E-V
Chip LED
Features
•
1.6mm(L)×0.8mm small size surface mount type
•
Thin package of 0.55mm(H) thickness
•
Transparent clear lens optic
•
Low power consumption type chip LED
•
Emitting Light Blue(470nm)
•
E ; ESD Protected (±2.0KV, 3 Times @100pF, 1.5KΩ)
Applications
•
LCD backlighting
•
Keypad backlighting
•
Symbol backlighting
•
Front panel indicator lamp

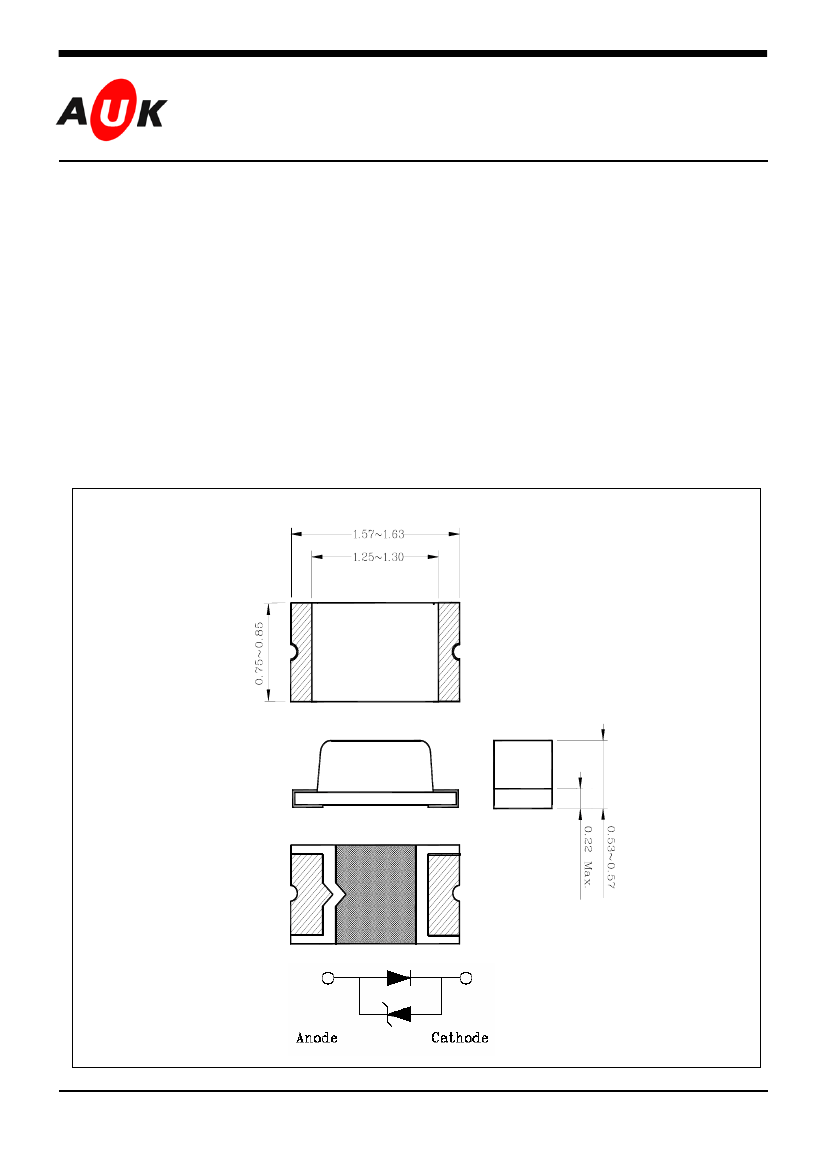

Outline Dimensions
unit :
mm
KSD-O8G003-001
1
SB1316E-V
Absolute Maximum Ratings
Characteristic
Power dissipation
Forward current
*
1
Peak forward current
Operating temperature range
Storage temperature range
(Ta=25
o
C)
Symbol
P
D
I
F
I
FP
T
opr
T
stg
Rating
68
20
50
-25
∼
80
-30
∼
100
Unit
mW
mA
mA
℃
℃
*
2
Soldering temperature
T
sol
240
℃
for 10 seconds
*1. Duty ratio = 1/16, Pulse width = 0.1ms
*2. Recommended reflow soldering temperature profile
- Preheating 150℃ to 185℃ within 120 seconds soldering 240℃ within 10 seconds
Gradual cooling (Avoid quenching)
Temp (℃)
240
Peak Temp max. 240℃
Preheating area
150~185℃, 90±30sec
185
150
max. 3℃/sec
max. 4℃/sec
Time from 25℃ to Peak Temperature max. 6min
0
60
150
180
240
Time (sec)
max. -6℃/sec
max. 10sec
Solder area
220℃, max. 60sec
25
Electrical / Optical Characteristics
Characteristic
Forward voltage
(Ta=25
o
C)
Symbol
V
F
I
V
Test Condition
I
F
= 10mA
I
F
= 10mA
I
F
= 10mA
I
F
= 10mA
Min
2.8
12
460
-
-
-
Typ
-
-
-
35
±65
±70
Max
3.4
40
475
-
-
-
Unit
V
mcd
nm
nm
deg
*
3
Luminous intensity
*
5
Peak wavelength
Spectrum bandwidth
λ
P
∆
λ
θ
1/2
X
Y
*
Half angle
4
I
F
= 10mA
KSD-O8G003-001
2
SB1316E-V
*3. Luminous intensity maximum tolerance for each grade classification limit is ±18%
(The test result of I
F
=10mA is only for reference)
*4.
θ1/2
is the off-axis angle where the luminous intensity is 1/2 the peak intensity
*5.
λ
P
Grade Classification (
λ
P
Grade tolerance for ±3nm)
V
F
/
I
V
/
λ
P
Grade Classification (Ta=25℃)
Test Condition
@ I
F
=10mA
Peak Wavelength [nm]
a : 460~465
c : 465~470
c : 470~475
Forward Voltage [V]
1 : 2.8~3.0
2 : 3.0~3.2
3 : 3.2~3.4
Luminous Intensity [mcd]
A : 12~20
B : 20~29
C : 29~40
(Do not use to combine grade classification. It must be used separately grade classification)
KSD-O8G003-001
3
SB1316E-V

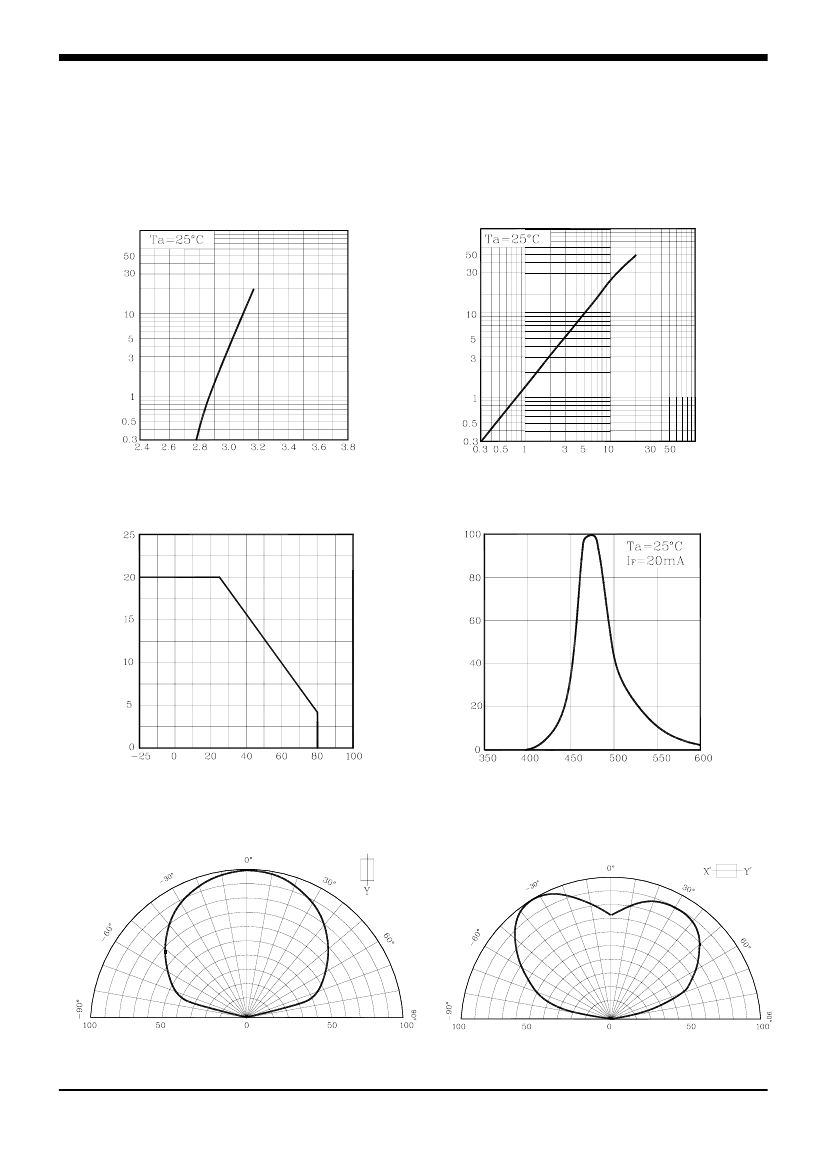

Characteristic Diagrams
Fig. 1 I
F
- V
F
Fig. 2 I
V
- I
F
Forward Voltage V
F
[V]
Luminous Intensity I
v
[mcd]
Forward Current I
F
[mA]
Forward Current I
F
[mA]
Fig. 3 I
F
– Ta
Fig.4 Spectrum Distribution
Forward Current I
F
[mA]
Ambient Temperature Ta [℃]
Relative Intensity [%]
Wavelength
λ
[nm]
Fig. 5-1 Radiation Diagram(X)
Fig. 5-2 Radiation Diagram(Y)
Relative Luminous Intensity Iv [%]
Relative Luminous Intensity Iv [%]
KSD-O8G003-001
4
SB1316E-V
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-O8G003-001
5
