54550-1071 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54550-1071

54550-1071: DescriptionFFC & FPC Connectors 0.5 FPC ZIF Hsg Assy ssy 10Ckt EmbsTp Pkg; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54550-1071 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54550-1071	-	-	View	Buy Now

54550-1071 Overview

FFC & FPC Connectors 0.5 FPC ZIF Hsg Assy ssy 10Ckt EmbsTp Pkg

54550-1071 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Board mount options	FITTING NAIL
body width	0.047 inch
subject depth	0.151 inch
body length	0.402 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Insulation resistance	50000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

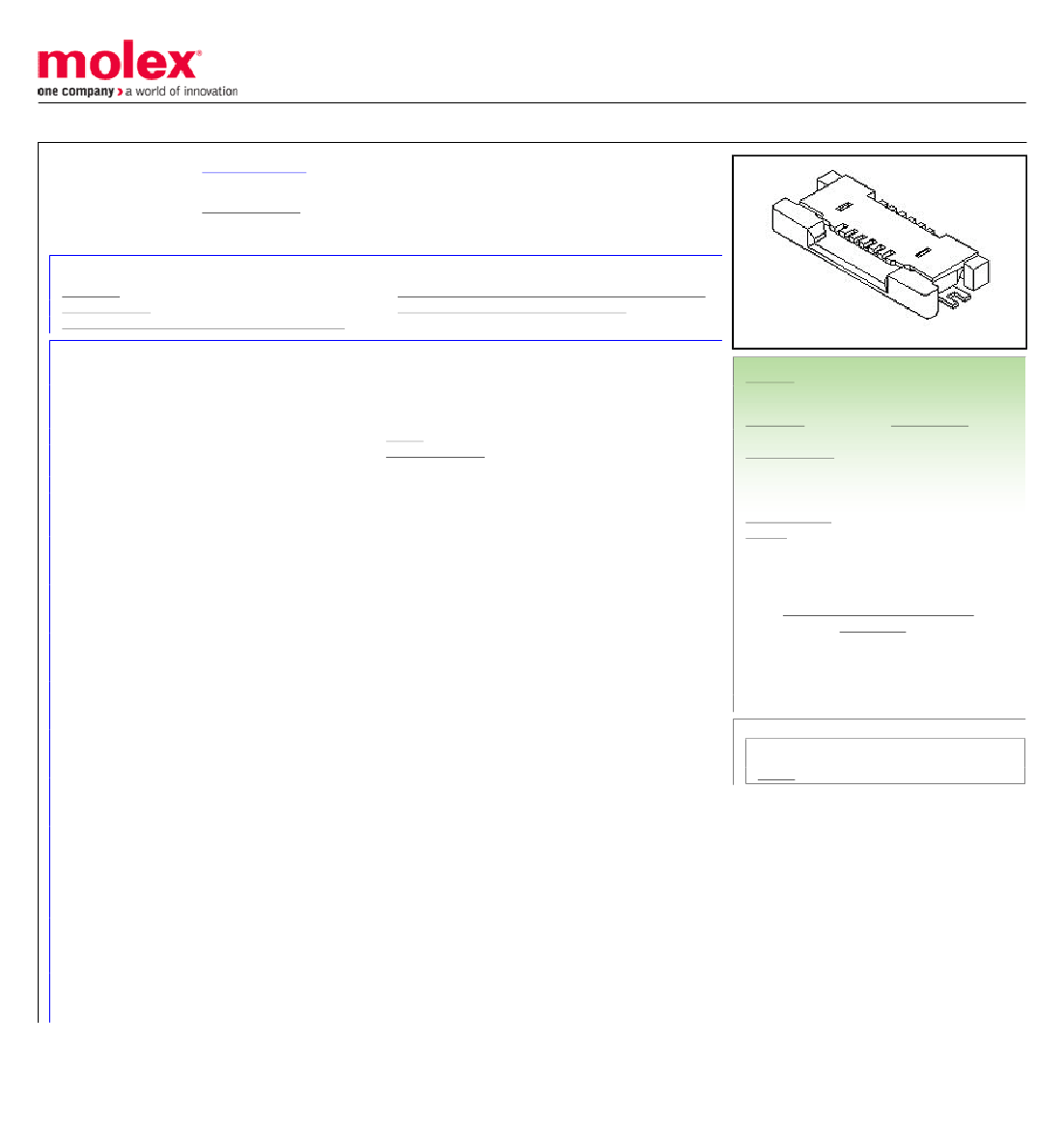

This document was generated on 01/24/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0545501071

Active

FFC-FPC (SMT)

0.50mm Pitch Easy-On FFC/FPC Connector, 1.20mm Height, Right Angle, Surface

Mount, ZIF, Top Contact Style, 10 Circuits, Gold (Au) Contact Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54550-012-001 (PDF)

Agency Certification

General

Product Family

Series

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-54550-056-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

FFC/FPC Connectors

54550

FFC-FPC (SMT)

Easy-On

Slider

822348180868

Top

90° Angle

1.20mm

Phosphor Bronze

Gold

Tin

63.912/mg

Right Angle

Yes

Embossed Tape on Reel

0.50mm

Yes

-40°C to +85°C

Surface Mount

FFC/FPC

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

54550 Series

SPK-54550-056-001

PS-54550-012-001

SD-54550-042, SD-54550-043

This document was generated on 01/24/2018
