2985-6035-TD: DescriptionRF Connectors / Coaxial Connectors SMA Female Edge Launch (Tin Dipped) Connector; CategoryThe connector; File Size64KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

2985-6035-TD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2985-6035-TD	-	-	View	Buy Now

2985-6035-TD Overview

RF Connectors / Coaxial Connectors SMA Female Edge Launch (Tin Dipped) Connector

2985-6035-TD Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Connectors / Coaxial Connectors
Product	Connectors
Gender	Female
Packaging	Bag
Factory Pack Quantity	50

Preview

Download Datasheet

View All

ROHS COMPLIANT

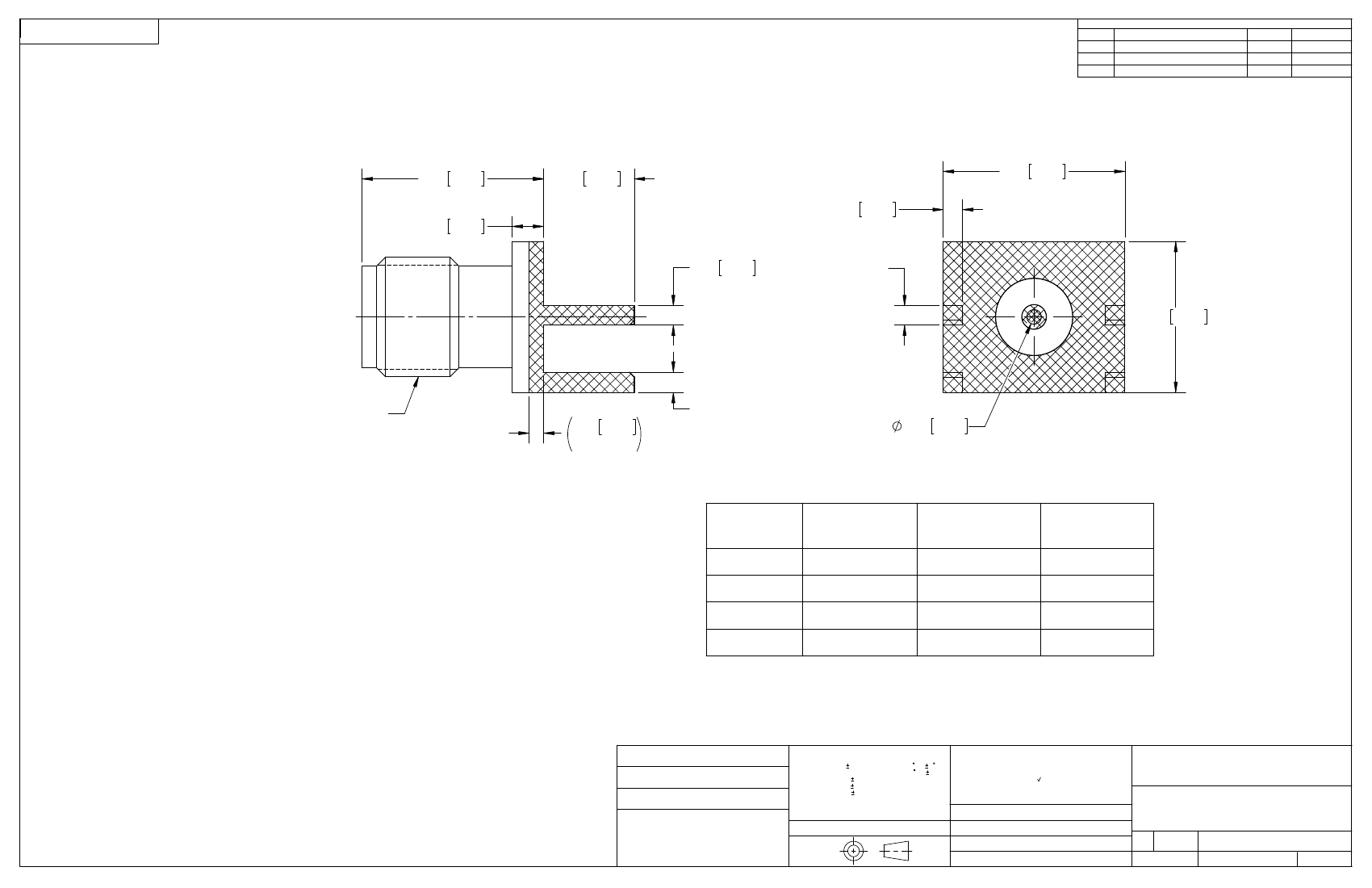

PRODUCT DATA DRAWING

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

-

DCN 42213

4/16

DAL

.375 9.53

.187 4.75

2X .040 1.02

.375 9.53

.065 1.65

.040 1.02

2X "A"

.312 7.92

1/4-36 UNS-2A

.030 0.76

SOLDER

2X "B"

.030 0.76

MATERIAL:

BODY:

CONTACT:

INSULATOR:

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1

BERYLLIUM COPPER PER ASTM B-196,

ALLOY UNS C17300, TD04

PTFE PER ASTM D-1710, TYPE I, GRADE 1, CLASS B

PART No.

2985-6035

2985-6036

2985-6037

2985-6038

GOLD PER ASTM B-488, TYPE II, CODE C,

CLASS 1.27 OVER NICKEL PER AMS-QQ-N-290,

CLASS 1, .00010" MIN.

BOARD

THICKNESS

.062 (1.57)

.042 (1.07)

.031 (0.79)

.093 (2.36)

DIMENSION

"A"

.068/.064 (1.67)

.048/.044 (1.16)

.037/.033 (0.88)

.099/.095 (2.46)

DIMENSION

"B"

.073 (1.85)

.093 (2.36)

.104 (2.64)

.042 (1.07)

FINISHES:

BODY &

CONTACT:

NOTES:

1.

TO BE TIN DIPPED USING Sn96 SOLDER.

2.

SOLDER ON ADJACENT SIDE PERMITTED.

3.

ALL DIMENSIONS APPLY PRIOR TO SOLDER DIPPING.

MATERIAL:

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

INSUL. RESIST.:

DWV:

VSWR:

50 OHMS

DC-18 GHz

5000 MEGOHMS, MIN.

1000 VRMS

N/A

SEE NOTES

N/A

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE AFTER PLATING.

2) BREAK CORNERS & EDGES .005 R. MAX.

3) CHAM. 1ST & LAST THREADS.

4) SURFACE ROUGHNESS 63 MIL-STD-10.

5) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN T.I.R.

6) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

FINISH:

SURFACE AREA:

DECIMAL: .X

.XX

.XXX

PROPRIETARY

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

DRAWN:

CHECKED:

APPROVED:

GPF 4/7/16

DAL 4/7/16

THIRD ANGLE PROJECTION

SMA JACK END LAUNCH

RECEPTACLE

SIZE CAGE CODE DWG. NO.

B

95077

SCALE: 6:1

2985-6035-6038-TD

SHEET 1 OF 1

E.M. SIMULATION: N/A
