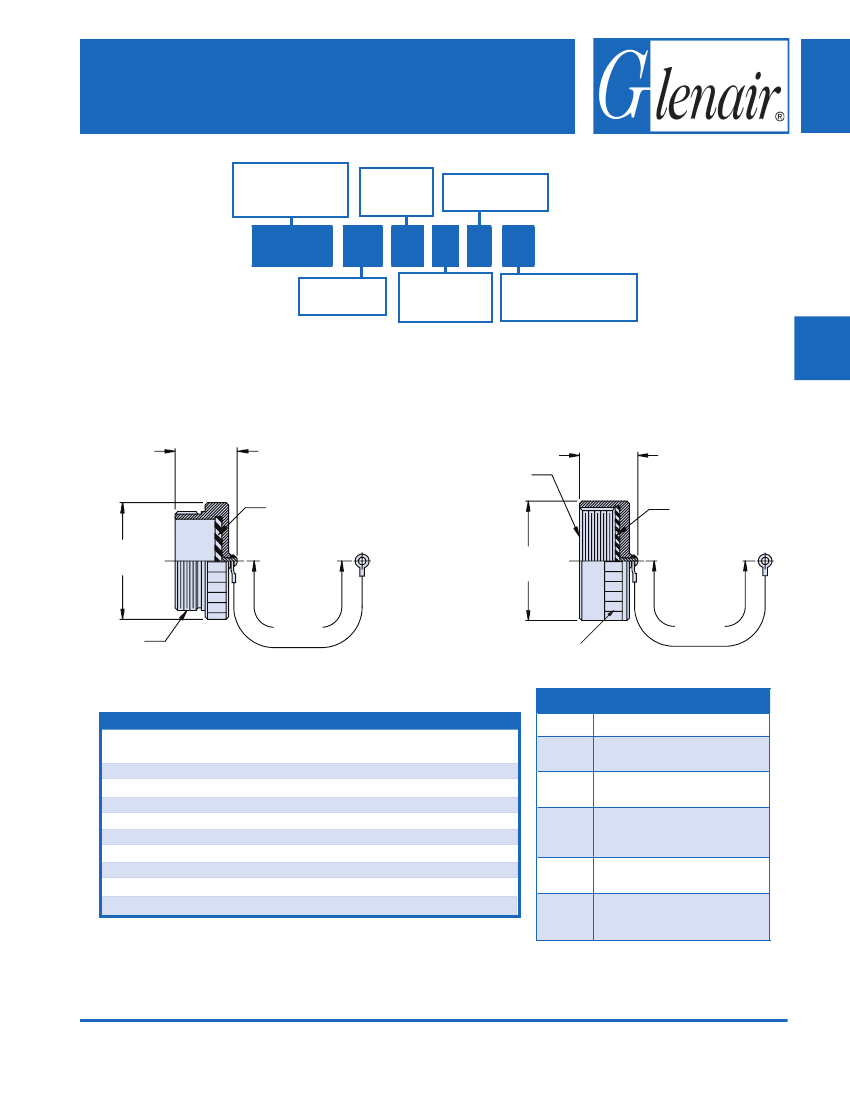

660-049 • 660-050
Composite MIL-DTL-38999 Series III
Protective Covers
Basic Part Number
660-049
- Plug
660-050
- Receptacle
Connector
Shell Size
(See
Table I)
Attachment Length
(In
Inches)
660-049
XO
21
R
6
-
04
Ring Style Dash Number
See Tables IV, V, VI and VII
on Page B-2
Finish Symbol
(See
Table II)
Attachment Type
See Table III
on Page B-2
660-049
MIL-DTL-38999/32
PLUG COVER
1.18
(30.0)
MAX
GASKET
660-050
MIL-DTL-38999/33
RECEPTACLE COVER
.906
(23.0)
MAX
GASKET
A THREAD
ØB
ØC
ATTACHMENT
LENGTH
A THREAD
Knurl or Flutes MFR Option, Typ.
ATTACHMENT
LENGTH
TABLE II
TABLE I: CONNECTOR SHELL SIZE ORDER NUMBER
SHELL
A
B DIA
C DIA
SIZE
THREAD
MAX
MAX
09
.6250 -0.1P-0.3L-TS
.906 (23.0)
.906 (23.0)
11
.7500 -0.1P-0.3L-TS
1.024 (26.0) 1.102 (28.0)
13
.8750 -0.1P-0.3L-TS
1.220 (31.0) 1.220 (31.0)
15
1.0000 -0.1P-0.3L-TS
1.300 (33.0) 1.260 (32.0)
17
1.1875 -0.1P-0.3L-TS
1.457 (37.0) 1.457 (37.0)
19
1.2500 -0.1P-0.3L-TS
1.575 (40.0) 1.535 (39.0)
21
1.3750 -0.1P-0.3L-TS
1.732 (44.0) 1.654 (42.0)
23
1.5000 -0.1P-0.3L-TS
1.811 (46.0) 1.772 (45.0)
25
1.6250 -0.1P-0.3L-TS
1.969 (50.0) 1.929 (49.0)
Symbol
XB
XM
Finish Description
No Plating - Black Color
(Non-Conductive Finish)
2000 Hour Corrosion Resistant
Electroless Nickel
2000 Hour Corrosion Resistant
Ni-PTFE, Nickel-Fluorocarbon
Polymer.
1000 Hour Grey
TM
No Plating - Brown Color
(Non-Conductive Finish)
2000 Hour Corrosion Resistant
Cadmium/Olive Drab over
Electroless Nickel
XMT
XO
XW
Metric dimensions (mm) are in parentheses and are for reference only.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-5
REV 29 JUNE 2010
