KEA
IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole
Order required accessories separately

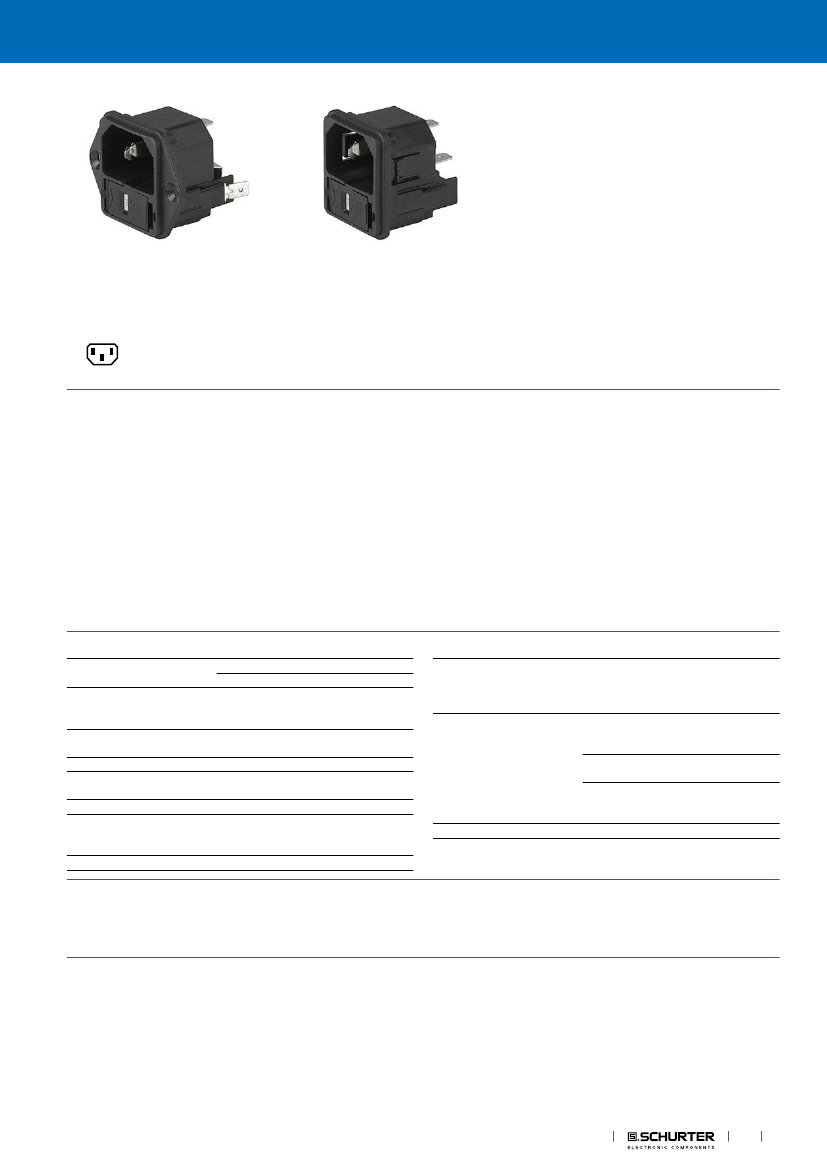

Screw-on Version
Snap-in version
C14
70° C
Approvals and Compliances
Description
- Panel Mount :
Screw-on version from front or rear side, snap-in version from front
side
- 3 Functions :
Appliance Inlet Protection class I , Fuseholder for fuse-links 5 x 20 mm
1- or 2-pole , with or without voltage selector (step switch)
- V-Lock notch standard
- Meets the requirements of IEC 60335-1 for appliances in unattended
use. This includes the enhanced requirements of glow wire tests acc.
to IEC 60695-2-12 and -13.
- Quick connect terminals 4.8 x 0.8 mm
Characteristics
- Available with or without internal connections
- Plug removal necessary for fuse-link replacement
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- With solder terminals
- Fuse drawer with other voltage values
- For protection class II
References
Weblinks
Alternative: version with line filter
KFA
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Unique Selling Proposition
-
-
-
-
Very compact design
Components internally wired
Integrated voltage selector
V-Lock cord retaining
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
10 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 4 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1.5/2/2.5 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 / C18 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per
pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
optional, step, 2-4 digits
Fuseholder
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Voltage Selector
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Connectors
1
KEA
Approvals
Power entry modules without line filter
https://www.schurter.com /PG05
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: KEA
Approval Logo
Certificates
VDE Approvals
UL Approvals
CSA Approvals
CQC Approvals
Certification Body
VDE
UL
CSA
CQC
Description
Certificate Number: 40046508
UL File Number: E93617
CSA Certification Record: 38456
CCC File Number:
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60127-6
IEC 61058-1
UL 498
CSA C22.2 no. 42
Description
Appliance couplers for household and similar general purposes
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Medical Equipment
SCHURTER AG
2
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
KEA

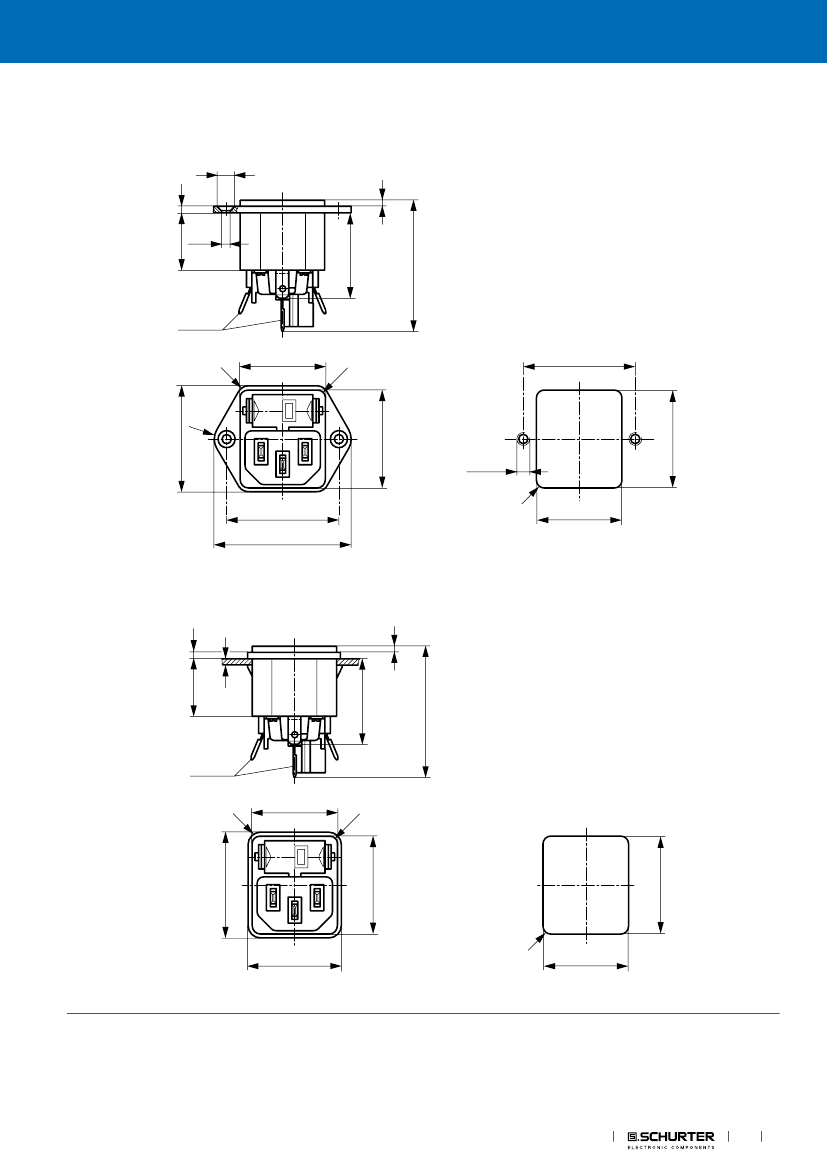

Dimensions [mm]
Screw-on mounting type KEA
ø 6.3x90°
2.2
2
27.7
ø 3.3
41.6
18
4.8x0.8
R4
27.3
R2.6
36
±0.1
230
31.3
R6
34
M3/ø3.6
27.6
±0.1
36
44
Snap-in mounting type KEA
R2.4
±0.1
2.2
18
S
±0.1
27.7
2
4.8x0.8
R4
27.3
R2.6
230
41.6
30
R2.4
±0.1
27.6
±0.1
Connectors
31.6
±0.1
31.3
34
31.6
±0.1
3
KEA
Diagrams
without internal connections
Voltage selector
4-positions, 1-pole
4 3 21
Power entry modules without line filter
https://www.schurter.com /PG05
without internal connections
Voltage selector
4-positions, 2-pole
4 3 21
5
with internal connections
Voltage selector
3-positions, 1-pole
3 21
with internal connections
Voltage selector
3-positions, 2-pole
3 21
5
A
L
N
A
L
B
N
L
E
E
N
E
L
E
N
Voltage selector
2-positions
1-pole
3 1
Voltage selector
2-positions
2-pole
3 1
5
without voltage selector
1-pole
3
without voltage selector
2-pole
3
5
Derating Curves
1-pole
Admissible power acceptance in Watt
2.0
2-pole
Admissible power acceptance in Watt
per pole
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = << I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature T
a
°C
Ambient air temperature T
a
°C
All Variants
Type
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Panel Thickness
s [mm]
1.5
1.5
2
2
2.5
2.5
1.5
2
1.5
2
2.5
1.5
2
2.5
1.5
1.5
2
Fuseholder
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
Voltage Selector
-
-
-
-
-
-
2 pos.
2 pos.
3 pos.
3 pos.
3 pos.
3/4 digits
3/4 digits
3/4 digits
-
-
-
Internally wired
l
Order Number
4301.0522
4301.2022
4301.0523
4301.2023
4301.0524
4301.2024
4301.2142
4301.2143
4301.0022
4301.0023
4301.0024
4301.2062
4301.2063
4301.2064
█
l
l
l
l
l
l
4301.0502
4301.2002
l
4301.0503
█
4
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
KEA
Type
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
KEA
█
Most Popular.
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Panel Thickness
s [mm]
2
2.5
2.5
1.5
2
2.5
1.5
2
2.5
1.5
2
2.5
-
-
-
-
-
-
-
-
-
-
Fuseholder
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
1-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
Voltage Selector
-
-
-
2 pos.
2 pos.
2 pos.
3 pos.
3 pos.
3 pos.
3/4 digits
3/4 digits
3/4 digits
-
-
2 pos.
3 pos.
3/4 digits
-
-
2 pos.
3 pos.
3/4 digits
Internally wired
Order Number
4301.2003
l
4301.0504
4301.2004
4301.2122
4301.2123
4301.2124
4301.0002
4301.0003
4301.0004
4301.2042
4301.2043
4301.2044
4301.0521
4301.2021
4301.2141
4301.0021
4301.2061
█
l
l
l
l
█
l
█
█
l
4301.0501
4301.2001
4301.2121
4301.0001
4301.2041
l
█
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
Required Accessory
50 Pcs
Description
Fusedrawer 2
Fusedrawer für Fuse Links 5x20 mm, with or without Voltage Selector Insert
Fingergrip, 2-pole, Voltage Selector, 110, 150, 220
Fingergrip, 2-pole, Voltage Selector, 120, 240
Fingergrip, 2-pole, Voltage Selector, 110, 220
Fingergrip, 2-pole, Voltage Selector, 115, 220
4301.1014.01
4301.1014.02
4301.1014.03
4301.1014.04
...
Connectors
5
