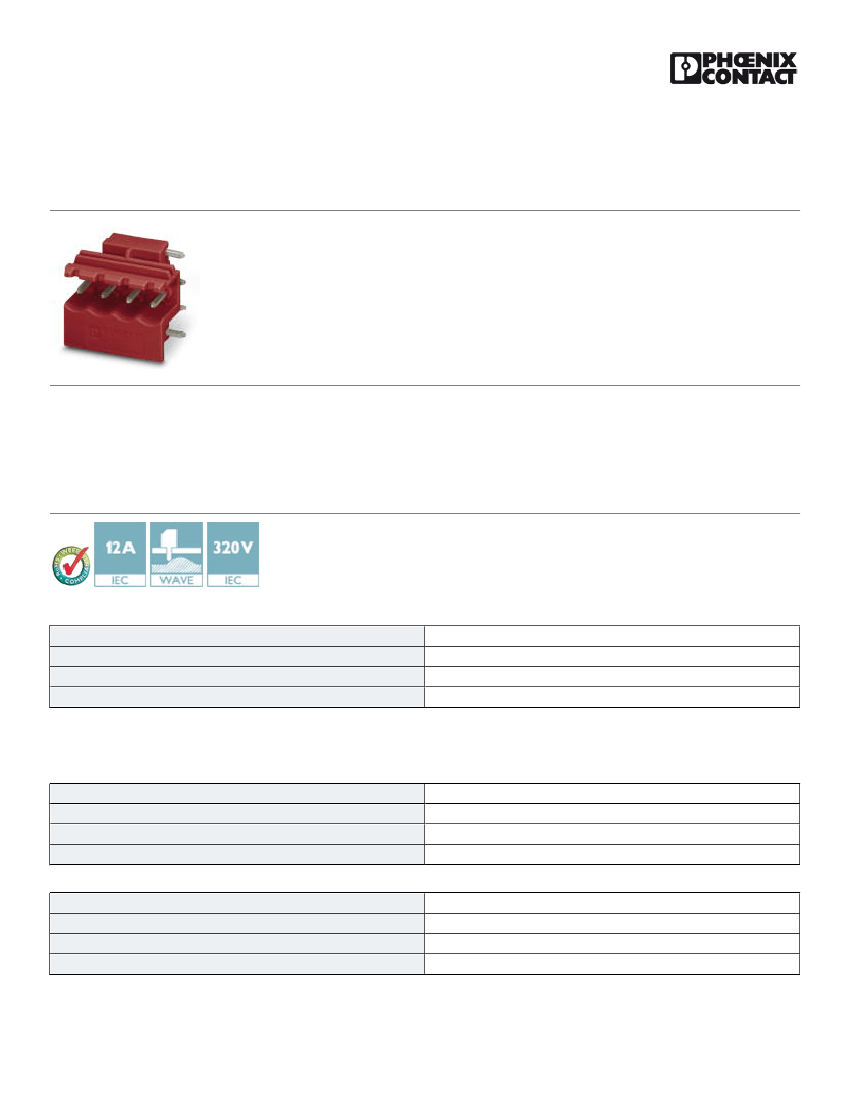

Base strip - MSTBO 2,5/ 4-G1R RD - 2853103
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Mounting: Soldering
Product Features
■
■
■
■
Headers for ME/ME MAX electronics housing
5 mm pitch
2 to 4-pos.
Plug-in direction orthogonal to the PCB
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
2.7 g
85366990
India
Technical data
Dimensions
Dimension a
Constructional height
Pin dimensions
Hole diameter
15 mm
15 mm
1 x 1 mm
1.4 mm
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
IIIa
4 kV
4 kV
4 kV
04/27/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/2853103
Base strip - MSTBO 2,5/ 4-G1R RD - 2853103
Technical data
General
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
250 V
320 V
400 V
EN-VDE
12 A
12 A
PBT
V0
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27180401
27180401
27180506
27260701
27260704
27440402
27440402
27440402
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
04/27/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/2853103
Base strip - MSTBO 2,5/ 4-G1R RD - 2853103
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
Nominal current IN
Nominal voltage UN
B
10 A
300 V
D
10 A
300 V
UL Recognized
Nominal current IN
Nominal voltage UN
B
16 A
300 V
D
10 A
300 V
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
Nominal voltage UN
8A
250 V
04/27/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/2853103
Base strip - MSTBO 2,5/ 4-G1R RD - 2853103
Approvals
cUL Recognized
Nominal current IN
Nominal voltage UN
B
16 A
300 V
D
10 A
300 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
8A
250 V
EAC
cULus Recognized
Accessories
Accessories
Coding element
Coding section - CR MSTBO-G1 - 2199618
Coding section
Filler plug
Accessories - MSTB-BL - 1755477
Keying cap, for forming sections, plugs onto header pin, green insulating material
04/27/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/2853103
Base strip - MSTBO 2,5/ 4-G1R RD - 2853103
Accessories
Flange
Accessories - MSTB-BF - 1759981
Mounting flange, for fixing both ends of the header onto the PCB, green insulating material, with M 2 x 14 screws and
nuts.
Labeled terminal marker
Marker card - SK 5/3,8:FORTL.ZAHLEN - 0804183
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 5 mm, Lettering field: 5 x 3.8 mm
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Terminal marking
Marker card - SK 5/3,8:UNBEDRUCKT - 0805409
Marker card, Card, white, unlabeled, can be labeled with: Marker pen, Mounting type: Adhesive, for terminal block width:
5 mm, Lettering field: 5 x 3.8 mm
