5188256-9 datasheet, PDF - EEWORLD Datasheet

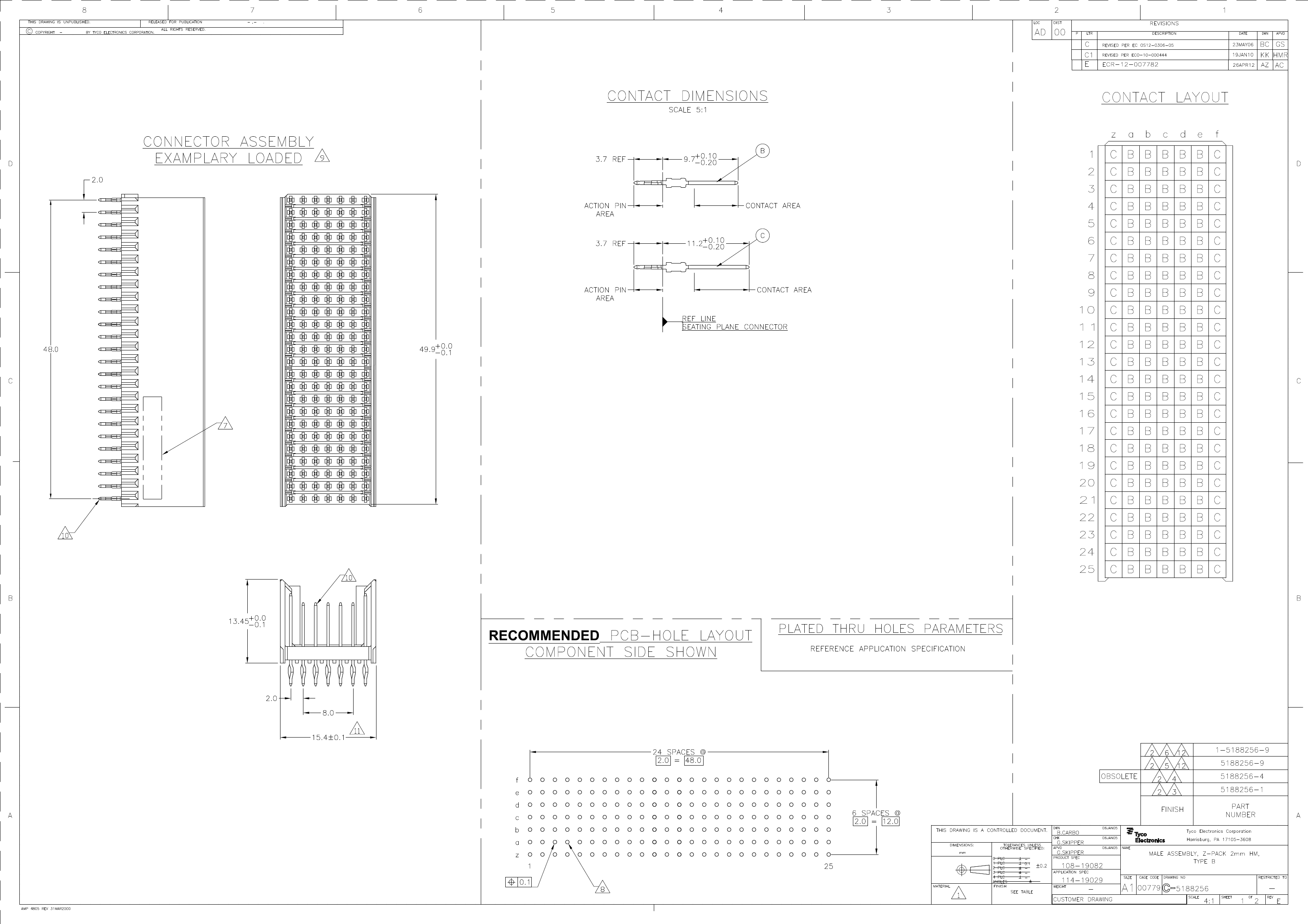

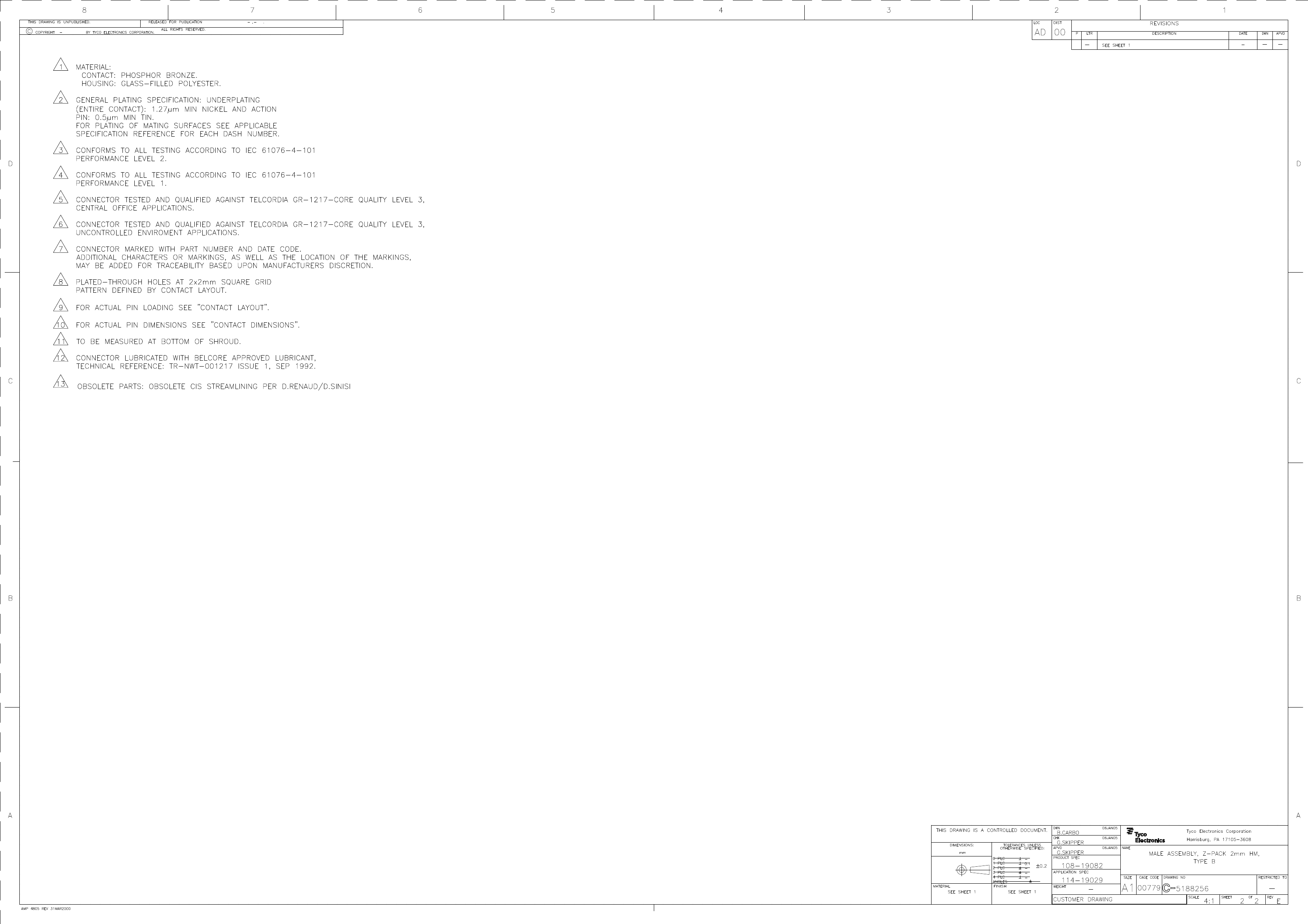

5188256-9: DescriptionZ-PACK/B M-HDR 175P; CategoryThe connector The connector; File Size233KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5188256-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5188256-9	-	-	View	Buy Now

Z-PACK/B M-HDR 175P

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	9 weeks
Other features	STANDARD: IEC 61076-4-101
body width	0.606 inch
subject depth	0.53 inch
body length	1.965 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	125 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7228 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	5188256
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	7
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	25
Evacuation force-minimum value	.139 N
Base Number Matches	1
