CRSH3-2

Description
RECTIFIER DIODE
CategoryDiscrete semiconductor    diode
File Size65KB,2 Pages
ManufacturerCentral Semiconductor
Download Datasheet Parametric Compare View All

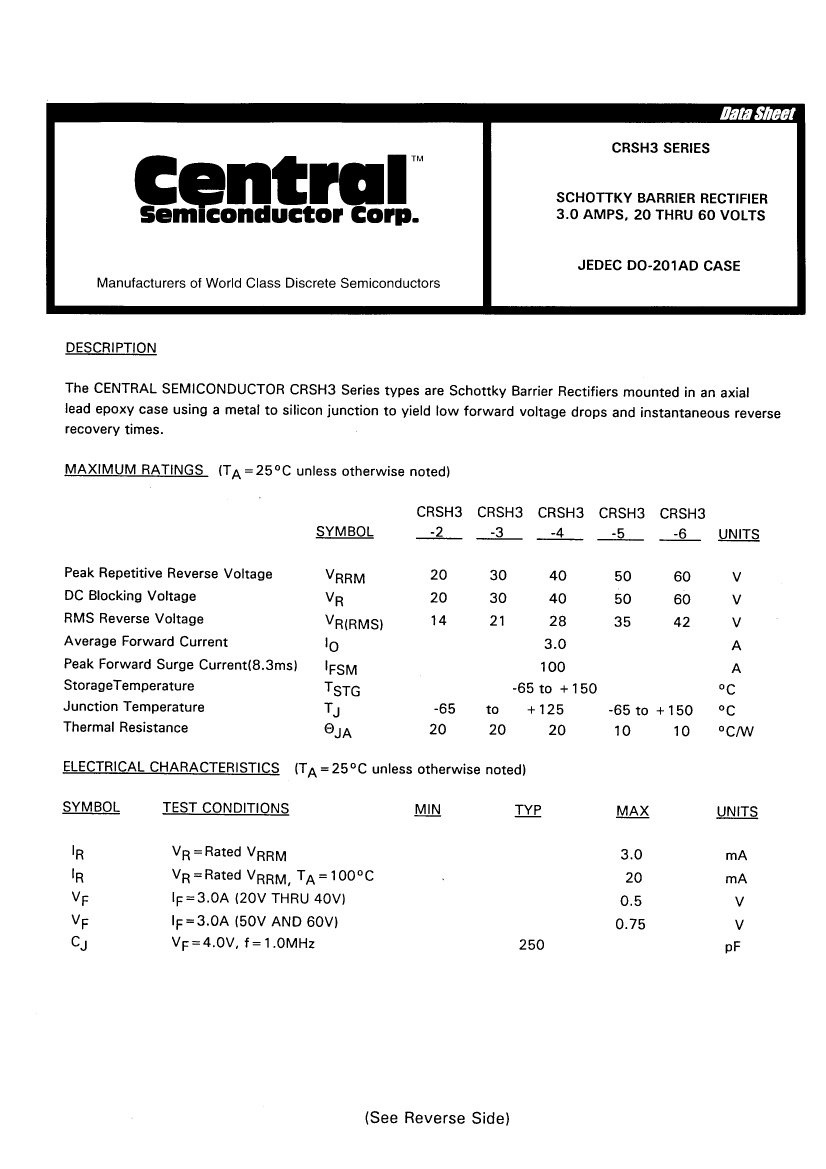

CRSH3-2 Overview

RECTIFIER DIODE

CRSH3-2 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerCentral Semiconductor

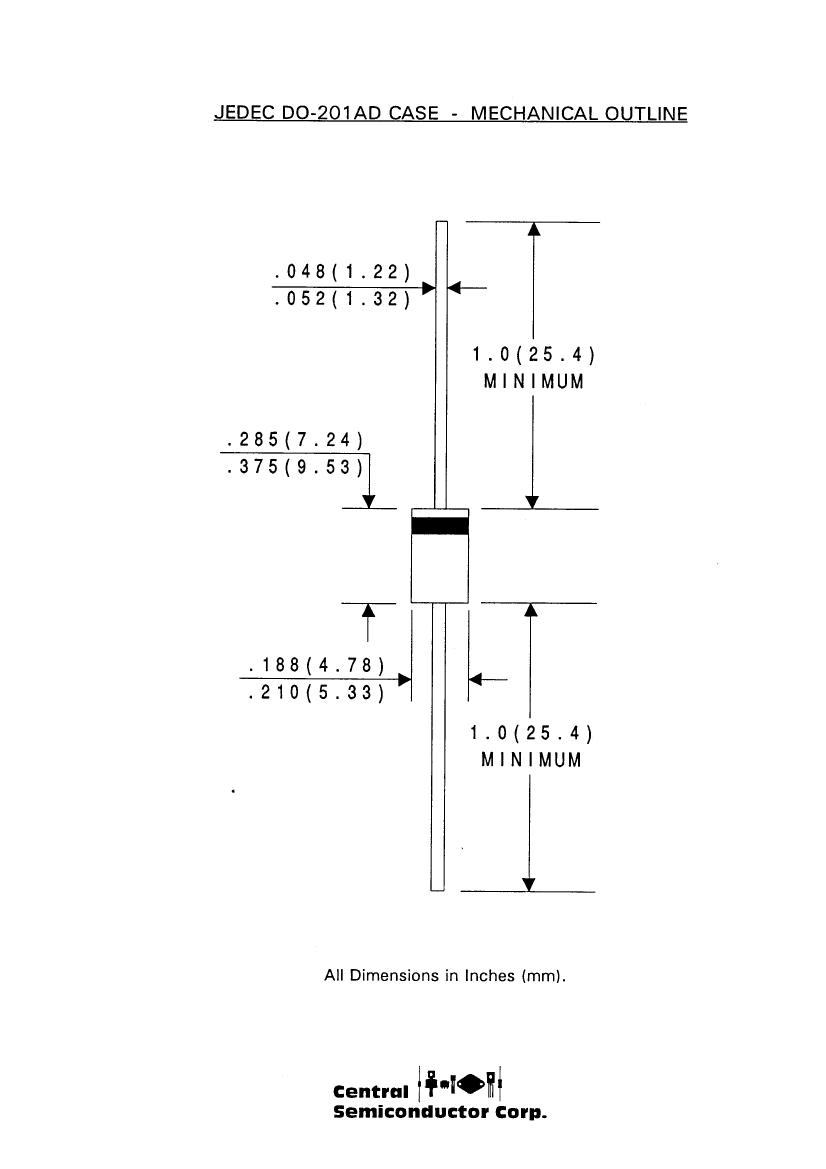

Parts packaging codeDO-201AD
package instructionO-PALF-W2
Contacts2
Reach Compliance Code_compli
ECCN codeEAR99
applicationGENERAL PURPOSE
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.55 V
JEDEC-95 codeDO-201AD
JESD-30 codeO-PALF-W2
JESD-609 codee0
Maximum non-repetitive peak forward current80 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Maximum output current3 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage20 V
Maximum reverse current500 µA
surface mountNO
technologySCHOTTKY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED
145 Adams Avenue, Hauppauge, NY 11788 USA
Tel: (631) 435-1110 • Fax: (631) 435-1824

CRSH3-2 Related Products

CRSH3-2 CRSH3 CRSH3-3 CRSH3-4 CRSH3-6 CRSH3-5
Description RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Is it lead-free? Contains lead - Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible - incompatible incompatible incompatible incompatible
Parts packaging code DO-201AD - DO-201AD DO-201AD DO-201AD DO-201AD
package instruction O-PALF-W2 - PLASTIC PACKAGE-2 PLASTIC PACKAGE-2 PLASTIC PACKAGE-2 PLASTIC PACKAGE-2
Contacts 2 - 2 2 2 2
Reach Compliance Code _compli - _compli _compli _compli _compli
ECCN code EAR99 - EAR99 EAR99 EAR99 EAR99
application GENERAL PURPOSE - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell connection ISOLATED - ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE - SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON - SILICON SILICON SILICON SILICON
Maximum forward voltage (VF) 0.55 V - 0.55 V 0.55 V 0.75 V 0.75 V
JEDEC-95 code DO-201AD - DO-201AD DO-201AD DO-201AD DO-201AD
JESD-30 code O-PALF-W2 - O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2
JESD-609 code e0 - e0 e0 e0 e0
Maximum non-repetitive peak forward current 80 A - 80 A 80 A 80 A 80 A
Number of components 1 - 1 1 1 1
Phase 1 - 1 1 1 1
Number of terminals 2 - 2 2 2 2
Maximum operating temperature 125 °C - 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -65 °C - -65 °C -65 °C -65 °C -65 °C
Maximum output current 3 A - 3 A 3 A 3 A 3 A
Package body material PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND - ROUND ROUND ROUND ROUND
Package form LONG FORM - LONG FORM LONG FORM LONG FORM LONG FORM
Peak Reflow Temperature (Celsius) NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 20 V - 30 V 40 V 60 V 50 V
Maximum reverse current 500 µA - 500 µA 500 µA 500 µA 500 µA
surface mount NO - NO NO NO NO
technology SCHOTTKY - SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY
Terminal surface Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form WIRE - WIRE WIRE WIRE WIRE
Terminal location AXIAL - AXIAL AXIAL AXIAL AXIAL
Maximum time at peak reflow temperature NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
