54104-5092

Description
FFC & FPC Connectors RA SMT ZIF TOP 50P
CategoryThe connector    The connector
File Size357KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

54104-5092 Online Shopping

Suppliers Part Number Price MOQ In stock
54104-5092 - - View Buy Now

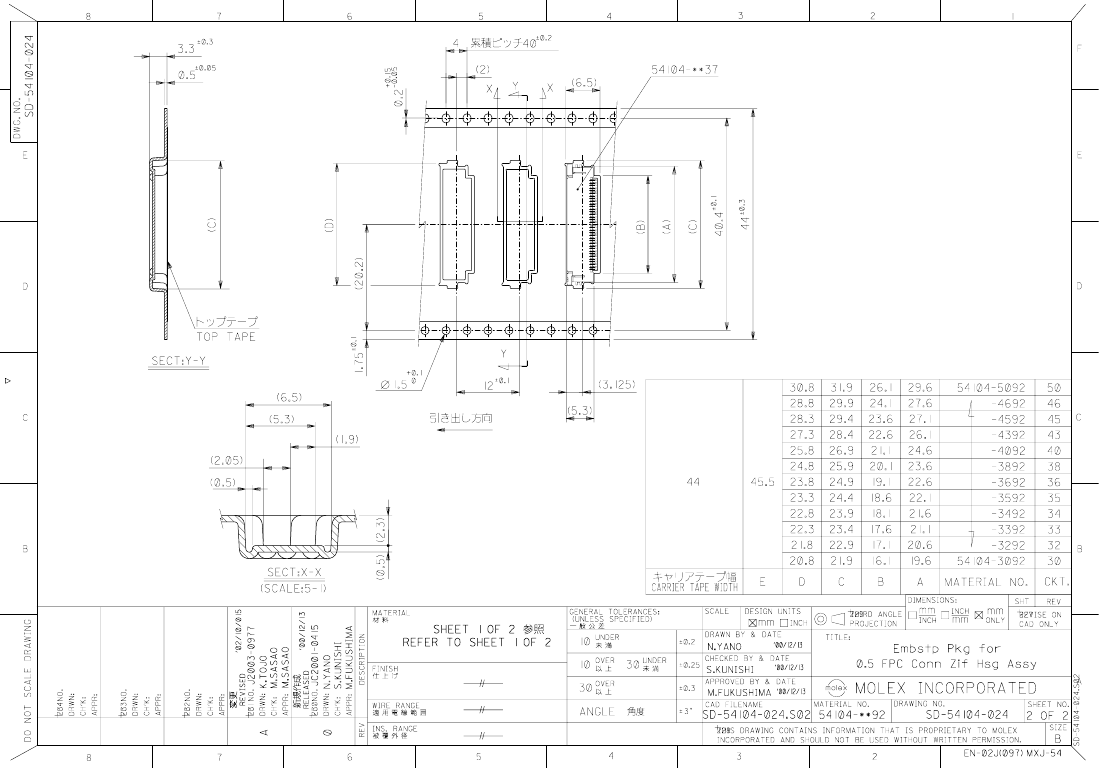

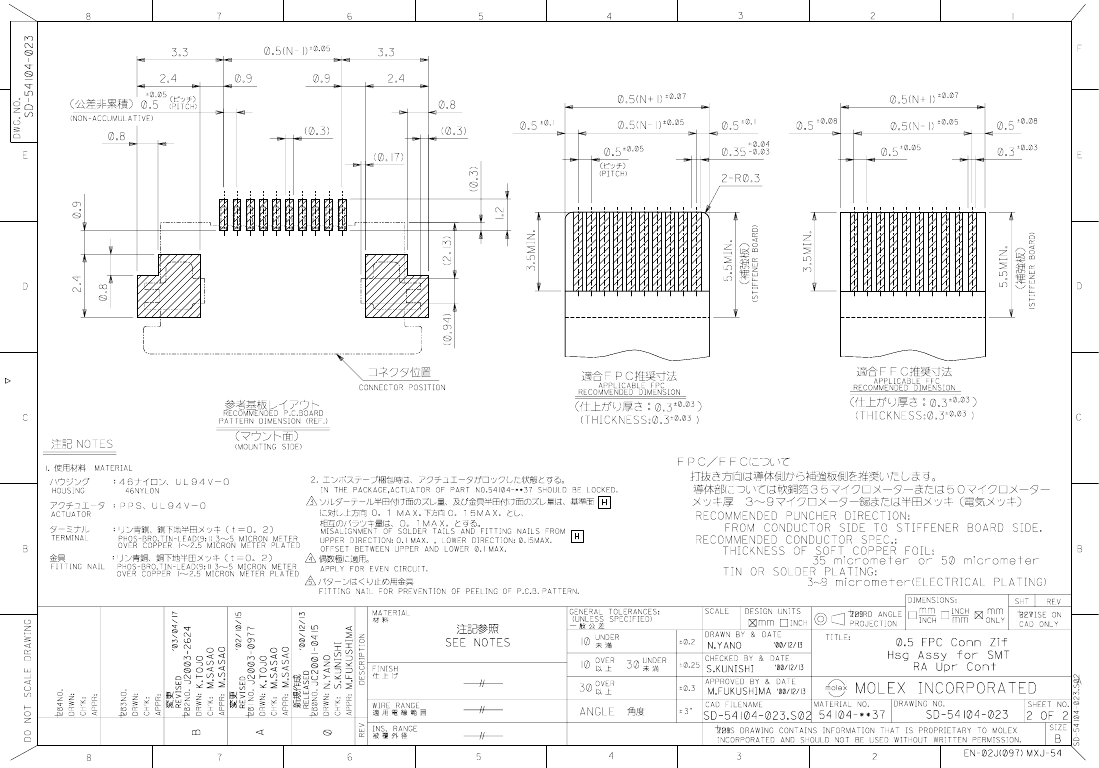

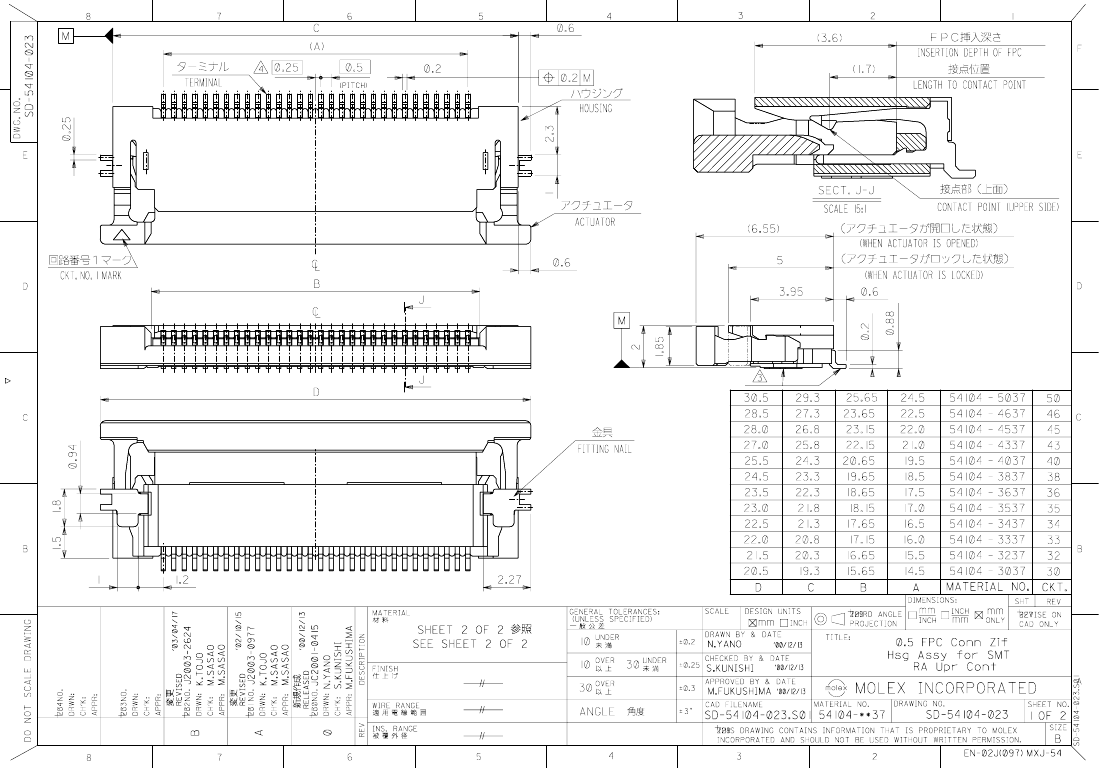

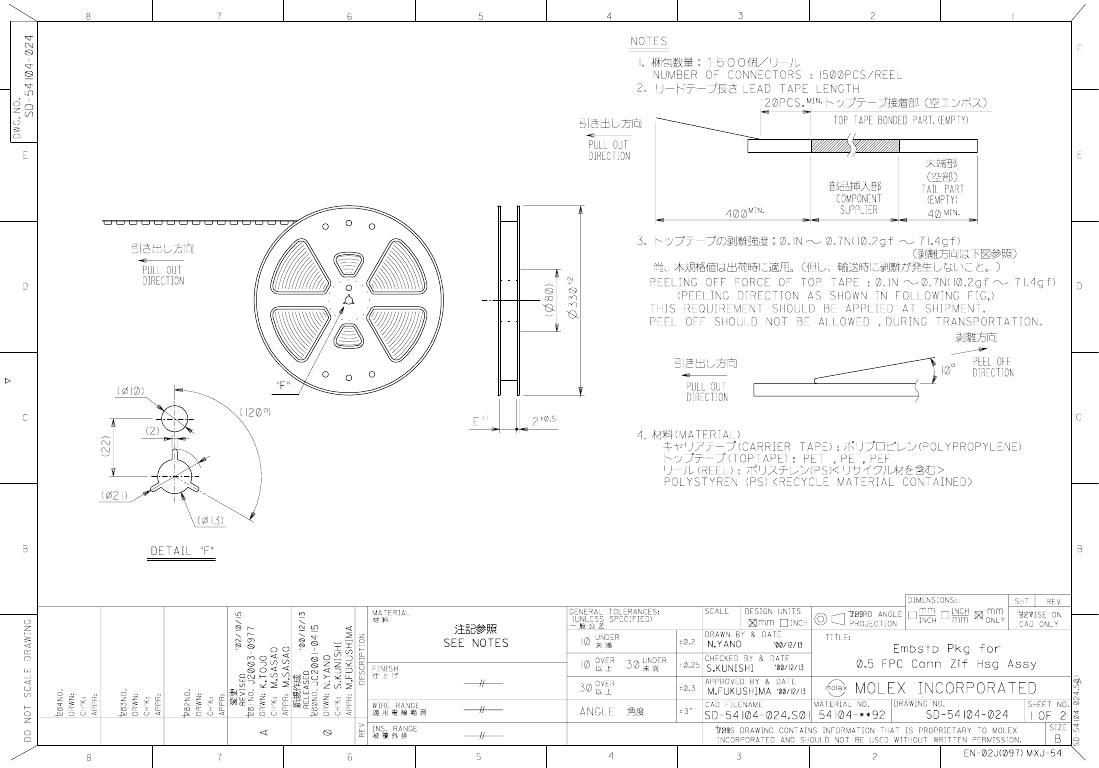

54104-5092 Overview

FFC & FPC Connectors RA SMT ZIF TOP 50P

54104-5092 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
Other featuresZIF
Board mount optionsFITTING NAIL
body width0.079 inch
subject depth0.197 inch
body length1.201 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage250VAC V
Durability20 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance50000000 Ω
Insulator colorBEIGE
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.02 inch
Mixed contactsNO
Installation option 1LOCKING MECH
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Rated current (signal)0.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts50
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N
Base Number Matches1

54104-5092 Related Products

54104-5092 54104-4092
Description FFC & FPC Connectors RA SMT ZIF TOP 50P FFC & FPC Connectors .50 MM FFC/FPC CONNE
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Reach Compliance Code compliant unknown
Other features ZIF ZIF
Board mount options FITTING NAIL FITTING NAIL
body width 0.079 inch 0.079 inch
subject depth 0.197 inch 0.197 inch
body length 1.201 inch 1.004 inch
Connector type FFC/FPC CONNECTOR FFC/FPC CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 20 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE
DIN compliance NO NO
Dielectric withstand voltage 250VAC V 250VAC V
Durability 20 Cycles 10 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force ZIF N ZIF N
Insulation resistance 50000000 Ω 50000000 Ω
Insulator color BEIGE NATURAL
insulator material NYLON NYLON
MIL compliance NO NO
Plug contact pitch 0.02 inch 0.02 inch
Mixed contacts NO NO
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
PCB row number 1 1
Number of rows loaded 1 1
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -20 °C -20 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
Rated current (signal) 0.5 A 0.5 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Terminal pitch 0.5 mm 0.5 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 50 40
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value ZIF N ZIF N
Base Number Matches 1 1
