CTLSMS15-M622: DescriptionSURFACE MOUNT TLM SILICON QUAD TVS/ZENER ARRAY 5.0 THRU 24 VOLTS; CategoryDiscrete semiconductor diode; File Size165KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CTLSMS15-M622 Overview

SURFACE MOUNT TLM SILICON QUAD TVS/ZENER ARRAY 5.0 THRU 24 VOLTS

CTLSMS15-M622 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	S-PDSO-N6
Contacts	6
Manufacturer packaging code	CASE TLM622
Reach Compliance Code	_compli
ECCN code	EAR99
Minimum breakdown voltage	16.7 V
Shell connection	ANODE
Configuration	COMMON ANODE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	S-PDSO-N6
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	350 W
Number of components	4
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	15 V
surface mount	YES
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

CTLSMS05-M622

CTLSMS12-M622

CTLSMS15-M622

CTLSMS24-M622

SURFACE MOUNT TLM

SILICON QUAD TVS / ZENER ARRAY

5.0 THRU 24 VOLTS

Central

DESCRIPTION:

Semiconductor Corp.

The CENTRAL SEMICONDUCTOR CTLSMS05 Series

is a 4 line TVS/Zener Array packaged in a space saving

TLM (Tiny Leadless Module ) TLM622 case. These

devices are designed to protect sensitive equipment

against ESD and to prevent latch-up events in CMOS

circuitry operating at 5V, 12V, 15V and 24V.

MARKING CODES:

CTLSMS05-M622: CBC

CTLSMS12-M622: CBD

CTLSMS15-M622: CBF

CTLSMS24-M622: CBH

APPLICATIONS:

• PDA’s

• Memory Card Ports

• Mobile Phones

• Instrumentation

Top View

Bottom View

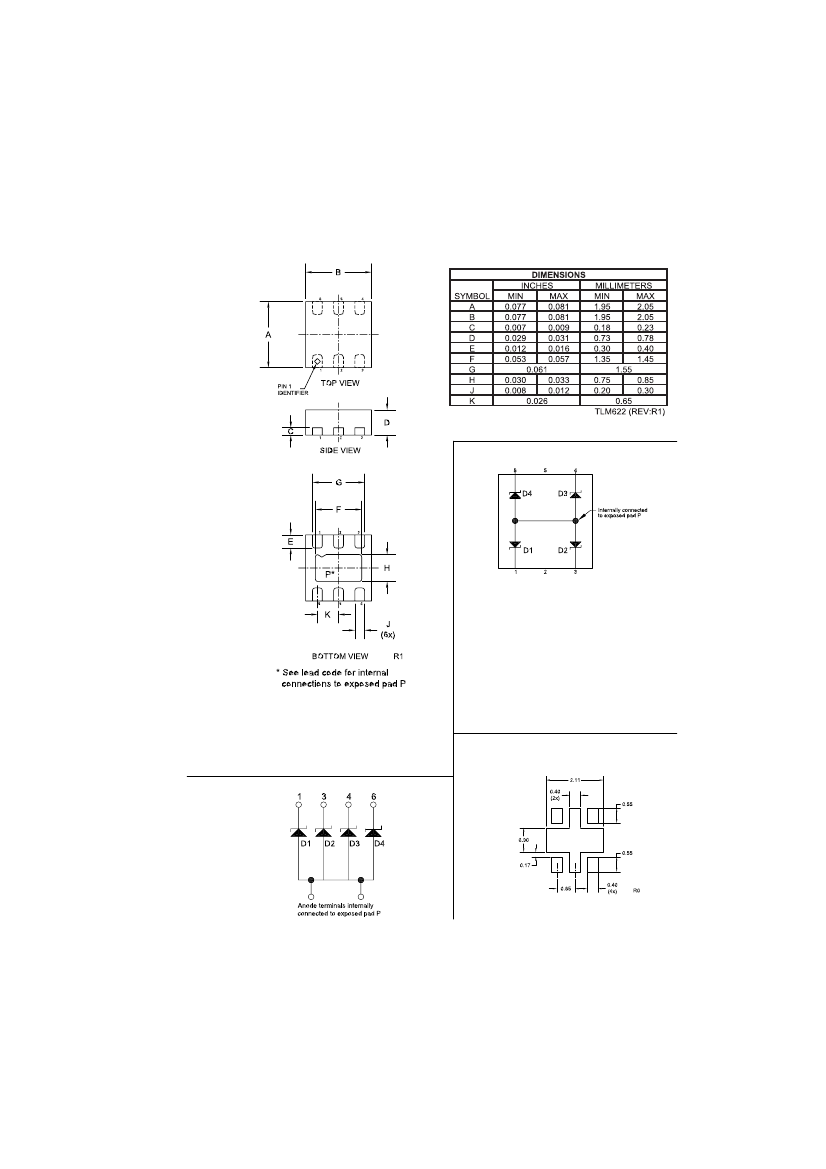

TLM622 CASE

FEATURES:

• Very low clamping voltage

• Low leakage current

• 350W power dissipation

• IEC61000-4-2 ESD 20kV air, 15kV contact compliance

• New Tiny Leadless Module (TLM) package with a

footprint compatible with the SOT-363 footprint.

MAXIMUM RATINGS:

(TA=25°C)

Peak Pulse Power (8x20µsec waveform)

ESD Voltage (HBM)

Operating Temperature Range

Storage Temperature Range

ELECTRICAL CHARACTERISTICS PER DIODE:

Type No.

Reverse

Stand-Off Breakdown

Voltage

SYMBOL

Ppp

VESD

Tstg

350

>25

-50 to +125

-50 to +150

UNITS

°C

(TA=25°C unless otherwise noted)

Clamping

Voltage

8x20µsec

Clamping

Voltage

8x20µsec

Off State

Marking

Junction

Code

Capacitance

VR=0V

f=1.0MHz

MAX

(pF)

200

CBC

CBD

CBF

CBH

Reverse

Leakage

Current

VWRM

MAX

(V)

CTLSMS05-M622

CTLSMS12-M622

CTLSMS15-M622

CTLSMS24-M622

VBR IBR

MIN

MAX

(V) (mA) (µA)

13.3

16.7

26.7

1.0

5.0

(V)

5.0

Vcl

MAX

(V)

9.5

Ipp

(A)

5.0

Vcl

MAX

(V)

Ipp

(A)

R1 (10-April 2006)
