502426-7030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 502426-7030

502426-7030: DescriptionBoard to Board & Mezzanine Connectors 0.4 B/B Rec Assy 70Ckt EmbsTpPkg; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

502426-7030 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	502426-7030	-	-	View	Buy Now

502426-7030 Overview

Board to Board & Mezzanine Connectors 0.4 B/B Rec Assy 70Ckt EmbsTpPkg

502426-7030 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Other features	SLIMSTACK
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
Base Number Matches	1

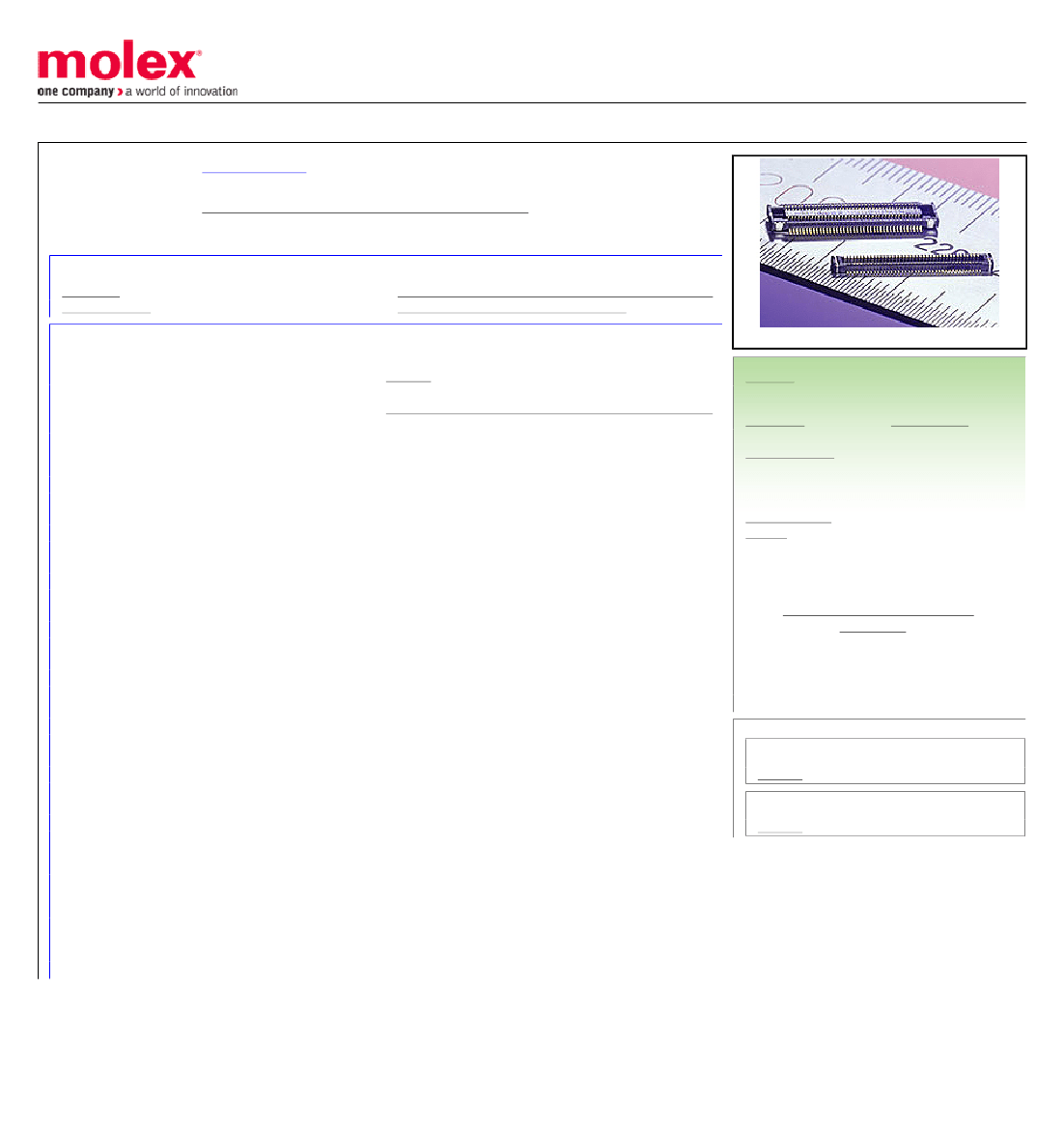

Preview

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5024267030

Active

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

0.40mm Pitch SlimStack Board-to-Board Receptacle, Surface Mount, Dual Row,

Vertical, 1.00mm Stacking Height, with Solder Tabs, with Vacuum Tape, 70 Circuits

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Capable

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Sales Drawing

Packaging Specification SPK-502426-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Receptacles

502426

Board-to-Board, Signal

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

SlimStack

883906441395

Black

Yes

1.00mm

Phosphor Bronze

Gold

64.810/mg

Vertical

Yes

Embossed Tape on Reel

0.40mm

-25°C to +85°C

Surface Mount

0.3A

50V AC/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

502426 Series

Mates With

502430 PCB Header

SPK-502426-001-001

SD-502426-003, SD-502426-004

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
