PLA110L is a 1-Form-A solid state relay which uses
optically coupled MOSFET technology to provide
3750V of input to output isolation. The efficient cur-
rent limited MOSFET switches and photovoltaic die
use Clare’s patented OptoMOS
®
architecture. The
optically-coupled input is controlled by a highly effi-
cient GaAIAs infrared LED. The PLA110L can be
used to replace mechanical relays and offers the
superior reliability associated with semiconductor
devices. Because they have no moving parts, they
can offer faster, bounce-free switching in a more
compact surface mount or through hole package.
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket
Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
BSI Certified:
•
BS EN 60950:1992 (BS7002:1992)
Certificate #:7344
•
BS EN 41003:1993
Certificate #:7344
Ordering Information
Part #
PLA110L
PLA110LS
PLA110LSTR
Description
6 Pin Dip (50/Tube)
6 Pin Surface Mount (50/Tube)
6 Pin Surface Mount (1000/Reel)
Pin Configuration
PLA110L Pinout
AC/DC Configuration
+ Control
Ð Control
NC
1
2
3
6
5
4
Load
Do Not Use
Load
PLA110L Pinout
DC Only Configuration
+ Control
Ð Control
NC
1
2
3
6
5
4
+ Load
Ð Load
10ms
CONTROL
LOAD 10%+
+90%
10%+
T
ON
T
OFF
DS-PLA110L-R4.0
www.clare.com
1
PLA110L
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Surface Mount Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
-
Typ
-
-
-
-
-
-
-
-
-
-
Max Units
150
1
mW
50
mA
1
A
5
V
800
2
mW
-
+85
+125
+260
+220
V
RMS
°C
°C
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at these or
any other conditions beyond those indicated in the opera-
tional sections of this data sheet is not implied. Exposure
of the device to the absolute maximum ratings for an
extended period may degrade the device and effect its
reliability.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
AC/DC Configuration
DC Configuration
Peak Load Current
On-Resistance
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Load Current Limiting
Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Common Characteristics @ 25°C
Input to Output Capacitance
Input to Output Isolation
Conditions
-
-
-
10ms
I
L
=150mA
I
L
=250mA
V
L
=400V
I
F
=5mA, V
L
=10V
I
F
=5mA, V
L
=10V
50V; f=1MHz
Symbol
V
L
I
L
I
L
I
L
R
ON
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
I
CL
I
F
I
F
V
F
V
R
I
R
C
I/O
V
I/O
Min
-
-
-
-
-
-
-
-
-
-
Typ
-
-
-
-
-
-
-
-
-
25
235
-
0.7
1.2
-
-
3
-
Max
400
150
250
-
25
9
-
1
0.25
-
Units
V
mA
mA
mA
Ω
Ω
µA
ms
ms
pF
mA
mA
mA
V
V
µA
pF
V
RMS
190
5
0.4
0.9
-
-
-
3750
280
50
-
1.4
5
10
-
-
I
L
=150mA
-
I
F
=5mA
-
V
R
=5V
-
-
2
www.clare.com
Rev. 4.0
PLA110L
PERFORMANCE DATA*
35
30
Device Count (N)
PLA110L
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25
°C)
I
F
= 5mADC
35
30
Device Count (N)
25
20
15
10
5
0
PLA110L
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25
°C)
(Load Current = 150mADC; I
F
= 5mADC)
35
30
Device Count (N)
13.1
13.7
14.3
14.9
15.5
16.1
25
20
15
10
5
0
PLA110L
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25
°C)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
441.5 450.5
459.5
468.5
477.5
486.5
On-Resistance (Ω)
Blocking Voltage (V)
PLA110L
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25
°C)
(Load Current = 150mADC)
25
20
15
10
5
0
0.75
1.05
1.35
1.65
1.95
2.25
LED Current (mA)
25
20
15
10
5
0
PLA110L
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25
°C)
PLA110L
Typical Turn-On Time
(N=50 Ambient Temperature = 25
°C)
(Load Current = 150mADC; I
F
= 5mADC)
25
20
15
10
5
0
Device Count (N)
Device Count (N)
Device Count (N)
0.75
1.05
1.35
1.65
1.95
2.25
0.15
0.21
0.27
0.33
0.39
0.45
LED Current (mA)
Turn-On (ms)
PLA110L
Typical Turn-Off Time
(N=50 Ambient Temperature = 25
°C)
(Load Current = 150mADC; I
F
= 5mADC)
25
PLA110L
Typical Load Current vs. Temperature
300
Load Current (mA)
250
200
150
100
50
0
Leakage (µA)
0.035
0.030
0.025
0.020
0.015
0.010
0.005
0
-40
-20
0
20
40
60
80
100
120
-40
PLA110L
Typical Leakage vs. Temperature
(Measured across Pins 4 & 6)
Device Count (N)
20
15
10
5
0
0.05
0.07
0.09
0.11
0.13
0.15
Turn-Off (ms)
20mA
10mA
5mA
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
PLA110L
Typical Blocking Voltage vs. Temperature
480
PLA110L
Typical Turn-On vs. Temperature
(Load Current = 150mADC)
3.0
2.5
Turn-On (ms)
2.0
1.5
1.0
0.5
0
-40
-20
0
20
40
60
80
5mA
10mA
20mA
100
120
Temperature (°C)
Turn-Off (ms)
0.140
0.120
0.100
0.080
0.060
0.040
0.020
0
-40
PLA110L
Typical Turn-Off vs. Temperature
(Load Current = 150mADC)
Blocking Voltage (V
RMS
)
475
470
465
460
455
450
-40
-20
0
20
40
60
80
100
Temperature (°C)
5mA
-20
0
20
40
60
80
100
Temperature (°C)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
Rev. 4.0
www.clare.com
3
PLA110L
PERFORMANCE DATA*
PLA110L
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
Turn-On (ms)
PLA110L
Typical Turn-On vs. LED Forward Current
(Load Current = 150mADC)
0.40
0.35
0.30
Turn-Off (ms)
PLA110L
Typical Turn-Off vs. LED Forward Current
(Load Current = 150mADC)
0.12
0.10
0.08
0.06
0.04
0.02
0
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
0.25
0.20
0.15
0.10
0.05
0
0
5
10
15
20
25
30
35
40
45
50
Forward Current (mA)
50mA
30mA
20mA
10mA
5mA
0
5
10
15
20
25
30
35
40
45
50
Forward Current (mA)
25
On-Resistance (Ω)
PLA110L
Typical On-Resistance vs. Temperature
(Load Current = 150mADC; I
F
= 5mADC)
PLA110L
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = 150mADC)
3.000
PLA110L
Typical I
F
for Switch Dropout
vs. Temperature
(Load Current = 150mADC)
3.000
2.500
LED Current (mA)
LED Current (mA)
20
15
10
5
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
2.500
2.000
1.500
1.000
0.500
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
2.000
1.500
1.000
0.500
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
150
Load Current (mA)
100
PLA110L
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25
°C)
I
F
= 5mADC
PLA110L
Energy Rating Curve
1.2
1.0
Load Current (A)
0.8
0.6
0.4
0.2
0
10µs 100µs 1ms 10ms 100ms
Time
1s
10s 100s
50
0
-50
-100
-150
-2.5 -2.0 -1.5 -1.0 -0.5
0
0.5 1.0 1.5 2.0 2.5
Load Voltage (V)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
4
www.clare.com
Rev. 4.0
PLA110L

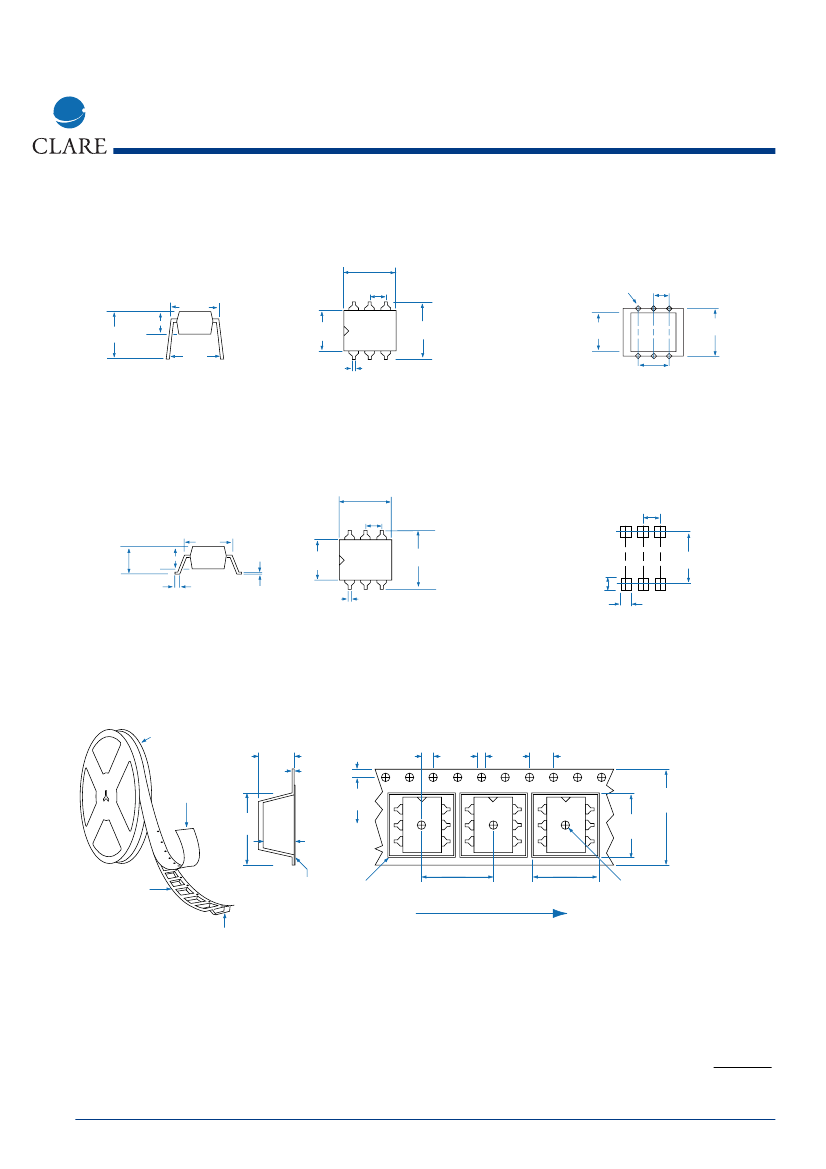

MECHANICAL DIMENSIONS
6 Pin DIP Through Hole (Standard)
7.620
±
.254
(.300
±
.010)
3.302
(.130)
6.350
±
.127
(.250
±
.005)
9.144
±
.508
(.360
±
.020)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
6-.800 DIA.
(6-.031 DIA.)
9.144
(.360)
6.350
±
.127
(.250
±
.005)
2.540
±
.127
(.100
±
.005)
7.620
±
.127
(.300
±
.005)
7.239 TYP.
(.285)
.457
±
.076
(.018
±
.003)
5.080
±
.127
(.200
±
.005)
6 Pin DIP Surface Mount (“S” Suffix)
7.620
±
.254
(.300
±
.010)
4.445
±
.127
(.175
±
.005)
3.302
(.130)
.635 TYP.
(.025)
.254 TYP.
(.010)
6.350
±
.127
(.250
±
.005)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
9.525
±
.254
(.375
±
.010)
1.905
±
.127
(.075
±
.005)
8.305
±
.127
(.327
±
.005)
.457
±
.076
(.018
±
.003)
1.499
±
.127
(.059
±
.005)
Tape and Reel Packaging for 6 Pin Surface Mount Package
The full picture of the product is as follows, see the drawing ARM chip, LM3S8962From another angle,The overall picture of the debugging connection is shown below;I use optoelectronic devices:My photo...
I recompiled QT with ARM-linux-gcc on ubuntu, generated the QtEmbedded-4.8.6-arm directory under Trolltech, and added environment variables qmake -v root@ubuntu:/home/shiyu/qtex1# qmake -v QMake versi...
[size=14pt][b]History of ECUs[/b]Electronic engine control units, also called engine control units (ECUs), were invented in the 1970s. At the time, people were looking for ways to improve fuel economy...
I would like to ask if anyone who has used nand flash has encountered a problem and cannot find the cause. At first, the default interface of nand flash is SDR mode. I configured the nand flash interf...
16.1 LCD Controller/Driver FunctionsThe functions of the LCD controller/driver built into the RL78/L13 are as follows:(1) It can select the normal LCD waveform (A waveform, B waveform) or the memory L...
This article discusses how to wake up a touch-sensitive device such as a tablet without touching the device, using basic gesture recognition and novel proximity sensors. The article discusses the p...[Details]
At present, the traffic congestion in cities is quite serious. According to relevant news reports: In China, the traffic congestion has expanded from megacities such as Beijing, Shanghai, and Guang...[Details]
Google's driverless technology is not only an eye-catching technology, but also a subversion of the car usage model.
Those who have watched anti-terrorism films and TV dramas must have been im...[Details]
No matter which processor you are learning, the first thing you need to understand is the registers and working mode of the processor.
ARM has 37 registers, including 31 general registers and ...[Details]
A multi-point temperature control heating control system was designed using the SST89E564RC single-chip microcomputer and a new temperature measuring device. The heating system can be controlled in...[Details]
1. With the development of modern industry and the continuous improvement of automation, some medium and large control systems have been greatly facilitated, which not only makes control easier, bu...[Details]
Overview
As a remote network communication control method with advanced technology, high reliability, complete functions and reasonable cost, CAN-bus has been widely used in various automa...[Details]
my country is a big country in agriculture, grain production and consumption. Grains are a necessary condition for our nation to survive and develop. The flour processing industry will exist forever w...[Details]
With the rapid development of intelligent control technology, computers and information technology, the trend of information appliances IA (Information Application), computers and communications integ...[Details]
The potentiometer is an adjustable electronic component. The main functions of the potentiometer in the circuit are as follows:
1. Used as a voltage divider
A potentiometer is a continuou...[Details]
This paper designs a 16x16LED Chinese character display bar based on single-chip dynamic scanning control, briefly analyzes the principle of Chinese character display, and studies how the LED displ...[Details]
The TPS92210 is a single-stage LED lighting pulse width modulation (PWM) controller. The TRIAC dimmable solution not only regulates the LED current, but also achieves a power factor close to 1. The...[Details]
Liquid crystal display (LCD) panels have a wide range of applications, from small portable electronic devices to large fixed devices, including digital cameras, laptops, personal data assistants, d...[Details]
1. Proposal of
reconfigurable
measurement and control system
The measurement and control system generally refers to a system based on
computers
to realize data acquisition a...[Details]
A stepper motor is an electromagnetic mechanical device that converts an electrical pulse signal into an angular displacement or a linear displacement. The stability and reliability of a stepper mo...[Details]
