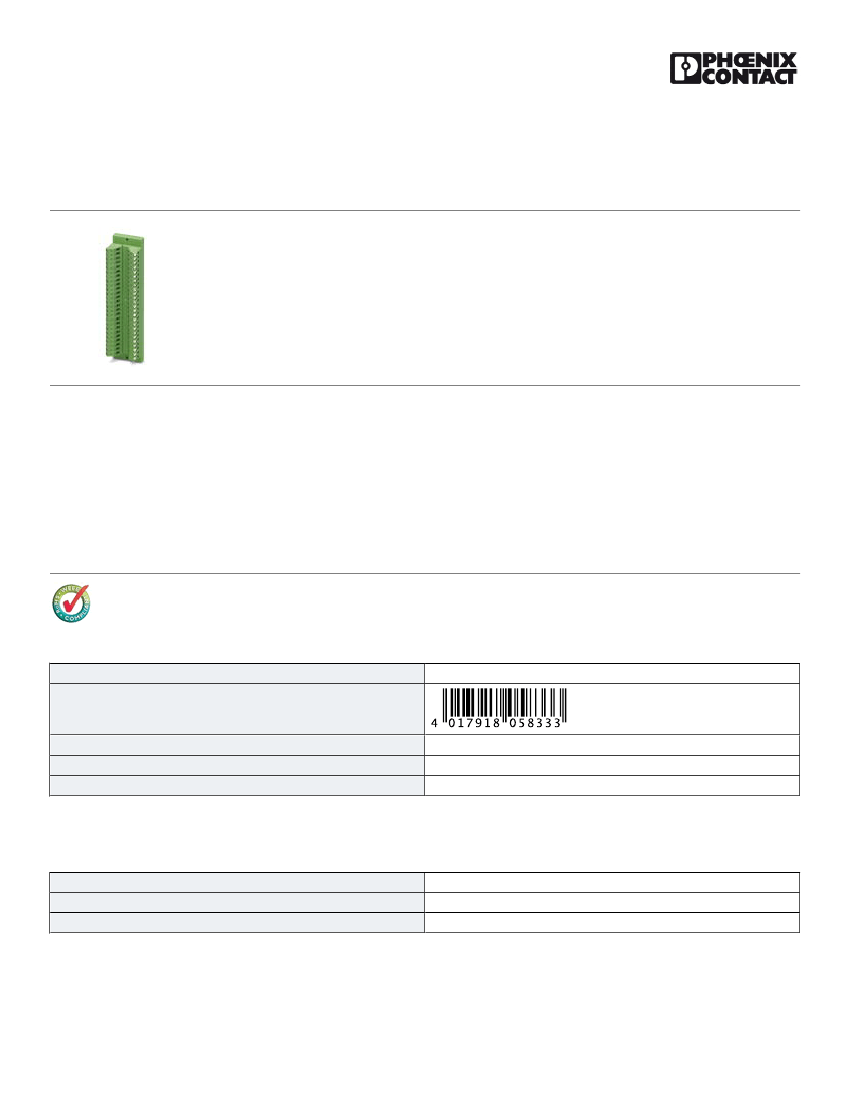

Interface module - DFLK-D50 SUB/S - 2291286
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
The VARIOFACE feed-through module implements a 1:1 connection between plug-in screw connection terminal
blocks and a D-SUB miniature pin strip (number of positions: 50). There is no separate ground tap.
Product Features
■
■
■
■
■
■
■
9 to 50-pos.
9 to 37-pos.: separate ground tap
50-pos.: no ground tap
According to IEC 60807-2
Screw connection
1:1 connection
D-SUB 4-40 UNC thread
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
169.6 g
85369010
Germany
1 pc
Technical data
Dimensions
Width
Height
Depth
39 mm
143.4 mm
33 mm
Ambient conditions
04/26/2016 Page 1 / 10
https://www.phoenixcontact.com/us/products/2291286
Interface module - DFLK-D50 SUB/S - 2291286
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
General
Max. perm. operating voltage
Max. perm. current (per branch)
Max. permissible current (all branches)
Number of positions
Mounting position
Assembly instructions
Degree of protection
Standards/regulations
125 V AC/DC
2.5 A
50 A
50
any
In rows with zero spacing
IP20
IEC 60664
DIN EN 50178
IEC 62103
Rated insulation voltage
Rated surge voltage
Degree of pollution
Overvoltage category
125 V
1.2 kV (Functional insulation)
2
II
Connection data for connection 1
Connection name
Connection in acc. with standard
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Field level
IEC / EN
Screw connection
8 mm
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Connection data for connection 2
Connection name
Connection method
Number of connections
Number of positions
Controller level
D-SUB pin strip
1
50
Standards and Regulations
Connection in acc. with standard
Standards/regulations
CUL
IEC 60664
DIN EN 50178
04/26/2016 Page 2 / 10
https://www.phoenixcontact.com/us/products/2291286
Interface module - DFLK-D50 SUB/S - 2291286
Technical data
Standards and Regulations
IEC 62103
Degree of pollution
Overvoltage category
2
II
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27250313
27250313
27250313
27250313
27242608
27141152
27141152
27141152
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001434
EC001604
EC001604
EC002780
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211824
39121421
39121421
39121421
39121421
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
04/26/2016 Page 3 / 10
https://www.phoenixcontact.com/us/products/2291286
Interface module - DFLK-D50 SUB/S - 2291286
Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
30-12
2.5 A
125 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
30-12
2.5 A
125 V
EAC
cULus Recognized
Accessories
Accessories
System cable
Cable - CABLE-D50SUB/B/S/ 50/KONFEK/S - 2302269
Round shielded cable set, with 50-pos. D-SUB female and male connectors, cable length: 0.5 m
04/26/2016 Page 4 / 10
https://www.phoenixcontact.com/us/products/2291286
Interface module - DFLK-D50 SUB/S - 2291286
Accessories
Cable - CABLE-D50SUB/B/S/100/KONFEK/S - 2302272
Round shielded cable set, with 50-pos. D-SUB female and male connectors, cable length: 1 m
Cable - CABLE-D50SUB/B/S/150/KONFEK/S - 2302285
Round shielded cable set, with 50-pos. D-SUB female and male connectors, cable length: 1.5 m
Cable - CABLE-D50SUB/B/S/200/KONFEK/S - 2302298
Round shielded cable set, with 50-pos. D-SUB female and male connectors, cable length: 2 m
Cable - CABLE-D50SUB/B/S/300/KONFEK/S - 2302308
Round shielded cable set, with 50-pos. D-SUB female and male connectors, cable length: 3 m
Cable - CABLE-D50SUB/B/S/400/KONFEK/S - 2302311
Round shielded cable set, with 50-pos. D-SUB female and male connectors, cable length: 4 m
04/26/2016 Page 5 / 10
