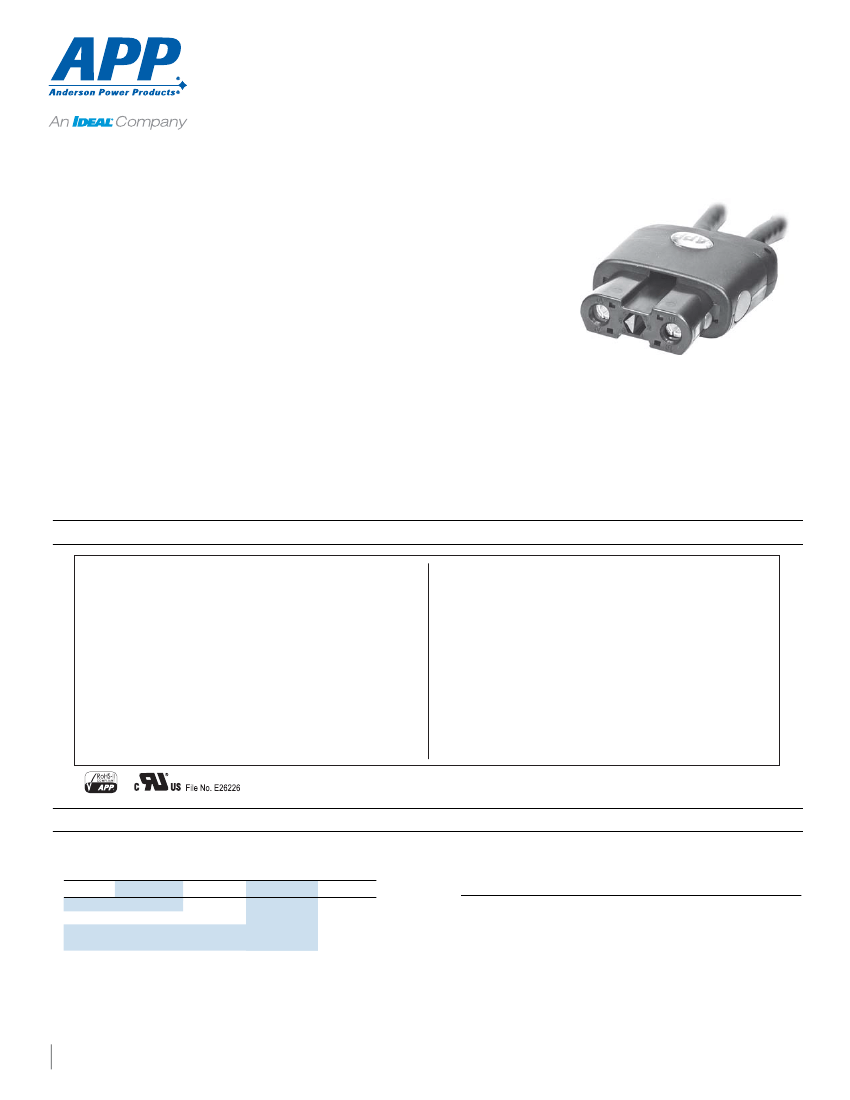

Dual Pole Female - Series B
PowerMod HP connectors, developed by
Anderson Power Products, are the innovative
New Generation of High Power
Interconnections for the Electronics Industry.
The touch-safe, positive latching, PowerMod
HP female connector design presents a new
standard for high power connector safety. The
ergonomic latch release is simple to operate
and is colored blue for clear identification.
Housings are a black UL94 V-0 flame retardant
material.
PowerMod HP contacts are durable and rated
for circuit interruption (true hot-pluggable).
Series B contacts are available in 1/0 to 4/0
American wire gauge and 50mm
2
to 95mm
2
metric wire sizes for global design freedom.
Our optional strain relief ensures superior
contact reliability under adverse operating
conditions.
The PowerMod HP connectors embody the
highest quality in the industry and meet all
applicable industry standards.
PowerMod HP
®
Features
•
Positive latching
Integral latches with ergonomic release
provide over 50 lbs retention
Provides IP20 protection for safe, energized
use outside the electronics cabinet
•
Touch safe female connectors
•
High performance, hot pluggable
female contacts
Our patented design provides greater longevity
for high power, elevated temperature applications
Reduces risk of wire insulation creep and
reduces transmission of wire loads to contacts
improving service life
•
Strain relief option
•
Low connector mating forces
Connectors are easily mated and un-mated
SPECIFICATIONS
Electrical
Current Rating (Amperes)
UL
CSA (30°C Rise)
UL / CSA Voltage Rating
Wire Size (AWG)
(mm²)
Dielectric Withstanding Voltage (AC)
Operating Temperature (°C)
(°F)
Ambient Temperature (°C)
(°F)
400
250
6 00
1/0 to 4/0
50 to 95
2200
-40° to 130°
-40° to 266°
-40° to 85°
-40° to 185°
Mechanical
Mating Force
Latch Retention Force
Contact Retention Force
Mating
a. No Load (mating cycles)
b. Under Load (Hot Plug 250 mating cycles @ 120V)
Materials
Housing & Cable Clamp
Latch
Contacts
Hardware
33 lbs. (147N) avg
50 lbs. (222N) min
150 lbs. (667N) min
500
150A
PBT UL94 V-0
PEI UL94 V-0
Copper alloy silver plate
Steel zinc chromate
ORDERING INFORMATION
PowerMod HP Part Number Plan - Dual Pole Female
Series
Size
Gender
Model
11
Wire Size
S04
PMHP
B
F
B*
F - Female
11 - Dual Pole Straight
12 - Dual Pole Straight with Cable Clamp
S04 - 1/0 AWG to 50mm²
S03 - 2/0 AWG to 70mm²
S02 - 95mm²
S01 - 4/0 AWG
* Maximum wire size 4/0 AWG
Components
Part
Number
PMHPBF11
PMHPBF12
PMHPBS04
PMHPBS03
PMHPBS02
PMHPBS01
PMHPBC02
Description
Housing Kit, Female, Dual Pole, Straight
Housing Kit with Cable Clamp, Female, Dual Pole, Straight
Socket, Series B, Crimp for 1/0 AWG to 50mm² wire
Socket, Series B, Crimp for 2/0 AWG to 70mm² wire
Socket, Series B, Crimp for 95mm² wire
Socket, Series B, Crimp for 4/0 AWG wire
Dual Pole Cable Clamp Kit
www.andersonpower.com
All Data Subject To Change Without Notice
Dual Pole
Female - Series B
ORDERING INFORMATION
Tooling
Pneumatic Production Tool
Wire Size
4/0
95mm²
2/0-70mm²
1/0-50mm²
Part
Number
1387G 2
1387G 2
1387G 2
1387G 2
Die P/N
1303G 3
1303G17
1303G16
1303G 8
Hand Tool
Wire Size
4/0
95mm ²
2/0-70mm²
1/0-50mm²
Hydraulic
1387G3
1387G3
1387G3
1387G3
Battery
1370G1
1370G1
1370G1
1370G1
Die P/N
1322G14
1322G1
1322G3
1322G13
Number of
Crimps
2
2
2
2
Locator P/N
1304G25
1304G25
1304G23
1304G23
Number of
Crimps
2
2
2
2

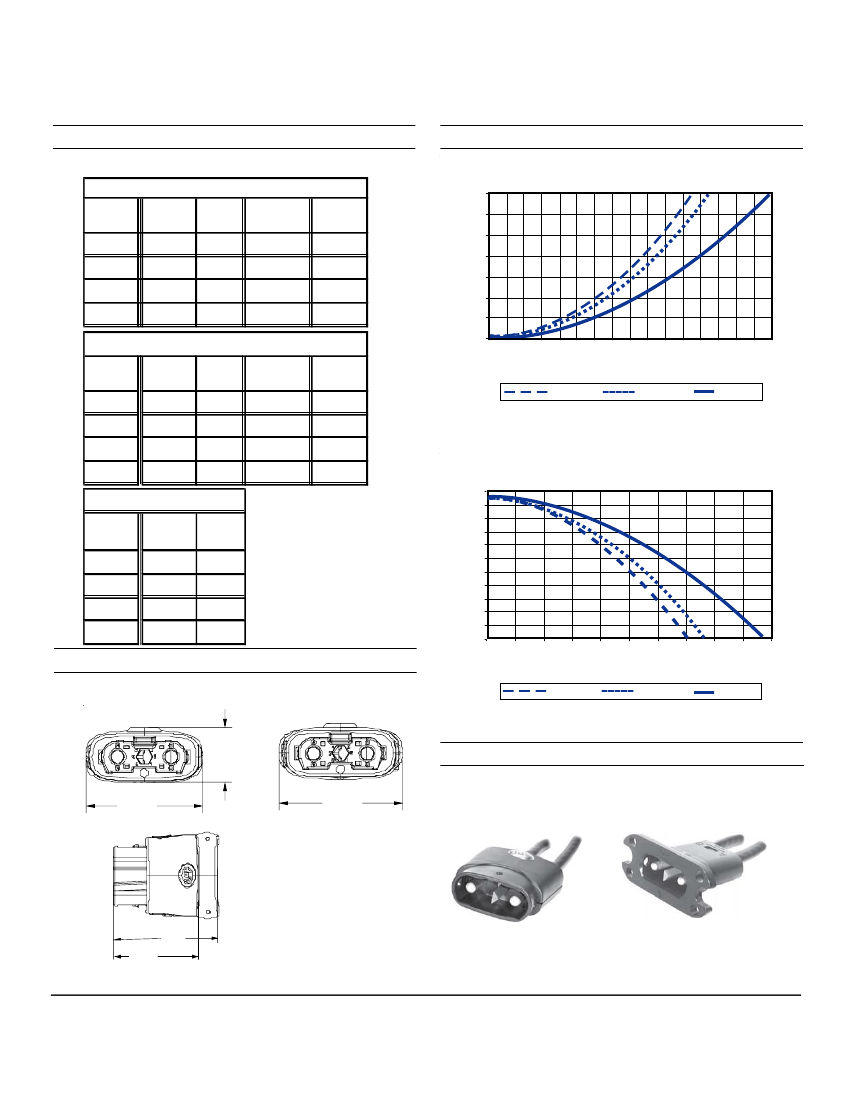

TEMPERATURE CHART
70
60
PowerMod® H P Dual Pole Series “B”
Temperature Rise
Temperature (°C)
50
40
30
20
10
0
0
50
100
150
200
250
300
350
400
Current (A)
2/0cable
1/0 cable
4/0 cable
* Double crimp is required to achieve stated electrical specifications
Wire Size
4/0
95mm²
2/0-70mm²
1/0-50mm²
Part
Number
1368
1368
1368
1368
Number
of Crimps
2
2
2
2
Ambient T emperature (°C)
Hydraulic Tool
Front Without
Strain Relief
DIMENSIONS
110
100
90
80
70
60
50
40
30
20
10
0
PowerMod®HP Dual Pole De-rating Curve Series “B”
Per IEC 60512-5
0
50
100
150
200
250
300
350
400
450
500
Front With
Strain Relief
Current (A)
2/0 cable
1/0 cable
4/0cable
* Double crimp is required to achieve stated electrical specifications
[ 36.8 ]
1.45
[ 82.7 ]
3.25
[ 87.6 ]
3.45
MATING CONNECTORS
Dual Pole
Straight Male
Dual Pole Panel
Mount Male
Side
All Data Subject To Change Without Notice
[82.8]
3.26
[101.8]
3.98
2017-0070
DS-BDPF REV 6
