854-22-002-30-001101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 854-22-002-30-001101

854-22-002-30-001101: DescriptionHeaders & Wire Housings 2P 1R SURFACE MT .252 HEIGHT CONN; CategoryThe connector The connector; File Size540KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

854-22-002-30-001101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	854-22-002-30-001101	-	-	View	Buy Now

854-22-002-30-001101 Overview

Headers & Wire Housings 2P 1R SURFACE MT .252 HEIGHT CONN

854-22-002-30-001101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	2
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

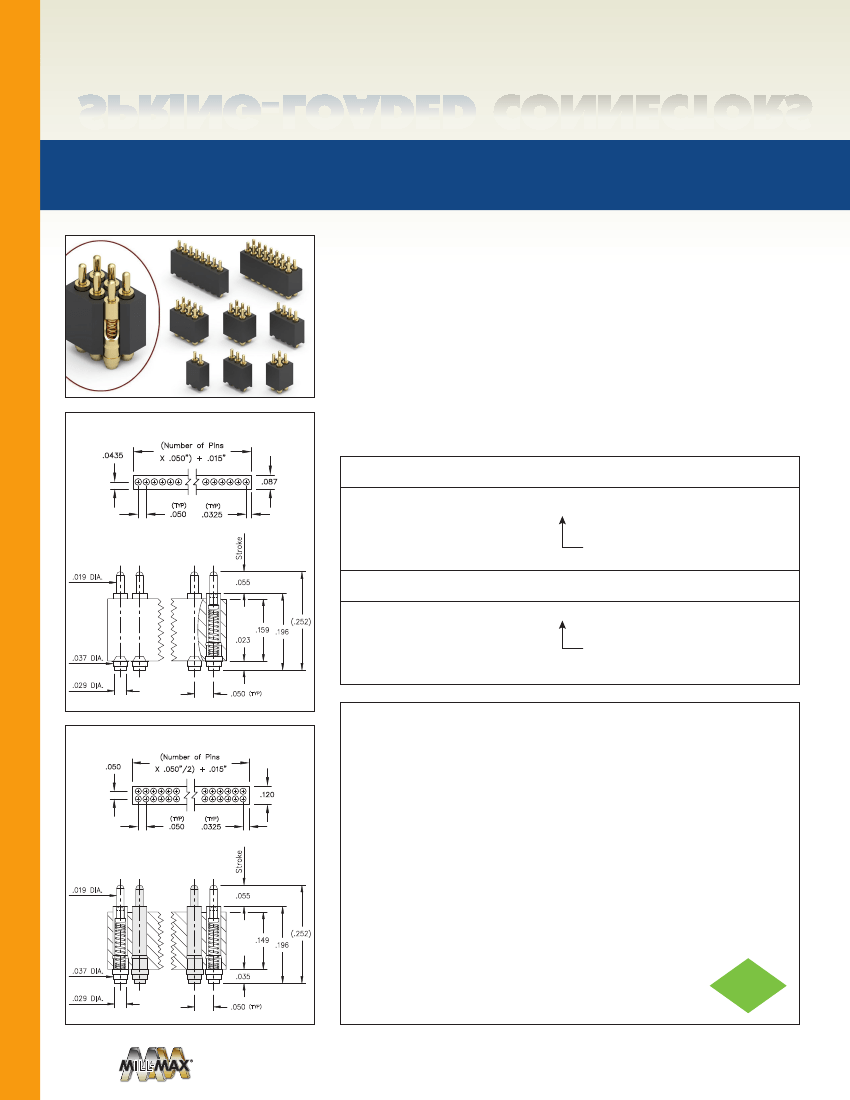

SPRING-LOADED

CONNECTORS

SERIES 854 & 855 • .050” GRID SURFACE MOUNT, HIGH DENSITY •

SINGLE AND DOUBLE ROW STRIPS

•

Modular contacts for use on .050” grid, supplied in single and double row contact strips

•

Precision-machined piston / base and gold-plated components assure up to 100,000

cycle life durability

•

Pistons have a .0275” mid. stroke and a .055” max. stroke

•

Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak

•

High temperature thermoplastic insulators are suitable for surface mount processes

•

854 & 855 series contact strips are designed for manual placement onto .040” Ø

solder pads

•

855 series is also available on tape & reel packaging, see page 19.1

SINGLE ROW Series 854

ORDERING INFORMATION

Single Row Series 854

854-22-0XX-30-001101

Specify number of contacts

02-20

Double Row Series 855

855-22-0XX-30-001101

Specify number of contacts

04-40

For 855 Tape & Reel packaging, see page 19.1

DOUBLE ROW Series 855

PAGE 19 | SPRING-LOADED CONNECTORS

Materials:

Contact piston & base: Machined copper alloy plated 20μ” gold over

100μ” nickel

Spring: Beryllium copper-plated 10μ” gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height: 25 grams

Spring force @ mid stroke (.0275”): 60 grams

Durability: Up to 100,000 cycles

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

Insulation resistance: 10,000MW min.

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.

Technical Specifications

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
