TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
110-263
REVISION
68POS. Memory Card Connectors based on JEIDA Ver4.1/PCMCIA
1 of 13
AUTHORIZED BY
D
DATE
Miao SH
5/12/09
CLASSIFICATION
Unrestricted
1.0
OBJECTIVE
This specification covers the standard performance and evaluating conditions of
68Pos.Memory Card Connectors based on JEIDA IC Memory-Card Guidelines Ver. 4.1
and PCMCIA PC card Standard Release 2.0.
2.0
SCOPE
All products of and memory card connectors based on JEIDA Ver.4.1 and PCMCIA
Release 2.0 shall conform to this specification.
3.0
GENERAL
This document is composed of the following sections:
Paragraph
Title
1.0
OBJECTIVE
2.0
SCOPE
3.0
GENERAL
4.0
REQUIREMENT
5.0
CONSTRUCTION
6.0
PERFORMANCE
7.0
TEST METHOD
4.0
4.1 Metallic components
1). Terminals
(Socket Connector)
Solder tail
2). Terminals (Header)
REQUIREMENT
---Beryllium copper with nickel underplating.
---Solder plating of 2.5 m min. thick.
or Au Flash plating for “LF” suffix parts number.
---Phosphor bronze with nickel underplating.
Contact area---0.38
m or 0.75
m GXT.
Contact area---Option 1: 0.38 m or 0.75 m GXT.
Option 2 : Gold plating of 0.25 m min thick.
Option 3 : Gold Flash plating.
or Sn plating 2.5 m min. thick.
or Au Flash plating.
4.2 Plastic components
1). Socket housing --- Glass filled 66-Nylon or Glass filled PPS or Glass filled LCP.
UL94V-0.
2). Header housing --- Glass filled 66-Nylon or Glass filled LCP.UL94V-0.
Solder tail
---Solder plating of 2.5
m min. thick.
Copyright FCI 2009
Form E-3334
Rev F
GS-01-001
eDOC -
PDM: Rev:D
STATUS:
Released
Printed: Nov 22, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
110-263
REVISION
68POS. Memory Card Connectors based on JEIDA Ver4.1/PCMCIA
2 of 13
AUTHORIZED BY
D
DATE
Miao SH
5/12/09
CLASSIFICATION
Unrestricted
5.0
CONSTRUCTION
The connector consists of a socket connector and a header.
Attach a dummy card to the socket connector before inserting the socket connector
into the header.

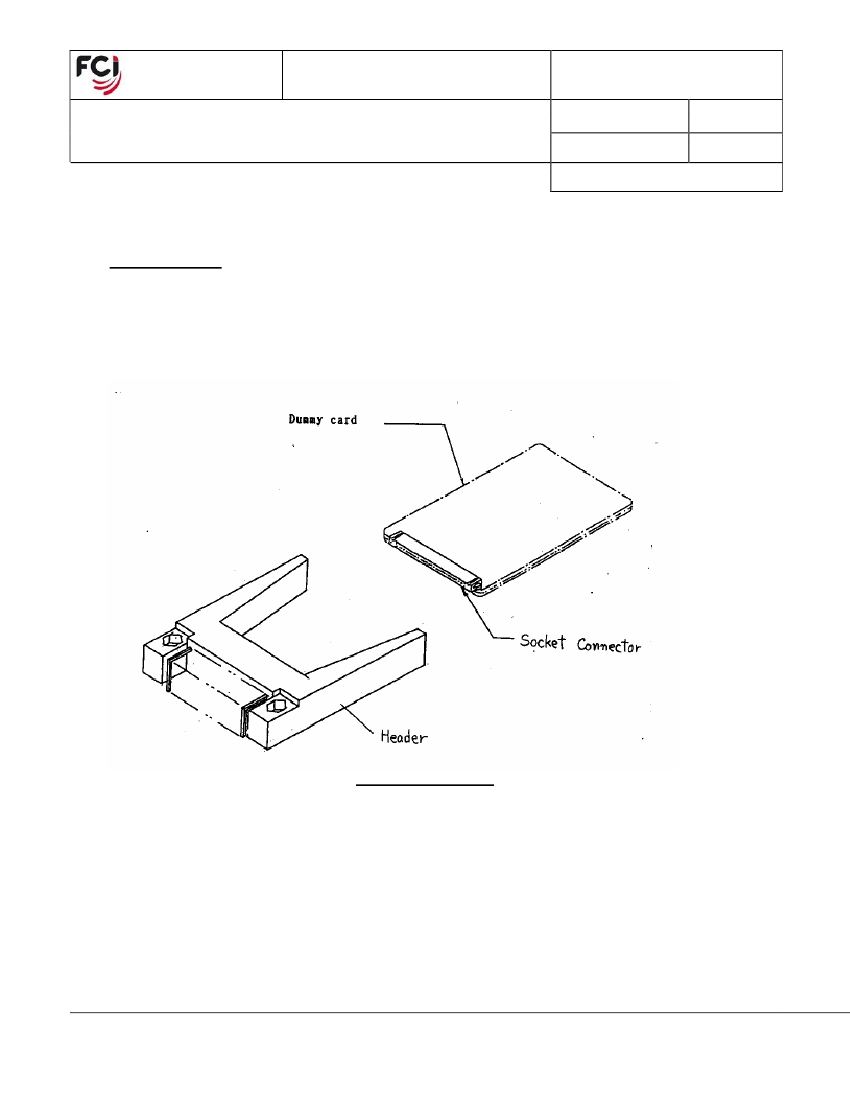

Fig. 5.1 shows a typical construction of the connector.
Fig. 5.1 Construction
Copyright FCI 2009
Form E-3334
Rev F
GS-01-001
eDOC -
PDM: Rev:D
STATUS:
Released
Printed: Nov 22, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
110-263
REVISION
68POS. Memory Card Connectors based on JEIDA Ver4.1/PCMCIA
3 of 13
AUTHORIZED BY
D
DATE
Miao SH
5/12/09
CLASSIFICATION
Unrestricted
6.0
PERFORMANCE
Unless otherwise noted, the performance of connectors given in the attached list
Shall satisfy the values specified in Table 5.1. The performance test shall
follow the sequence given in Table 5.2. under the environmental condition(JIS
C0010) listed below. All connectors to be tested shall be free of defects such as
burr, flaw, void, chip, blister, pinhole, or sharp edge, which affect the life and
Application of the connector.
¡
Temperature -----15 – 35
Humidity
Pressure
6.1 performance
-----25 – 85 %
-----86 – 106 kPa(860 – 1060kPa)
Table 6.1.Performance
Copyright FCI 2009
Form E-3334
Rev F
GS-01-001
eDOC -
PDM: Rev:D
STATUS:
Released
Printed: Nov 22, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
110-263
REVISION
68POS. Memory Card Connectors based on JEIDA Ver4.1/PCMCIA
4 of 13
AUTHORIZED BY
D
DATE
Miao SH
5/12/09
CLASSIFICATION
Unrestricted
0
#
$
!
#
$
&
0 #
1
#
#
,
,
&
*
$
£
/
!
+
#
+ (#
(#
#
$
#
¢
#
$
$
+ %
$
$
#
$
¢
$
$
#
$
¢
) $
&
#
$
-)+
¢
0$
#
$
-
!
)
(
#
%
$
#
Copyright FCI 2009
Form E-3334
Rev F
eDOC -
PDM: Rev:D
STATUS:
¢
(
% #
¢
$
¢
!
!
()
¢
$
¢
!
"
#
#
% #
# $
#
#
(
, $
#
#
$
&
'(
'%
#
,
-
&
.
'/
'"
#
$
&
'
'2
)
''
#
$
&
#
GS-01-001
Released
Printed: Nov 22, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
110-263
REVISION
68POS. Memory Card Connectors based on JEIDA Ver4.1/PCMCIA
5 of 13
AUTHORIZED BY
D
DATE
Miao SH
5/12/09
CLASSIFICATION
Unrestricted
1 &$
4
#
#
¤
¤
% #
% #
1,
&
1%
,
+
¤
¤
$
#
$
#
$
#
$
)
#
)
$
)
$
)
$
)
$
&
&
#
#
$
$
$
$
&
$ $
#
$
-)
$
#
$
+
+
'3
'5
+
'(
% #
% #
$
&
' ((
$
+
+
$
,
#
,
#
$
. +
$
#
,
$
0
0
#
$
0 #
+
$
Copyright FCI 2009
$
$
$
)
$
+
(
$
-
#
#
&
&
0$ $ &
% #
#
# $
" -&
6 7 23-& !
*
" -&
( &#
(
-& #
-& #
+ $
$
+
*
¤
6 7 23-&
!
*
$
' ('
0
$
-
$
-
$ $
'%
#
' (3
' (5
,
Form E-3334
Rev F
eDOC -
PDM: Rev:D
¤
)$ $ &
$
+ % #
¤
)$ $ &
$
+ % #
#
#
$
' (%
#
#
# &
& $
$
' (/
)
' ("
$
+
'(
' (2
GS-01-001
STATUS:
Released
Printed: Nov 22, 2010
.
