DDA-CJS-RS2-1: DescriptionSingle Color LED, Amber, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size1MB，16 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/; Environmental Compliance

Download Datasheet Parametric View All

DDA-CJS-RS2-1 Overview

Single Color LED, Amber, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DOMINANT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	AMBER
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.45 V
Nominal luminous intensity	180.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL
peak wavelength	615 nm
Maximum reverse voltage	5 V
shape	ROUND
surface mount	YES
Terminal pitch	3 mm
perspective	120 deg
Base Number Matches	1

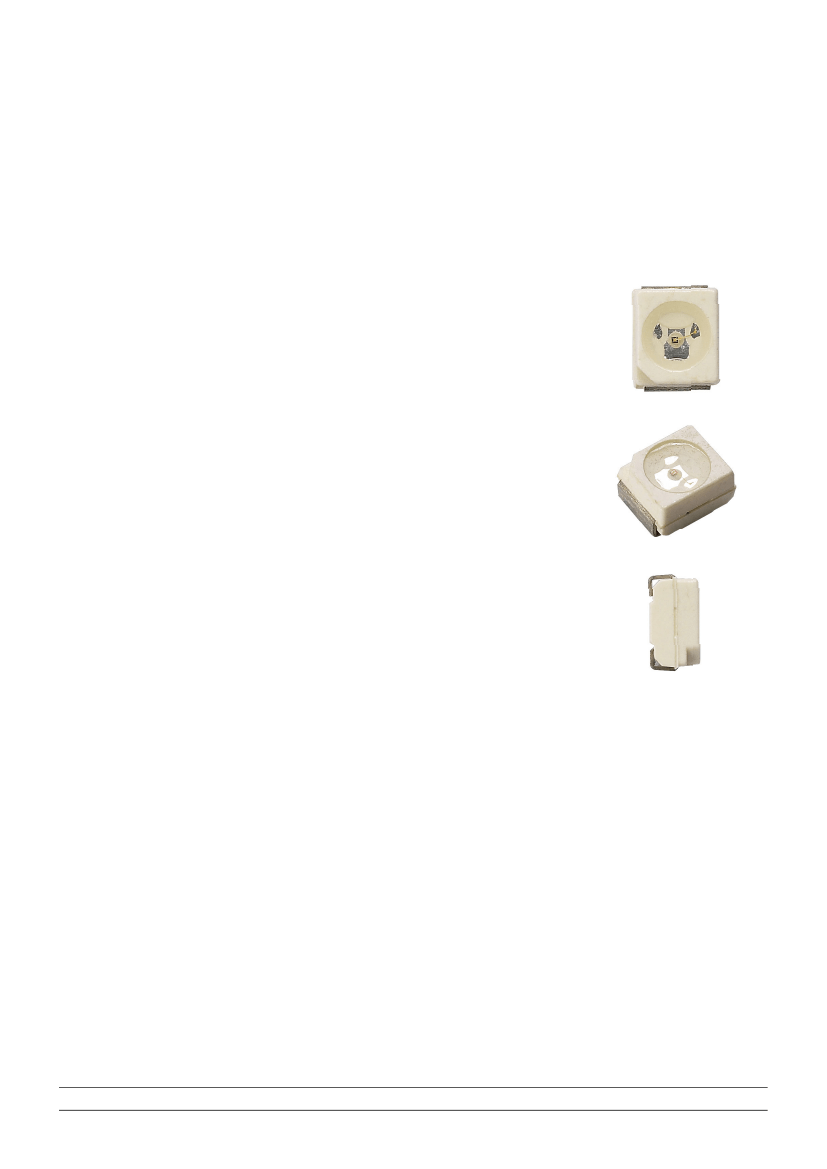

DOMINANT

Innovating Illumination

DATA SHEET:

Opto Technologies

DomiLED

AlInGaP : DDx-xJS

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

High brightness surface mount LED.

120° viewing angle.

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Environmental friendly; RoHS compliance.

Applications:

Automotive: interior applications, eg: switches, telematics,

climate control system, dashboard, etc.

Consumer appliances: LCD illumination as in PDAs, LCD TV.

Communication: indicator and backlight in mobilephone.

Display: full color display video notice board.

Industrial: white goods (eg: Oven, microwave, etc.).

03/01/2013 V20.0
