TVR1B/G/J
PRV : 100 - 600 Volts
Io : 0.5 Ampere
FEATURES :
*
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
Pb / RoHS Free
FAST RECOVERY
RECTIFIER DIODES
DO - 41
0.107 (2.7)
0.080 (2.0)
1.00 (25.4)
MIN.
0.205 (5.2)
0.166 (4.2)
MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.339 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum Average Forward Current
Maximum Peak One Cycle Surge Forward Current
( Non-repetitive )
Maximum Peak Forward Voltage at I
F
= 0.5 A
Maximum Repetitive Reverse Current at V
RRM
Maximum Reverse Recovery Time
Junction Temperature Range
Storage Temperature Range
Notes :
SYMBOL
V
RRM
I
F(AV)
I
FSM
V
F
I
RRM
Trr(1)
Trr(2)
TVR1B
100
TVR1G
400
0.5
10 (50 Hz)
1.2
10
300 (Typ.)
75
- 40 to + 125
- 40 to + 125
TVR1J
600
UNIT
V
A
A
V
µA
ns
ns
°C
°C
T
J
T
STG
( 1 ) Reverse Recovery Test Conditions : I
F
= 100 mA, I
R
= 100 mA.
( 2 ) Reverse Recovery Test Conditions : I
F
= 0.5 A, I
R
= 1.0 A, Irr = 0.25 A.
Page 1 of 2
Rev. 02 : March 25, 2005

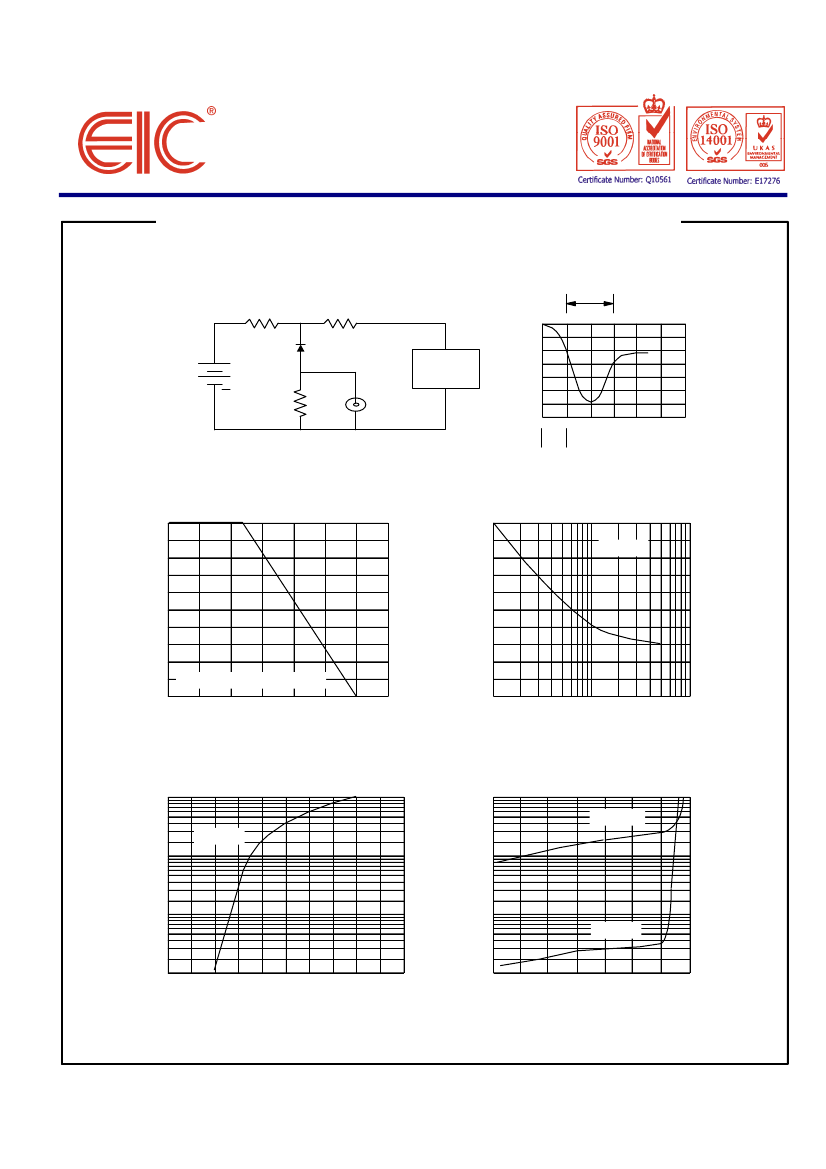

RATING AND CHARACTERISTIC CURVES ( TVR1B/G/J )
FIG.1 - REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
50
Ω
10
Ω
+ 0.5
D.U.T.
50 Vdc
(approx)
1
Ω
PULSE
GENERATOR
( NOTE 2 )
OSCILLOSCOPE
( NOTE 1 )
0
- 0.25
Trr
+
- 1.0 A
SET TIME BASE FOR 25-35 ns/cm
NOTES : 1. Rise Time = 7 ns max., Input Impedance = 1 megaohm, 22 pF.
2. Rise time = 10 ns max., Source Impedance = 50 ohms.
3. All Resistors = Non-inductive Types.
1 cm
FIG.2 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
0.5
10
FIG.3 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
Tj = 25
°C
8
0.4
0.3
6
0.2
4
0.1
RESISTIVE OR INDUCTIVE LOAD
0
0
25
50
75
100
125
150
175
2
0
1
2
4
6
10
20
40
60 100
AMBIENT TEMPERATURE, (
°
C)
FIG.4 - TYPICAL FORWARD CHARACTERISTICS
10
10
NUMBER OF CYCLES AT 50Hz
FIG.5 - TYPICAL REVERSE CHARACTERISTICS
FORWARD CURRENT, AMPERES
T
J
= 100
°C
T
J
= 25
°C
1.0
REVERSE CURRENT,
MICROAMPERES
1.0
0.1
0.1
T
J
= 25
°C
0.01
0.4
0.01
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.1
2.4
0
20
40
60
80
100
120
140
FORWARD VOLTAGE, VOLTS
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 02 : March 25, 2005
