TVR2B/D/G/J
PRV : 100 - 600 Volts
Io : 0.5 Ampere
FEATURES :
*
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
Pb / RoHS Free
FAST RECOVERY
RECTIFIER DIODES
D2
0.161 (4.1)
0.154 (3.9)
1.00 (25.4)
MIN.
0.284 (7.2)
0.268 (6.8)
MECHANICAL DATA :
* Case : D2 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.465 gram
0.034 (0.86)
0.028 (0.71)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum Reverse Voltage (DC)
Maximum Average Forward Current
Maximum Peak One Cycle Surge Forward Current
SYMBOL
V
RRM
V
R
I
F(AV)
TVR2B
100
50
TVR2D
200
100
TVR2G
400
300
0.5
TVR2J
600
500
UNIT
V
V
A
I
FSM
( Non-repetitive )
Maximum Peak Forward Voltage at I
F
= 1.0 A
Maximum Repetitive Reverse Current at V
RRM
Maximum Reverse Recovery Time (Note 1)
Junction Temperature Range
Storage Temperature Range
Notes :
( 1 ) Reverse Recovery Test Conditions : I
F
= 20 mA, I
R
= 1 mA.
30 (50Hz)
A
V
F
I
RRM
Trr
1.4
10
20
- 40 to + 125
- 40 to + 125
V
µA
µs
°C
°C
T
J
T
STG
Page 1 of 2
Rev. 02 : March 25, 2005

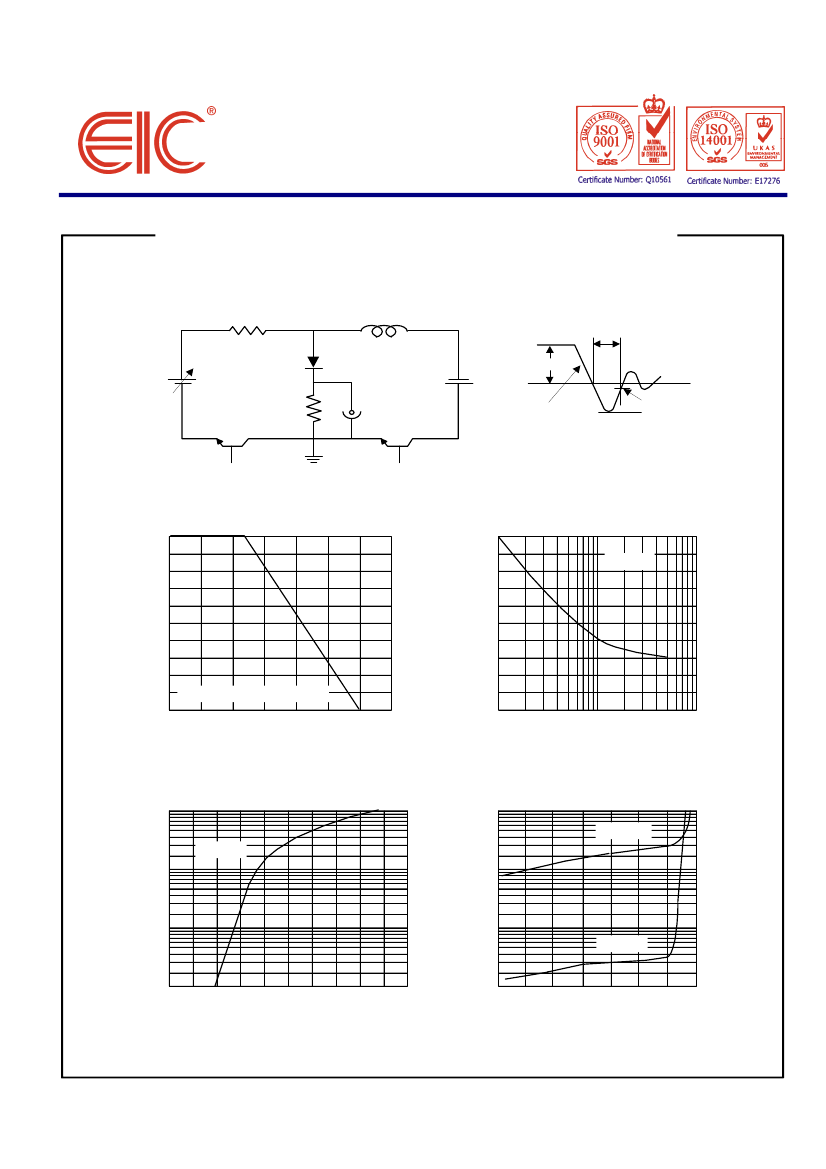

RATING AND CHARACTERISTIC CURVES ( TVR2B/D/G/J )
FIG.1 - REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
R
L
Tr
DUT
V
F
1Ω
Tr 1
50Ω
CRO
Tr 2
V
R
I
FM
di/dt
0.1 x I
RP
I
RP
FIG.2 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
0.5
30
FIG.3 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
Tj = 25
°C
24
0.4
0.3
18
0.2
12
0.1
RESISTIVE OR INDUCTIVE LOAD
0
0
25
50
75
100
125
150
175
6
0
1
2
4
6
10
20
40
60 100
AMBIENT TEMPERATURE, (
°
C)
FIG.4 - TYPICAL FORWARD CHARACTERISTICS
10
10
NUMBER OF CYCLES AT 50Hz
FIG.5 - TYPICAL REVERSE CHARACTERISTICS
FORWARD CURRENT, AMPERES
T
J
= 100
°C
T
J
= 25
°C
1.0
REVERSE CURRENT,
MICROAMPERES
1.0
0.1
0.1
T
J
= 25
°C
0.01
0.4
0.01
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.1
2.4
0
20
40
60
80
100
120
140
FORWARD VOLTAGE, VOLTS
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 02 : March 25, 2005
