1594477: DescriptionCircular Metric Connectors RC-07P1N8AG300; CategoryThe connector The connector; File Size53KB，2 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

1594477 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1594477	-	-	View	Buy Now

1594477 Overview

Circular Metric Connectors RC-07P1N8AG300

1594477 Parametric

Parameter Name	Attribute value
Maker	PHOENIX CONTACT
Reach Compliance Code	unknown
Connector type	CIRCULAR CONNECTOR

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/hq/products/1594477

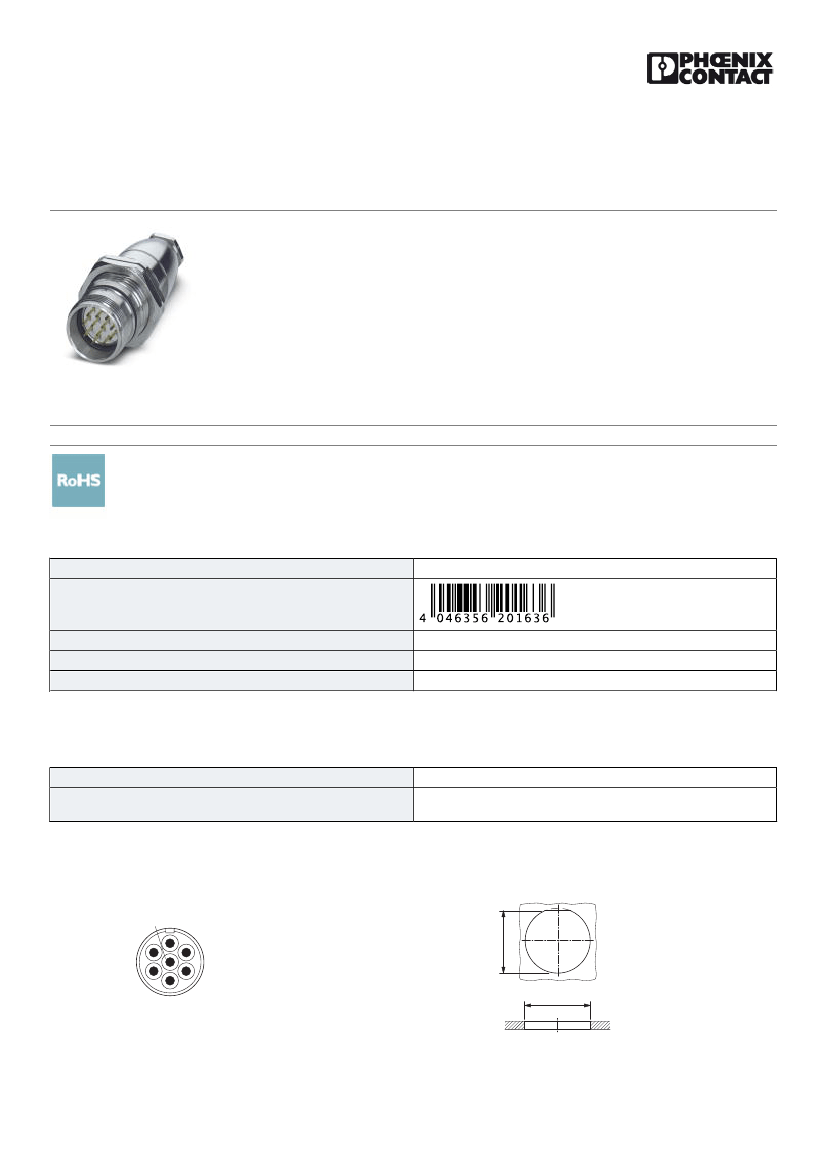

RC-07P1N8AG300 - 1594477

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Rear panel feed-through, with Pg13.5 connection thread, straight, shielded: No, Screw locking, M23, Number

of positions: 7, Type of contact: Male connector, Crimp connection, Axial O-ring, Central fixing, Panel

thickness max.: 6.5 mm

The figure shows the 12-pos.

product version, with standard DIN

cable gland

Key Commercial Data

Packing unit

GTIN

Custom tariff number

Note

4046356201636

85366990

Made to Order (non-returnable)

10 STK

Technical data

Environmental Product Compliance

China RoHS

Environmentally Friendly Use Period = 50

For details about hazardous substances go to tab “Downloads”,

Category “Manufacturer's declaration”

Drawings

Schematic diagram

6

5

Dimensional drawing

N

7

1

4

3

PO

2

24+0,1

Ø25+0,1

max. 6,5mm

11/14/2016 Page 1 / 2
