660-005M14S6-01 datasheet, PDF

Datasheet> All Categories > The connector> 660-005M14S6-01

660-005M14S6-01: DescriptionCircular MIL Spec Tools, Hardware & Accessories RCEPT CVR #8SASH CHN CRES PASS EYELET; CategoryThe connector; File Size114KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

660-005M14S6-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	660-005M14S6-01	-	-	View	Buy Now

660-005M14S6-01 Overview

Circular MIL Spec Tools, Hardware & Accessories RCEPT CVR #8SASH CHN CRES PASS EYELET

660-005M14S6-01 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Tools, Hardware & Accessories
RoHS	Details
Product	Accessories
Type	Receptacle Cover
Factory Pack Quantity	1

Preview

Download Datasheet

View All

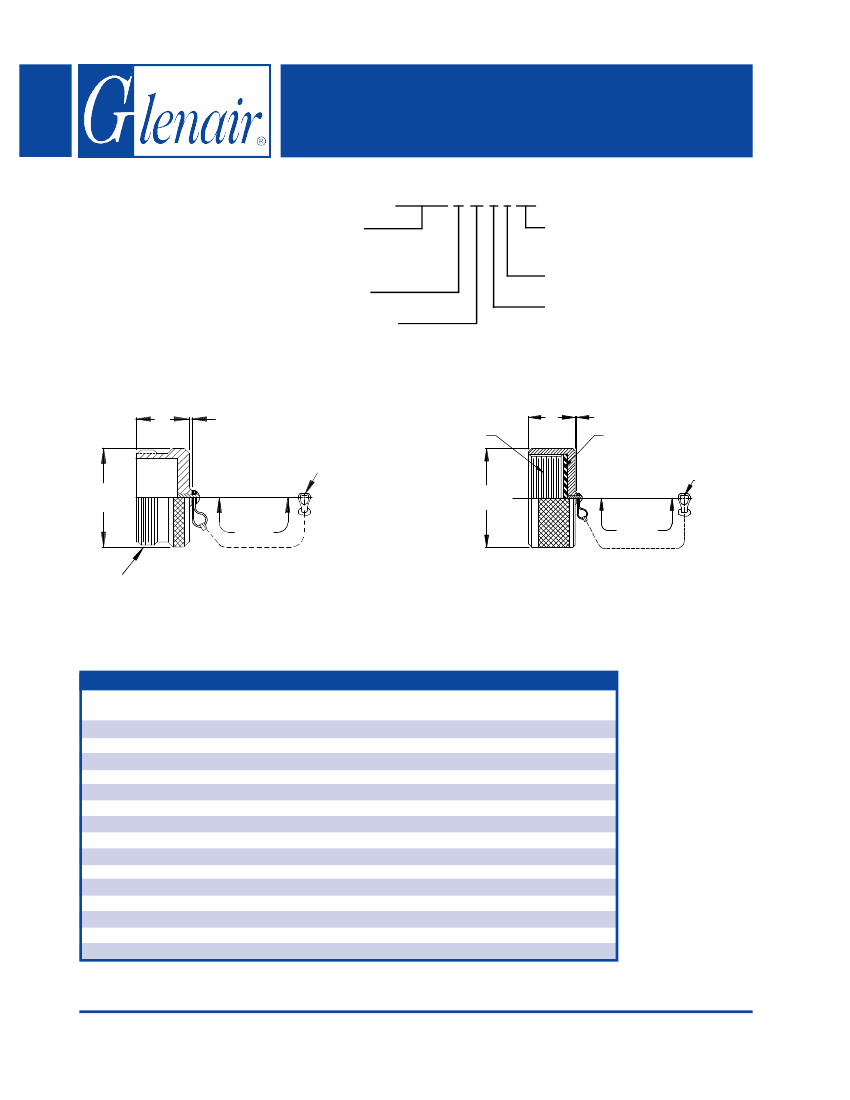

66 & 78

MIL-C-5015

.047 (1.2) Max

Length

E Thread

660-004 (Plug) - 660-005 (Receptacle)

Protective Covers

MIL-C-5015

660-004 M 20 S 6 -04

Basic Part No.

660-004 Plug

660-005 Receptacle

Finish (Table II)

Attachment Type (Table III)

Shell Size (Table X)

Ring or Eyelet Dash No.

(Tables IV, V, VI, VII)

Attachment Length (in inches)

E Thread

.047 (1.2) Max

Gasket

Attachment Type

(Table III)

Attachment Type

(Table III)

Length

660-004 Plug Cover

660-005 Receptacle Cover

Shell

Size

TABLE X: SHELL SIZE DIMENSIONS

Thread

Max

1/2 - 28 UNEF

.562 (14.3) .656 (16.7)

.688 (17.5)

5/8 - 24 UNEF

.687 (17.4) .656 (16.7)

.815 (20.7)

3/4 - 20 UNEF

.812 (20.6) .844 (21.4) 1.000 (25.4)

7/8 - 20 UNEF

.937 (23.8) .844 (21.4) 1.125 (28.6)

1 - 20 UNEF 1.062 (27.0) .844 (21.4) 1.188 (30.2)

1 1/8 - 18 UNEF 1.187 (30.1) .844 (21.4) 1.344 (34.1)

1 1/4 - 18 UNEF 1.312 (33.3) .844 (21.4) 1.469 (37.3)

1 3/8 - 18 UNEF 1.437 (36.5) .844 (21.4) 1.594 (40.5)

1 1/2 - 18 UNEF 1.562 (39.7) .844 (21.4) 1.719 (43.7)

1 3/4 - 18 UNS

1.812 (46.0) .844 (21.4) 1.969 (50.0)

2 - 18 UNS

2.062 (52.4) .844 (21.4) 2.219 (56.4)

2 1/4 - 16 UN

2.312 (58.7) .844 (21.4) 2.469 (62.7)

2 1/2 - 16 UN

2.562 (65.1) .844 (21.4) 2.719 (69.1)

2 3/4 - 16 UN

2.812 (71.4) .844 (21.4) 2.969 (75.4)

3 - 16 UN

3.062 (77.8) .844 (21.4) 3.188 (81.0)

Max

.465 (11.8)

.531 (13.5)

See inside back

cover fold-out or

page 14 for

Table II.

Metric dimensions

(mm) are indicated in

parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 66 and 78 - Page 2
