DDY-GJS-DE2-1-I2 datasheet, PDF

DDY-GJS-DE2-1-I2: DescriptionSingle Color LED, Yellow, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size970KB，13 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DDY-GJS-DE2-1-I2 Overview

Single Color LED, Yellow, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT PACKAGE-2

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DOMINANT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Nominal luminous intensity	0.72 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL
shape	ROUND
surface mount	YES
Terminal pitch	3 mm
perspective	120 deg
Base Number Matches	1

DOMINANT

Innovating Illumination

DATA SHEET:

Opto Technologies

DomiLED

GaP : DDx-GJS-I2

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

Surface mount LED.

120° viewing angle.

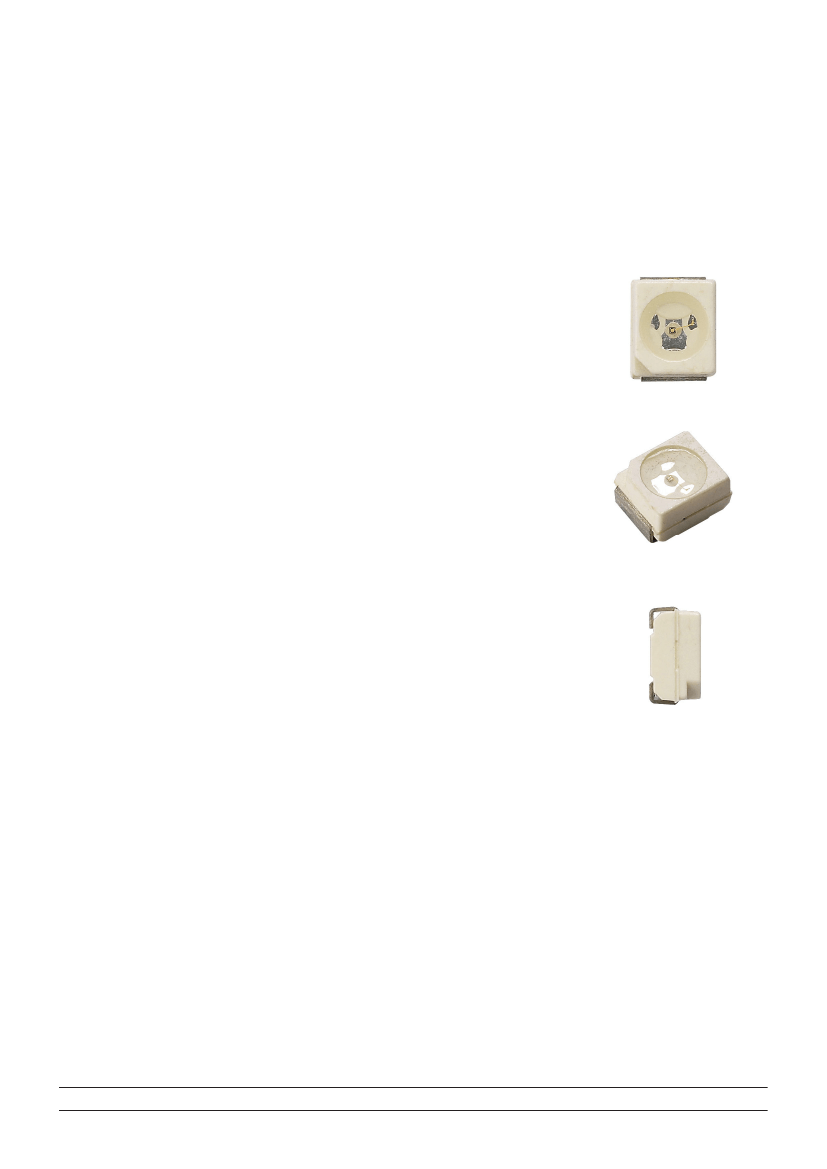

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Environmental friendly; RoHS compliance.

Applications:

Automotive: interior applications, eg: switches, telematics,

climate control system, dashboard, etc.

Consumer appliances: LCD illumination as in PDAs, LCD TV.

Communication: indicator and backlight in mobilephone.

Display: full color display video notice board.

Industrial: white goods (eg: Oven, microwave, etc.).

30/03/2012 V4.0

	DDY-GJS-DE2-1-I2	DDO-GJS-DE2-1-I2	DDG-GJS-EF2-1-I2
Description	Single Color LED, Yellow, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT PACKAGE-2	Single Color LED, Orange, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT PACKAGE-2	Single Color LED, Green, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT PACKAGE-2
Is it Rohs certified?	conform to	conform to	conform to
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown
Other features	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED
color	YELLOW	ORANGE	GREEN
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A
Nominal luminous intensity	0.72 mcd	0.72 mcd	1.1 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.75 mm	1.75 mm	1.75 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
shape	ROUND	ROUND	ROUND
surface mount	YES	YES	YES
Terminal pitch	3 mm	3 mm	3 mm
perspective	120 deg	120 deg	120 deg
Base Number Matches	1	1	1
Maker	DOMINANT	DOMINANT	-
