D-Sub

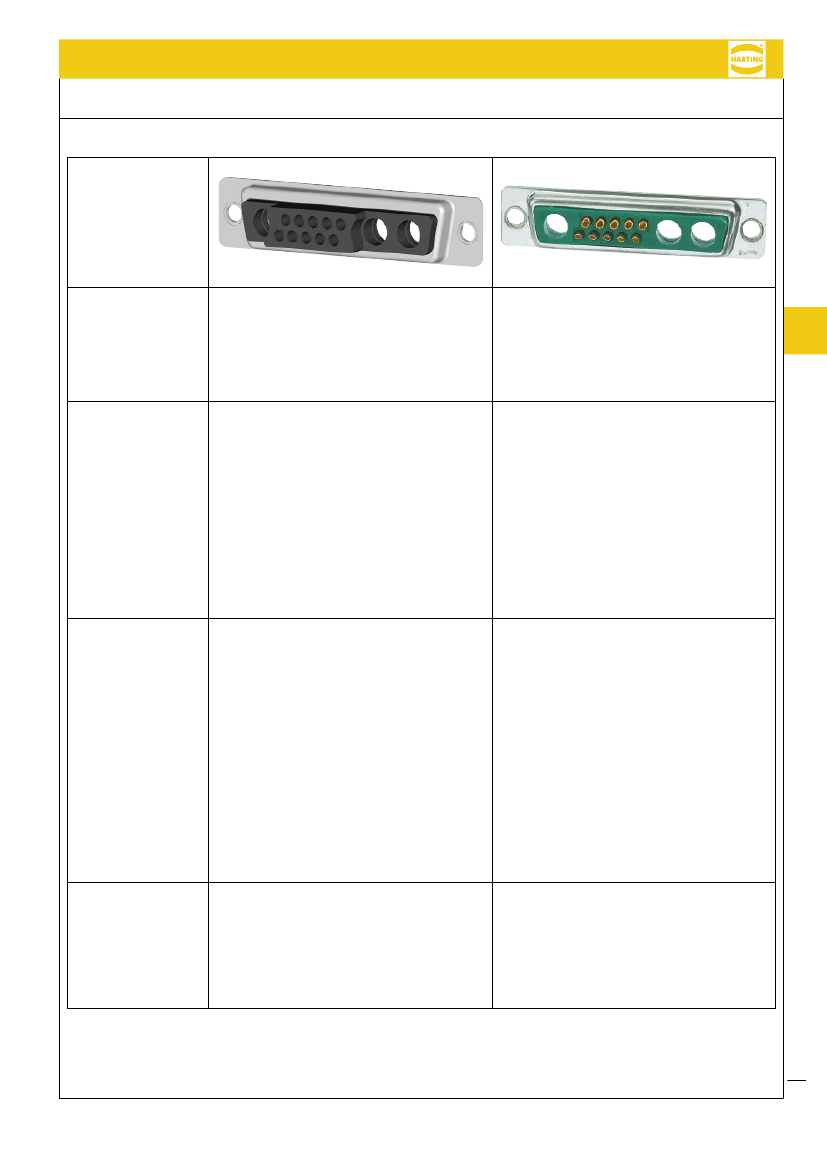

Connectors for cable applications – general information
Two termination processes are available: crimp or solder
Shell
Signal contacts
Crimp termination
●
For wire gauge: AWG 20-24 or 26-28
●
Plating: 0.76 µm or 0.2 µm Au over Ni
●
Pre-mounted solder cup contacts
Plating: 0.76 µm or 0.1 µm Au over Ni
Power contacts
Crimp
●
Rating: 10, 20, 30, 40 A
●
Plating:
Mating side
0.76 µm or 0.2 µm Au
Terminating side 0.2 µm Au
Solder cup
●
Rating: 10, 20, 30, 40 A
●
Plating:
Mating side
0.76 µm or 0.2 µm Au
Terminating side 0.2 µm Au or 5 µm Sn
Crimp
●
Rating: 10, 20, 30, 40 A
●
Plating:
Mating side
0.76 µm or 0.2 µm Au
Terminating side 0.2 µm Au
Solder cup
●
Rating: 10, 20, 30, 40 A
●
Plating:
Mating side
0.76 µm or 0.2 µm Au
Terminating side 0.2 µm Au or 5 µm Sn
Coaxial
contacts
1)
Solder/crimp termination resp.
Crimp/crimp termination
●
0 or 75 Ω
5
●
Plating:
Mating side
1.3 µm or 0.2 µm Au
inner conductor
0.76 µm or 0.2 µm Au
outer ring
Terminating side 1.3 µm or 0.2 µm Au
inner conductor
0.2 µm Au or 5 µm Sn
outer ring
Ferrule
0.2 µm Au or 5 µm Sn
●
Cables: RG 178, 179 …
Solder/crimp termination resp.
Crimp/crimp termination
●
0 or 75 Ω
5
●
Plating:
Mating side
1.3 µm or 0.2 µm Au
inner conductor
0.76 µm or 0.2 µm Au
outer ring
Terminating side 1.3 µm or 0.2 µm Au
inner conductor
0.2 µm Au or 5 µm Sn
outer ring
Ferrule
0.2 µm Au or 5 µm Sn
●
Cables: RG 178, 179 …
High voltage
contacts
Solder termination
●
Plating:
1.3 µm Au over Ni terminating
and mating side
Solder termination
●
Plating:
1.3 µm Au over Ni terminating
and mating side
1)
Coaxial contacts are provided in two versions:
●
Inner conductor soldered and outer part crimped (solder/crimp termination)
●
Both inner and outer part crimped (crimp/crimp termination); this version is recommended for medium or
05
large size volume since crimping is faster than soldering.
53
