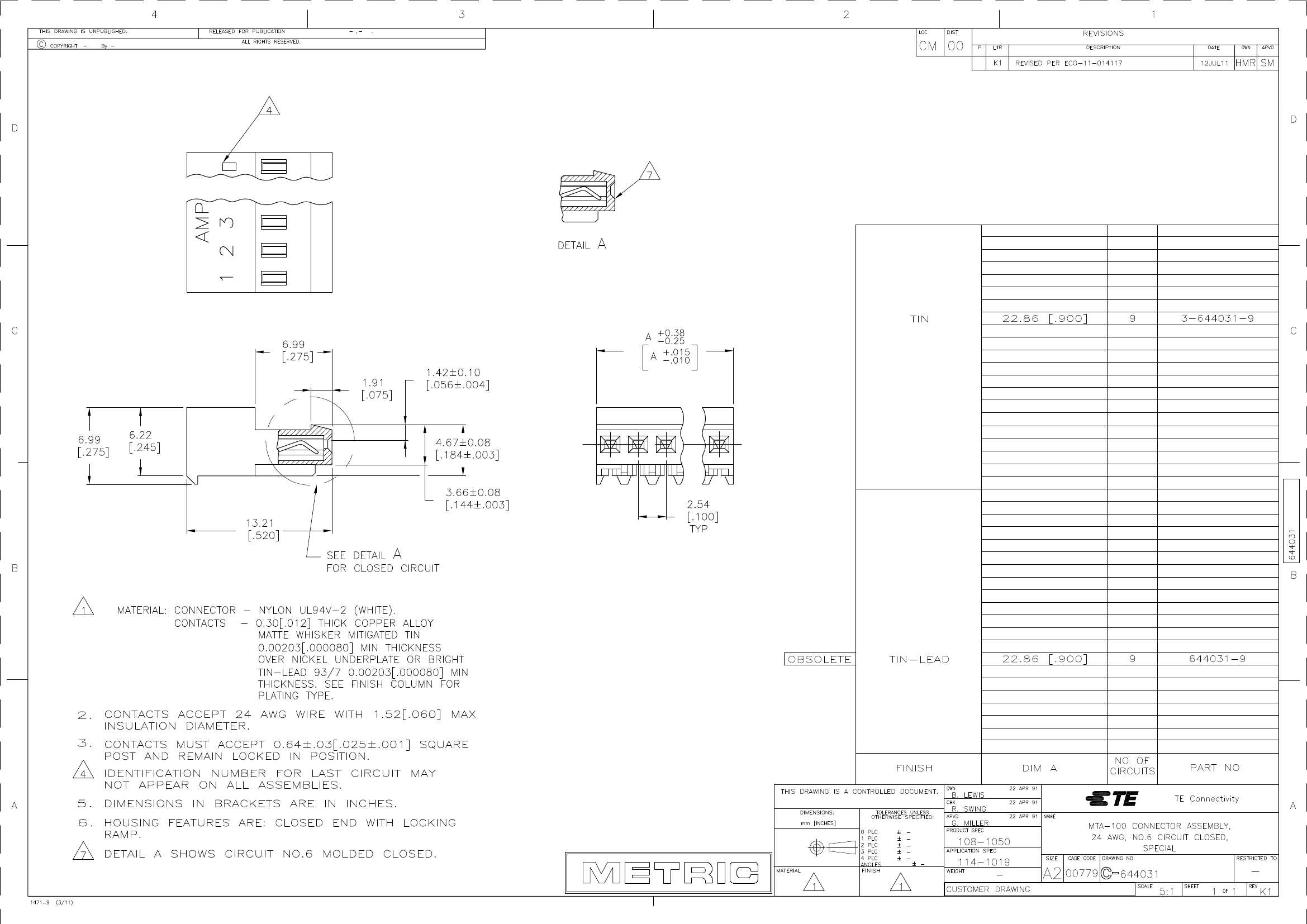

09P MTA100 CONN ASSY W/O#6 SPL
| Parameter Name | Attribute value |
| Connector System | wire to board |
| Sealable | no |
| Connectors and terminals terminate to | Wires and cables |
| Connector type | female end |
| Connector design | closed end |
| stress relief | with |
| Cable type | separate conductor, stranded conductor |
| Number of Positions | 9 |
| Rows | 1 |
| Backwall/Post Interruptions | Without |
| Operating voltage (VAC) | 250 |
| Cable exit angle | 90° |
| Terminal base material | copper alloy |
| Terminal base material | nickel |
| Wire terminal termination area plating materials | tin |
| Terminal contact plating material | tin |
| Terminal contact part plating material surface coating | matte |
| Terminal contact plating thickness | 2.03 – 5.08 µm [ 80 – 200 µin ] |
| Terminal type | socket |
| Contact Current Rating (Max) (A) | 5 |
| Base plate material thickness | .762 µm, 30 µin |
| PCB terminal termination area plating material surface coating | matte |
| PCB terminal termination area plating thickness | 2.03 – 5.08 µm [ 80 – 200 µin ] |
| Plating thickness of wire terminal termination area | 2.03 – 5.08 µm [ 80 – 200 µin ] |
| Surface coating of plating material in wire terminal termination area | matte |
| Terminal layout | Direct plug-in |
| PCB terminal termination area plating materials | tin |
| Cable termination method | Piercing crimping (IDC) |
| Panel mount features | Without |
| Terminal retention type | lock gun |
| PCB mounting alignment | Without |
| joint fixation | with |
| PCB installation and fixation | Without |
| Connector mounting type | Cable installation |
| joint alignment | Without |
| Joint fixation type | lock bevel |
| Terminal positioning force | with |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| Shell color | White |
| Shell material | nylon |
| Insulation diameter | 1.52 mm [ .06 in ] |
| high | 6.99 mm [ .275 in ] |
| length | 5.08 mm [ .2 in ] |
| Cable size (mm²) | .2 |
| Working group temperature range | -55 – 105 °C [ -67 – 221 °F ] |
| Circuit Application | Signal |
| Applicable to | MTA .100 Head |
| UL flammability rating | UL 94V-2 |
| Agencies/Standards | CSA, UL |
| CSA file number | LR7189 |
| CSA rating | verified |
| UL rating | Recognized |
| UL file number | E28476 |
| Encapsulation method | bag/box |
| Package quantity | 500 |
| Comment | Position 6 is molded closed. |
