With Special Insert Arrangement MIL-DTL-38999 Series III
180-073 (07)
Fiber Optic Test Adapter, Receptacle
Test Probes
and Kits
MIL-DTL-38999 test adapter (receptacle)

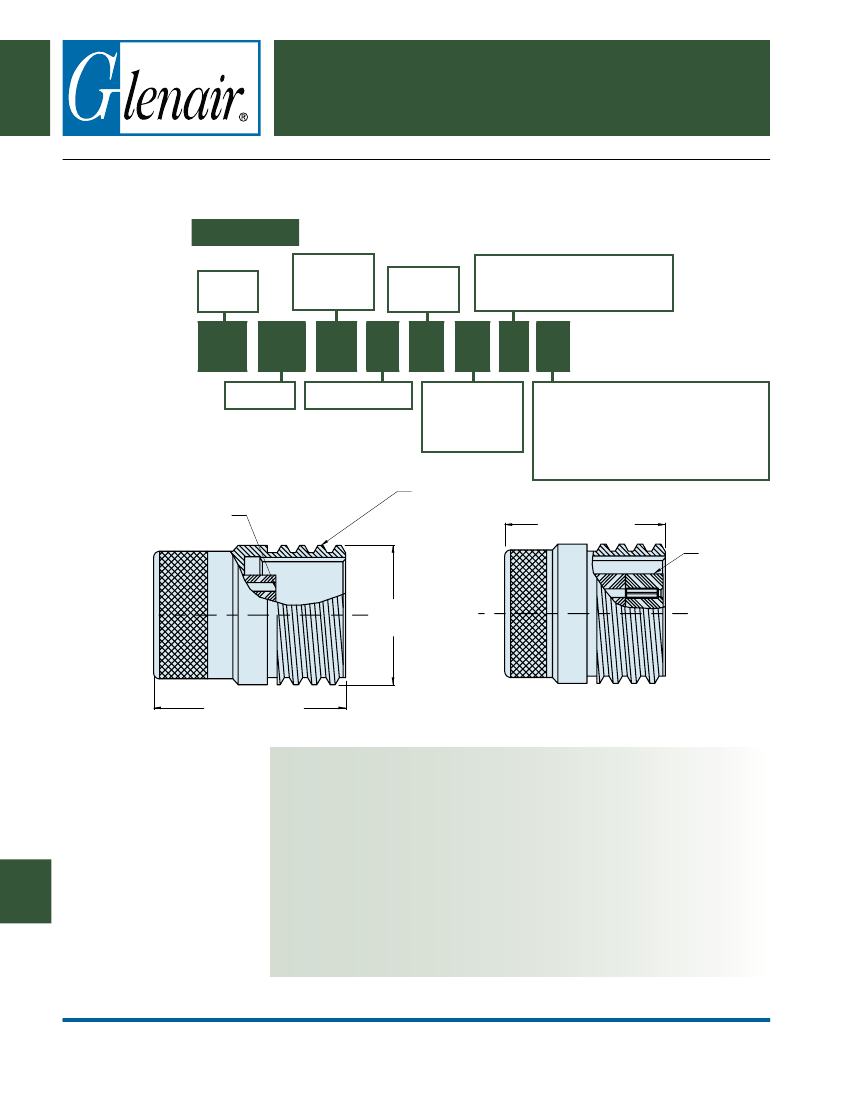

How To Order
Material/
Finish
(Table II)
Shell Size
(Table I)
Insert Type
P
= Pin
S
= Socket (with alignment sleeves
Product
Series
180
-
073 NF 07
-
25
-
24 P
Basic No.
06
=
Plug Adapter
Insert
Arrangement
Per MIL STD-1560
(Table I)
A
Alternate Keying Positions
N, A, B, C, D
&
E
Per MIL-DTL-38999,Series III Omit keying
designator to receive universal single key
(master) only. This option not recommended
for larger shell sizes (19-25)
A Thread
Pin Insert
1.50 (38.1) Max
Socket Insert
ØC
Typ
1.75 (44.5) Max
07
Receptacle Adapter
U.S. PATENT NO. 5,960,137
Material and Finish
Shell: See Table II
Insert: Hi-Grade Engineering Thermoplastic
Alignment Sleeve: Zirconia Ceramic
Retaining Clips: Copper Alloy
Lock Nut: Al Alloy/Anodize
L
Notes
For fiber optic test probe jumper, see Glenair drawing ABC54705
For fiber optic test probe (low profile, probe-to-probe) jumper see Glenair drawing FO03187
25-37 insert cavity spacing too close to probe using one adapter. 2 adapters (25-37A and
25-37B) are required
Shell size 23 for insert 23-66 only is made of 300 series stainless steel
Cavity markings applied to rear insert face only
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-26
E-Mail: sales@glenair.com
With Special Insert Arrangement MIL-DTL-38999 Series III

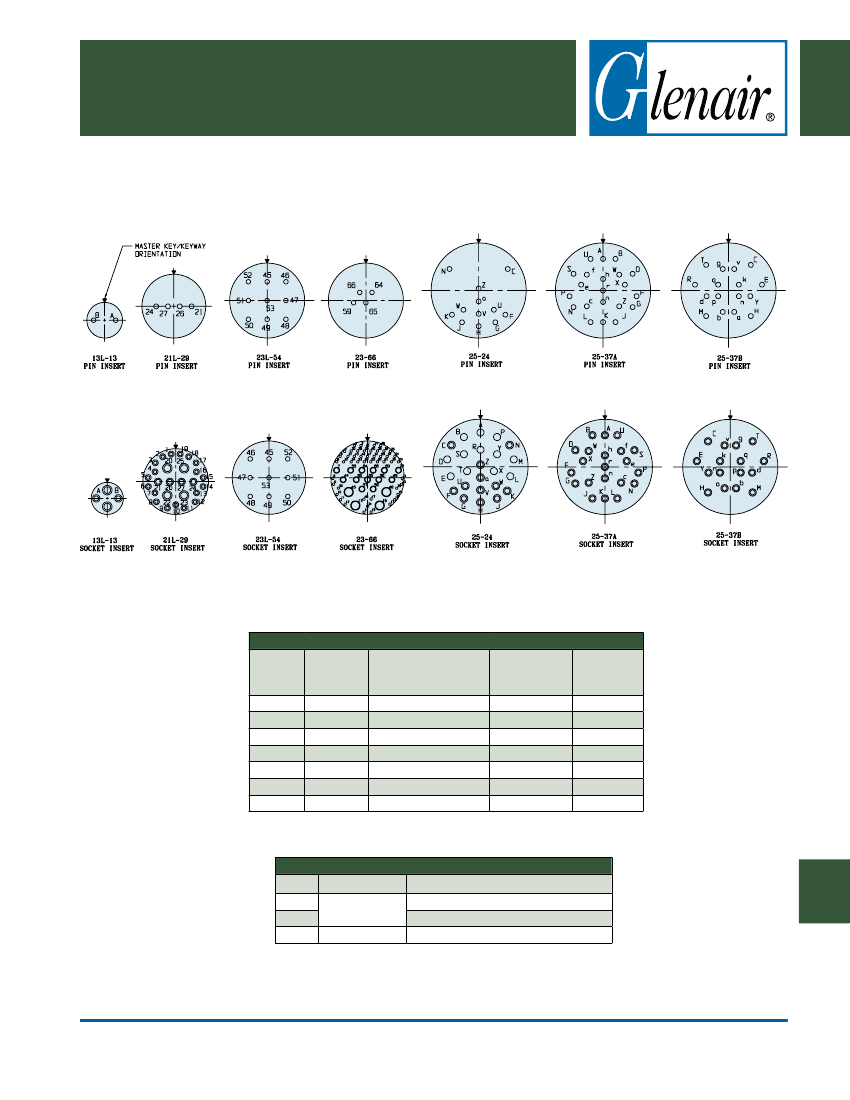

FRONT FACE OF PIN AND SOCKET INSULATORS SHOWN, REAR SURFACE OPPOSITE
Table I: Shell Size and Insert Arrangements
Shell Size
13
21
23
23
25
25
25
Shell Size
Code (Ref)
C
G
H
H
J
J
J
Insert Arrangement
Dash No.
13L-13
21L-29
23L-54
23-66
25-24
25-37A
25-37B
A Thread
0.1P-0.3L-TS-2
.875 (22.2)
1.375 (34.9)
1.500 (38.1)
1.500 (38.1)
1.625 (41.3)
1.625 (41.3)
1.625 (41.3)
ØC
Max
.875 (22.2)
1.375 (34.9)
1.500 (38.1)
1.500 (38.1)
1.625 (41.3)
1.625 (41.3)
1.625 (41.3)
Table II: Finish
Code
M
NF
Z1
Material
Aluminum Alloy
Stainless Steel
Electroless Nickel
Cadmium, Olive Drab
Passivate
Finish
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-27
E-Mail: sales@glenair.com
Test Probes
and Kits
180-073 (07)
Fiber Optic Test Adapter, Receptacle
L
