GS880V37AT: Description256K x 36 9Mb Sync Burst SRAMs; File Size384KB，18 Pages; ManufacturerGSI Technology; Websitehttp://www.gsitechnology.com/

Download Datasheet Compare View All

GS880V37AT Overview

256K x 36 9Mb Sync Burst SRAMs

Preview

Download Datasheet

View All

GS880V37AT-250/225/200

100-Pin TQFP

Commercial Temp

Industrial Temp

Features

• Single Cycle Deselect (SCD) operation

• 1.8 V +10%/–10% core power supply

• 1.8 V I/O supply

• LBO pin for Linear or Interleaved Burst mode

• Internal input resistors on mode pins allow floating mode pins

• Default to Interleaved Pipeline mode

• Byte Write (BW) and/or Global Write (GW) operation

• Internal self-timed write cycle

• Automatic power-down for portable applications

• JEDEC-standard 100-lead TQFP package

256K x 36

9Mb Sync Burst SRAMs

250 MHz–200 MHz

1.8 V V

1.8 V I/O

internally and are controlled by ADV. The burst address

counter may be configured to count in either linear or

interleave order with the Linear Burst Order (LBO) input. The

Burst function need not be used. New addresses can be loaded

on every cycle with no degradation of chip performance.

SCD Pipelined Reads

The GS880V37AT is a SCD (Single Cycle Deselect) pipelined

synchronous SRAM. DCD (Dual Cycle Deselect) versions are

also available. SCD SRAMs pipeline deselect commands one

stage less than read commands. SCD RAMs begin turning off

their outputs immediately after the deselect command has been

captured in the input registers.

Byte Write and Global Write

Byte write operation is performed by using Byte Write enable

(BW) input combined with one or more individual byte write

signals (Bx). In addition, Global Write (GW) is available for

writing all bytes at one time, regardless of the Byte Write

control inputs.

Sleep Mode

Low power (Sleep mode) is attained through the assertion

(High) of the ZZ signal, or by stopping the clock (CK).

Memory data is retained during Sleep mode.

Core and Interface Voltages

The GS880V37AT operates on a 1.8 V power supply. All input

are 1.8 V compatible. Separate output power (V

DDQ

) pins are

used to decouple output noise from the internal circuits and are

1.8 V compatible.

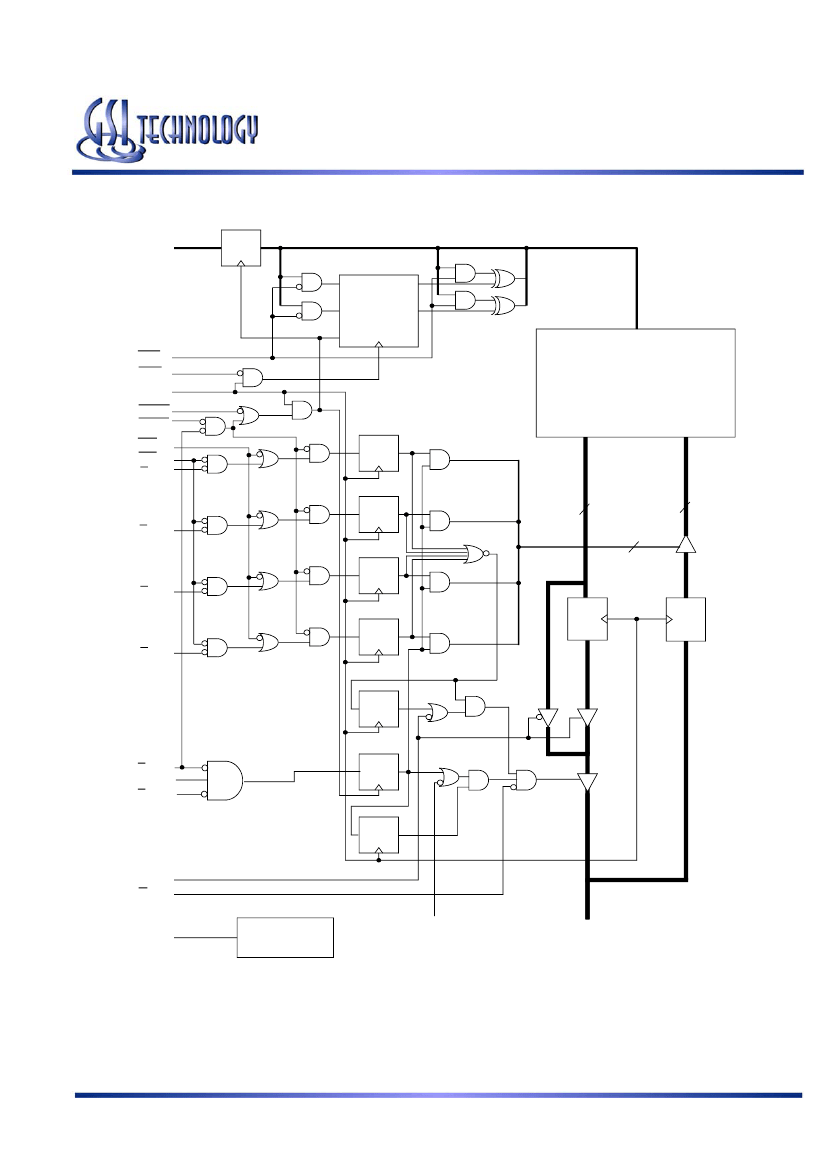

Functional Description

Applications

The GS880V37AT is a 9,437,184-bit high performance

synchronous SRAM with a 2-bit burst address counter.

Although of a type originally developed for Level 2 Cache

applications supporting high performance CPUs, the device

now finds application in synchronous SRAM applications,

ranging from DSP main store to networking chip set support.

Controls

Addresses, data I/Os, chip enables (E1, E2, E3), address burst

control inputs (ADSP, ADSC, ADV), and write control inputs

(Bx, BW, GW) are synchronous and are controlled by a

positive-edge-triggered clock input (CK). Output enable (G)

and power down control (ZZ) are asynchronous inputs. Burst

cycles can be initiated with either ADSP or ADSC inputs. In

Burst mode, subsequent burst addresses are generated

Parameter Synopsis

Pipeline

3-1-1-1

1.8 V

tCycle

Curr

(x36)

-250

2.5

4.0

320

-225

2.7

4.4

295

-200

3.0

5.0

265

Unit

Rev: 1.03 7/2004

1/18

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.

GS880V37AT Related Products

	GS880V37AT	GS880V37AT-225	GS880V37AT-200	GS880V37AT-250	GS880V37AT-225I	GS880V37AT-250I	GS880V37AT-200I
Description	256K x 36 9Mb Sync Burst SRAMs	256K x 36 9Mb Sync Burst SRAMs	256K x 36 9Mb Sync Burst SRAMs	256K x 36 9Mb Sync Burst SRAMs	256K x 36 9Mb Sync Burst SRAMs	256K x 36 9Mb Sync Burst SRAMs	256K x 36 9Mb Sync Burst SRAMs
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	-	GSI Technology	GSI Technology	GSI Technology	GSI Technology	GSI Technology	GSI Technology
Parts packaging code	-	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	-	LQFP,	LQFP,	LQFP,	LQFP,	LQFP,	LQFP,
Contacts	-	100	100	100	100	100	100
Reach Compliance Code	-	compli	compli	compliant	compli	compliant	compli
ECCN code	-	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B
Maximum access time	-	2.7 ns	3 ns	2.5 ns	2.7 ns	2.5 ns	3 ns
Other features	-	PIPELINED ARCHITECTURE	PIPELINED ARCHITECTURE	PIPELINED ARCHITECTURE	PIPELINED ARCHITECTURE	PIPELINED ARCHITECTURE	PIPELINED ARCHITECTURE
JESD-30 code	-	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
length	-	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
memory density	-	9437184 bi	9437184 bi	9437184 bit	9437184 bi	9437184 bit	9437184 bi
Memory IC Type	-	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	-	36	36	36	36	36	36
Humidity sensitivity level	-	3	3	3	3	3	3
Number of functions	-	1	1	1	1	1	1
Number of terminals	-	100	100	100	100	100	100
word count	-	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	-	256000	256000	256000	256000	256000	256000
Operating mode	-	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	-	70 °C	70 °C	70 °C	85 °C	85 °C	85 °C
organize	-	256KX36	256KX36	256KX36	256KX36	256KX36	256KX36
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	LQFP	LQFP	LQFP	LQFP	LQFP	LQFP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE
Parallel/Serial	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Maximum supply voltage (Vsup)	-	2 V	2 V	2 V	2 V	2 V	2 V
Minimum supply voltage (Vsup)	-	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V
Nominal supply voltage (Vsup)	-	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
surface mount	-	YES	YES	YES	YES	YES	YES
technology	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	-	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	-	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
