MAL212314681

Description
Aluminum Electrolytic Capacitors - Leaded 680uF 10V 12,9x32,0mm 125 C 20000h
CategoryPassive components    capacitor
File Size170KB,12 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

MAL212314681 Online Shopping

Suppliers Part Number Price MOQ In stock
MAL212314681 - - View Buy Now

MAL212314681 Overview

Aluminum Electrolytic Capacitors - Leaded 680uF 10V 12,9x32,0mm 125 C 20000h

MAL212314681 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?incompatible
MakerVishay
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance680 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter12.9 mm
dielectric materialsALUMINUM (DRY/SOLID)
ESR550 mΩ
leakage current0.34 mA
length32 mm
Manufacturer's serial number123SAL-A
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
Package formAxial
method of packingAMMO PACK
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)10 V
ripple current570 mA
series123 SAL-A
surface mountNO
Delta tangent0.18
Terminal shapeWIRE
End of Life. Last Available Purchase Date is 30-December-2015

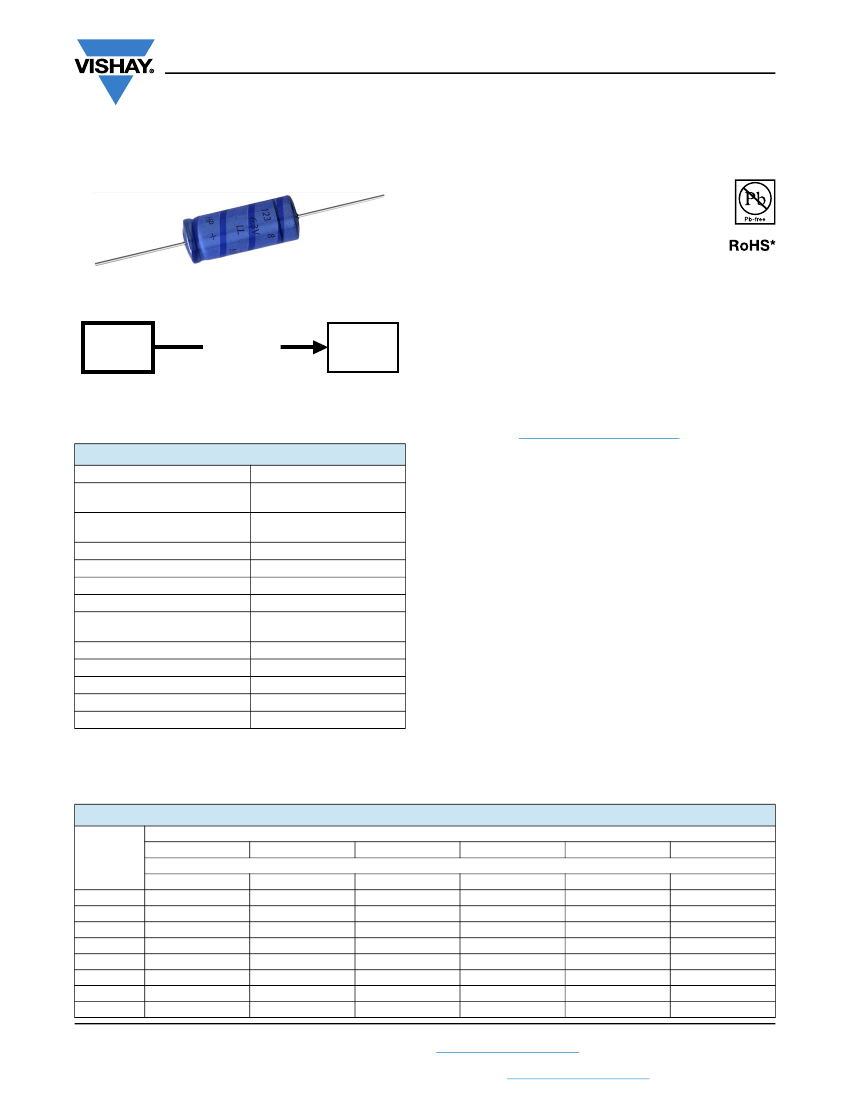

123 SAL-A
www.vishay.com
Vishay BCcomponents
Aluminum Capacitors
Solid Axial
FEATURES
• Polarized aluminum electrolytic capacitors,
solid electrolyte MnO
2
Available
• Axial leads, aluminum case, ceramic seal, blue
insulation sleeve
Available
• SAL-A: standard version
• SAL-AG: epoxy filled shock-proof version up to 10 000 g
• Extremely long useful life: 20 000 h at 125 °C
• Extended high temperature range up to 200 °C
• Excellent low temperature impedance and ESR behavior
• Charge and discharge proof, application with
0
resistance allowed
• Reverse DC voltage up to 0.3 x U
R
allowed
• AC voltage up to 0.8 x U
R
allowed
• Advanced technology to achieve high reliability and high
stability
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
123
SAL-A
Radial higher
CV/volume
Fig. 1
128
SAL-RPM
QUICK REFERENCE DATA
DESCRIPTION
Maximum case size
(Ø D x L in mm)
Rated capacitance range
(E6 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Useable temperature range
Endurance test at 155 °C
and 125 °C
Useful life at 125 °C
Useful life at 40 °C, I
R
applied
Shelf life at 0 V, 125 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
6.7 x 15.3 to 12.9 x 32.0
1.0 μF to 1000 μF
± 20 %; ± 10 % on request
6.3 V to 40 V
- 55 °C to + 125 °C
- 80 °C to + 200 °C
5000 h and 8000 h
20 000 h
450 000 h
500 h
IEC 60384-4/EN130300
55/125/56
APPLICATIONS
• EDP, telecommunication, industrial high temperature,
automotive, military and space
• Smoothing, filtering, buffering, timing
• For power supplies, DC/DC converters
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M = ± 20 %, K = ± 10 %)
• Rated voltage (in V) at corresponding maximum
temperature
• Date code in accordance with IEC 60062
• Name of manufacturer
• Code for factory of origin
• Band to indicate the negative terminal
• “+” sign to identify the positive terminal
• Series number
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT MAXIMUM CASE SIZES
(Ø D x L in mm)
C
R
(μF)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
Revision: 14-Aug-15
6.3
6.3
-
-
-
-
-
-
-
-
10
10
-
-
-
-
-
-
-
-
U
R
(V) AT T
amb
= 85 °C
16
25
U
C
(V) AT T
amb
= 125 °C
16
25
-
-
-
-
-
-
-
-
-
-
-
-
6.7 x 15.3
6.7 x 15.3
6.7 x 15.3
6.7 x 15.3
35
25
6.7 x 15.3
6.7 x 15.3
6.7 x 15.3
6.7 x 15.3
6.7 x 15.3
6.7 x 15.3
7.6 x 20.4
7.6 x 20.4
40
25
-
-
6.7 x 15.3
6.7 x 15.3
6.7 x 15.3
6.7 x 15.3
7.6 x 20.4
7.6 x 20.4
Document Number: 28355
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
